Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

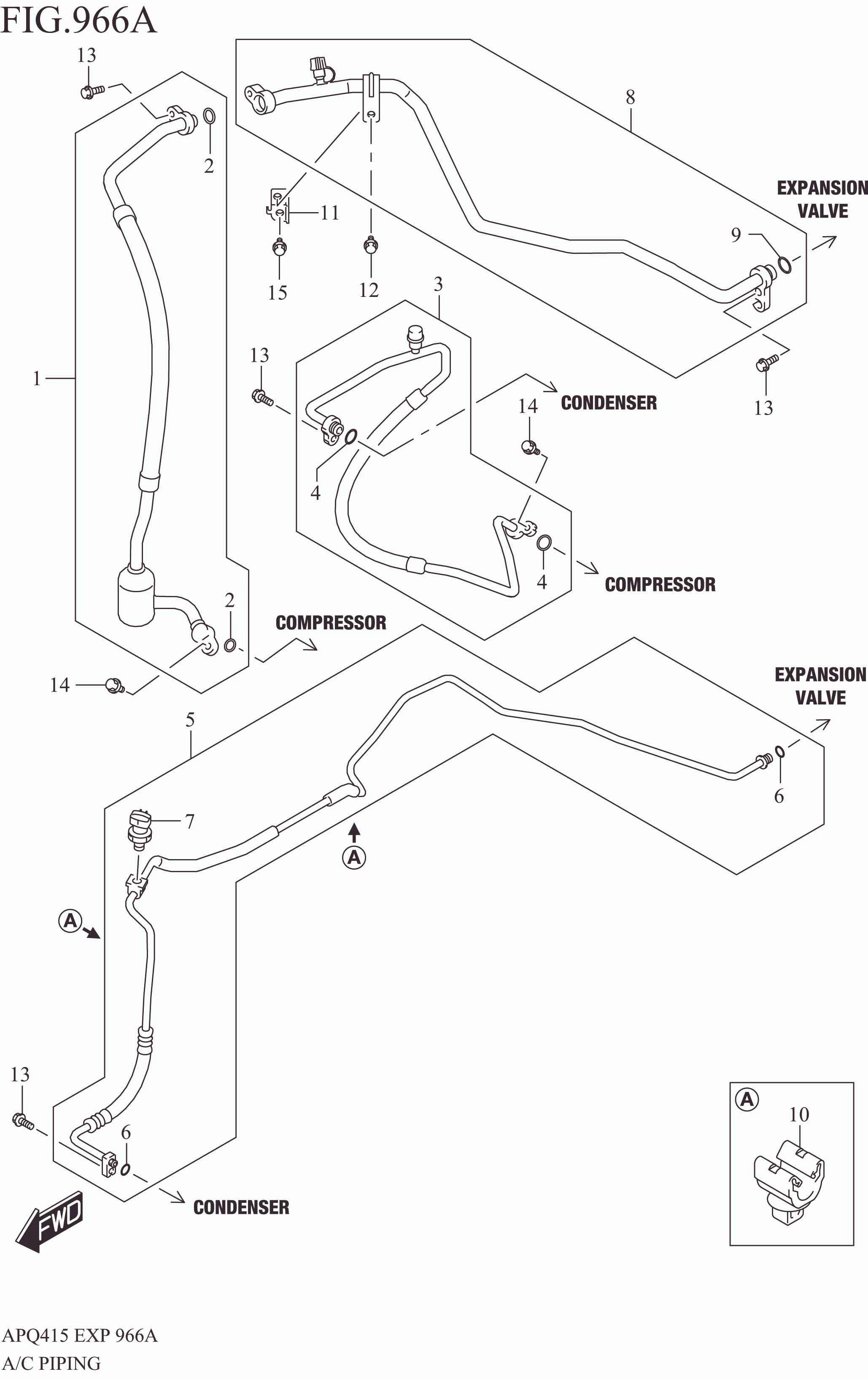

A/C PIPING

A/C PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 95710M76T00-000 HOSE, SUCTION 1 Rp633.500
2 95896-50G00-000 .O RING (D:2.4,ID:13.4) 2 Rp19.000
3 95720M76T00-000 HOSE, DISCHARGE 1 Rp458.500
4 95895-50G00-000 .O RING (D:2.4,ID:10.8) 2 Rp12.500
5 95731M76T00-000 HOSE, LIQUID 1 Rp951.500
6 95891-50G00-000 .O RING (D:1.8,ID:6.7) 2 Rp12.500
7 95546M74L00-000 .SENSOR, PRESSURE 1 Rp675.500
8 95741M76T00-000 PIPE, SUCTION 1 Rp370.000
9 95896-50G00-000 .O RING (D:2.4,ID:13.4) 1 Rp19.000
10 95761M65M00-000 CLAMP, LIQUID PIPE 2 Rp8.000
11 95781M65M00-000 STAY, SUCT PIPE 1 Rp9.000
12 01550-0610B-000 BOLT 1 Rp3.000
13 01550-0620C-000 BOLT 4 Rp5.500
14 01550-0620C-000 BOLT 2 Rp5.500
15 02162-0612A-000 SCREW 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
