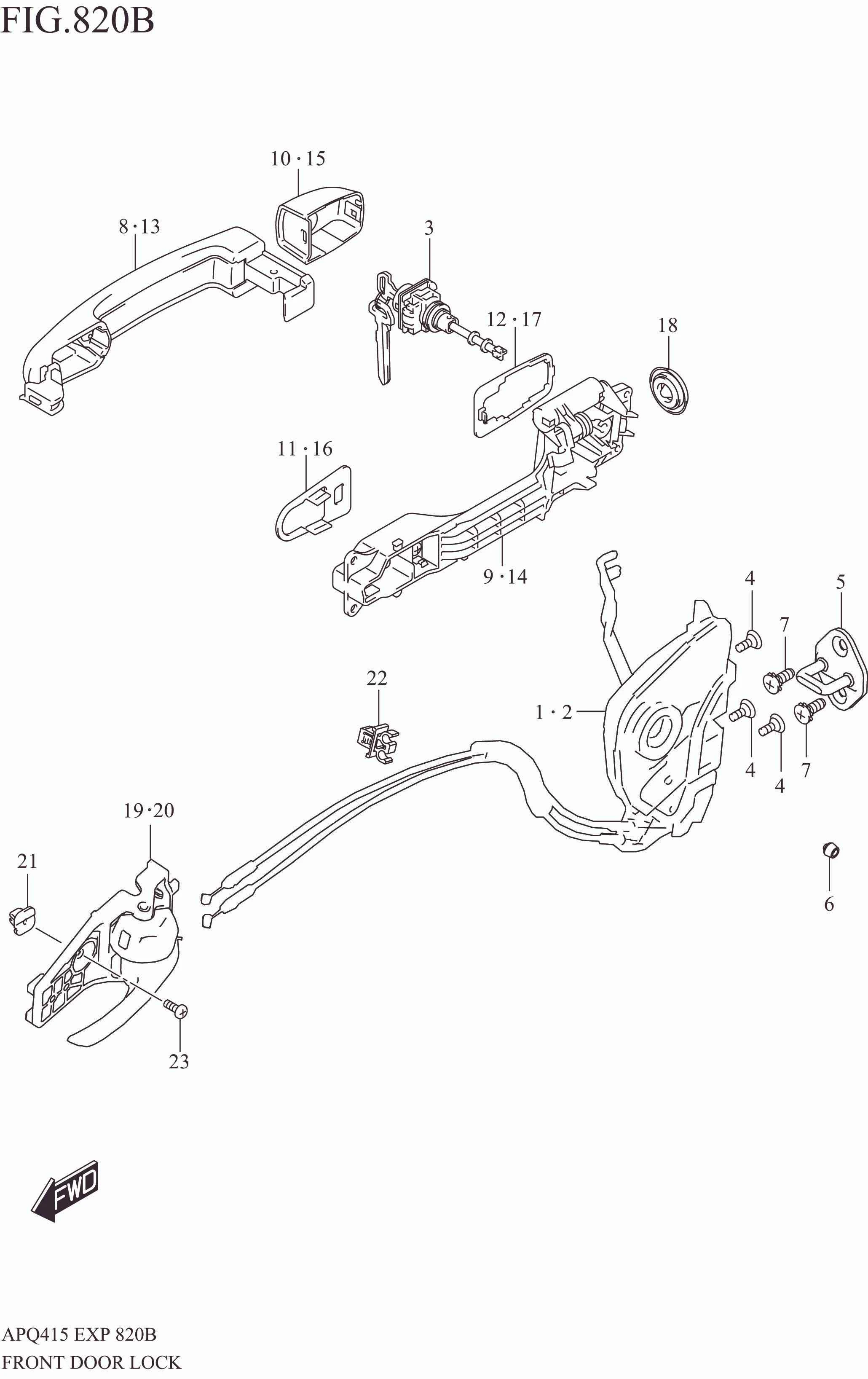

FRONT DOOR LOCK

FRONT DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82201M76T40-000 LATCH ASSY, FRONT DOOR RH 1 Rp545.500
2 82202M76T50-000 LATCH ASSY, FRONT DOOR LH 1 Rp545.500
3 82270M66830-000 CYLINDER SET, FR DR LATCH RH 1 Rp123.500
4 09137-06032-000 SCREW (6X18) 6 Rp16.500
5 82610M76M01-000 STRIKER, DR LATCH 2 Rp27.000
6 82711-65J00-000 CUSHION 4 Rp34.000
7 09139-08025-000 SCREW (8X20) 4 Rp23.000
8-14 82810M76820-ZQD HANDLE SET, FR DR OUT RH R :GLX (BLACK) 1 Rp836.000 GLX
8-13 82810M76820-ZHJ HANDLE SET, FR DR OUT RH R :GLX (WHITE) R :BODY COLOR:C9J,ZHJ 1 Rp836.000 GLX
8-12 82810M76820-ZAM HANDLE SET, FR DR OUT RH R :GLX (BLACK) 1 Rp836.000 GLX
8-11 82810M76820-WBH HANDLE SET, FR DR OUT RH R :GLX (BLUE) 1 Rp836.000 GLX
8-10 82810M76820-WBG HANDLE SET, FR DR OUT RH (RED)R :GLX R :BODY COLOR:ESL,WBG 1 Rp786.000 GLX
8-9 82810M76820-WBF HANDLE SET, FR DR OUT RH R :GLX (GRAY) 1 Rp836.000 GLX
8-8 82810M76820-WBE HANDLE SET, FR DR OUT RH R :GLX (SILVER) R :BODY COLOR:ERD,WBE 1 Rp836.000 GLX
8-6 82810M76820-ZHJ HANDLE SET, FR DR OUT RH R :GL (WHITE) 1 Rp836.000 GL
8-5 82810M76820-ZAM HANDLE SET, FR DR OUT RH R :GL (BLACK) 1 Rp836.000 GL
8-4 82810M76820-WBH HANDLE SET, FR DR OUT RH R :GL (BLUE) 1 Rp836.000 GL
8-3 82810M76820-WBG HANDLE SET, FR DR OUT RH (RED)R :GL 1 Rp786.000 GL
8-2 82810M76820-WBF HANDLE SET, FR DR OUT RH R :GL (GRAY) 1 Rp836.000 GL
8-1 82810M76820-WBE HANDLE SET, FR DR OUT RH R :GL (SILVER) 1 Rp836.000 GL
8-7 82810M76820-ZQD HANDLE SET, FR DR OUT RH R :GL (BLACK) 1 Rp836.000 GL
9 82811M76T10-000 FRAME, FRONT DOOR OUT RH 1 Rp143.000
10-5 82813M76T00-ZAM CAP, FRONT DOOR OUT RH (BLACK)R :GL 1 Rp10.000 GL
10-14 82813M76T00-ZQD CAP, FRONT DOOR OUT RH (BLACK)R :GLX 1 Rp10.000 GLX
10-13 82813M76T00-ZHJ CAP, FRONT DOOR OUT RH (WHITE)R :GLX R :BODY COLOR:C9J,ZHJ 1 Rp10.000 GLX
10-12 82813M76T00-ZAM CAP, FRONT DOOR OUT RH (BLACK)R :GLX 1 Rp10.000 GLX
10-11 82813M76T00-WBH CAP, FRONT DOOR OUT RH (BLUE) R :GLX 1 Rp10.000 GLX
10-10 82813M76T00-WBG CAP, FRONT DOOR OUT RH (RED) R :GLX R :BODY COLOR:ESL,WBG 1 Rp10.000 GLX
10-9 82813M76T00-WBF CAP, FRONT DOOR OUT RH (GRAY) R :GLX 1 Rp10.000 GLX
10-8 82813M76T00-WBE CAP, FRONT DOOR OUT RH R :GLX (SILVER) R :BODY COLOR:ERD,WBE 1 Rp10.000 GLX
10-7 82813M76T00-ZQD CAP, FRONT DOOR OUT RH (BLACK)R :GL 1 Rp10.000 GL
10-6 82813M76T00-ZHJ CAP, FRONT DOOR OUT RH (WHITE)R :GL 1 Rp10.000 GL
10-4 82813M76T00-WBH CAP, FRONT DOOR OUT RH (BLUE) R :GL 1 Rp10.000 GL
10-3 82813M76T00-WBG CAP, FRONT DOOR OUT RH (RED) R :GL 1 Rp10.000 GL
10-2 82813M76T00-WBF CAP, FRONT DOOR OUT RH (GRAY) R :GL 1 Rp10.000 GL
10-1 82813M76T00-WBE CAP, FRONT DOOR OUT RH R :GL (SILVER) 1 Rp10.000 GL
11 82814M76T00-000 PAD, REAR DOOR OUT RH 1 Rp5.500
12 82815M76T00-000 CUSHION, SIDE DOOR OUT RH 1 Rp6.000
13-2 82810M76820-WBF HANDLE SET, FR DR OUT LH R :GL (GRAY) 1 Rp836.000 GL
13-1 82810M76820-WBE HANDLE SET, FR DR OUT LH R :GL (SILVER) 1 Rp836.000 GL
13-14 82810M76820-ZQD HANDLE SET, FR DR OUT LH R :GLX (BLACK) 1 Rp836.000 GLX
13-13 82810M76820-ZHJ HANDLE SET, FR DR OUT LH R :GLX (WHITE) R :BODY COLOR:C9J,ZHJ 1 Rp836.000 GLX
13-12 82810M76820-ZAM HANDLE SET, FR DR OUT LH R :GLX (BLACK) 1 Rp836.000 GLX
13-11 82810M76820-WBH HANDLE SET, FR DR OUT LH R :GLX (BLUE) 1 Rp836.000 GLX
13-10 82810M76820-WBG HANDLE SET, FR DR OUT LH (RED)R :GLX R :BODY COLOR:ESL,WBG 1 Rp786.000 GLX
13-9 82810M76820-WBF HANDLE SET, FR DR OUT LH R :GLX (GRAY) 1 Rp836.000 GLX
13-8 82810M76820-WBE HANDLE SET, FR DR OUT LH R :GLX (SILVER) R :BODY COLOR:ERD,WBE 1 Rp836.000 GLX
13-7 82810M76820-ZQD HANDLE SET, FR DR OUT LH R :GL (BLACK) 1 Rp836.000 GL
13-6 82810M76820-ZHJ HANDLE SET, FR DR OUT LH R :GL (WHITE) 1 Rp836.000 GL
13-5 82810M76820-ZAM HANDLE SET, FR DR OUT LH R :GL (BLACK) 1 Rp836.000 GL
13-4 82810M76820-WBH HANDLE SET, FR DR OUT LH R :GL (BLUE) 1 Rp836.000 GL
13-3 82810M76820-WBG HANDLE SET, FR DR OUT LH (RED)R :GL 1 Rp786.000 GL
14 82821M76T10-000 FRAME, FRONT DOOR OUT LH 1 Rp143.000
15-14 82813M76T10-ZQD CAP, FRONT DOOR OUT LH (BLACK)R :GLX 1 Rp10.000 GLX
15-13 82813M76T10-ZHJ CAP, FRONT DOOR OUT LH (WHITE)R :GLX R :BODY COLOR:C9J,ZHJ 1 Rp10.000 GLX
15-12 82813M76T10-ZAM CAP, FRONT DOOR OUT LH (BLACK)R :GLX 1 Rp10.000 GLX
15-4 82813M76T10-WBH CAP, FRONT DOOR OUT LH (BLUE) R :GL 1 Rp10.000 GL
15-11 82813M76T10-WBH CAP, FRONT DOOR OUT LH (BLUE) R :GLX 1 Rp10.000 GLX
15-10 82813M76T10-WBG CAP, FRONT DOOR OUT LH (RED) R :GLX R :BODY COLOR:ESL,WBG 1 Rp10.000 GLX
15-9 82813M76T10-WBF CAP, FRONT DOOR OUT LH (GRAY) R :GLX 1 Rp10.000 GLX
15-8 82813M76T10-WBE CAP, FRONT DOOR OUT LH R :GLX (SILVER) R :BODY COLOR:ERD,WBE 1 Rp10.000 GLX
15-7 82813M76T10-ZQD CAP, FRONT DOOR OUT LH (BLACK)R :GL 1 Rp10.000 GL
15-6 82813M76T10-ZHJ CAP, FRONT DOOR OUT LH (WHITE)R :GL 1 Rp10.000 GL
15-5 82813M76T10-ZAM CAP, FRONT DOOR OUT LH (BLACK)R :GL 1 Rp10.000 GL
15-3 82813M76T10-WBG CAP, FRONT DOOR OUT LH (RED) R :GL 1 Rp10.000 GL
15-2 82813M76T10-WBF CAP, FRONT DOOR OUT LH (GRAY) R :GL 1 Rp10.000 GL
15-1 82813M76T10-WBE CAP, FRONT DOOR OUT LH R :GL (SILVER) 1 Rp10.000 GL
16 82814M76T00-000 PAD, REAR DOOR OUT LH 1 Rp5.500
17 82815M76T00-000 CUSHION, SIDE DOOR OUT LH 1 Rp6.000
18 09250M25L02-000 CAP (OD:33.5) 2 Rp5.500
19 83110M76T10-C48 HANDLE, SIDE DOOR INSIDE RH (CHROME/BLACK) 1 Rp154.500
20 83130M76T10-C48 HANDLE, SIDE DOOR INSIDE LH (CHROME/BLACK) 1 Rp154.500
21 83119M75J00-000 NUT, SIDE DR INS HANDLE 2 Rp5.500
22 83271M66R00-000 CLIP 2 Rp6.500
23 09132-05069-000 SCREW 2 Rp20.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
