Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

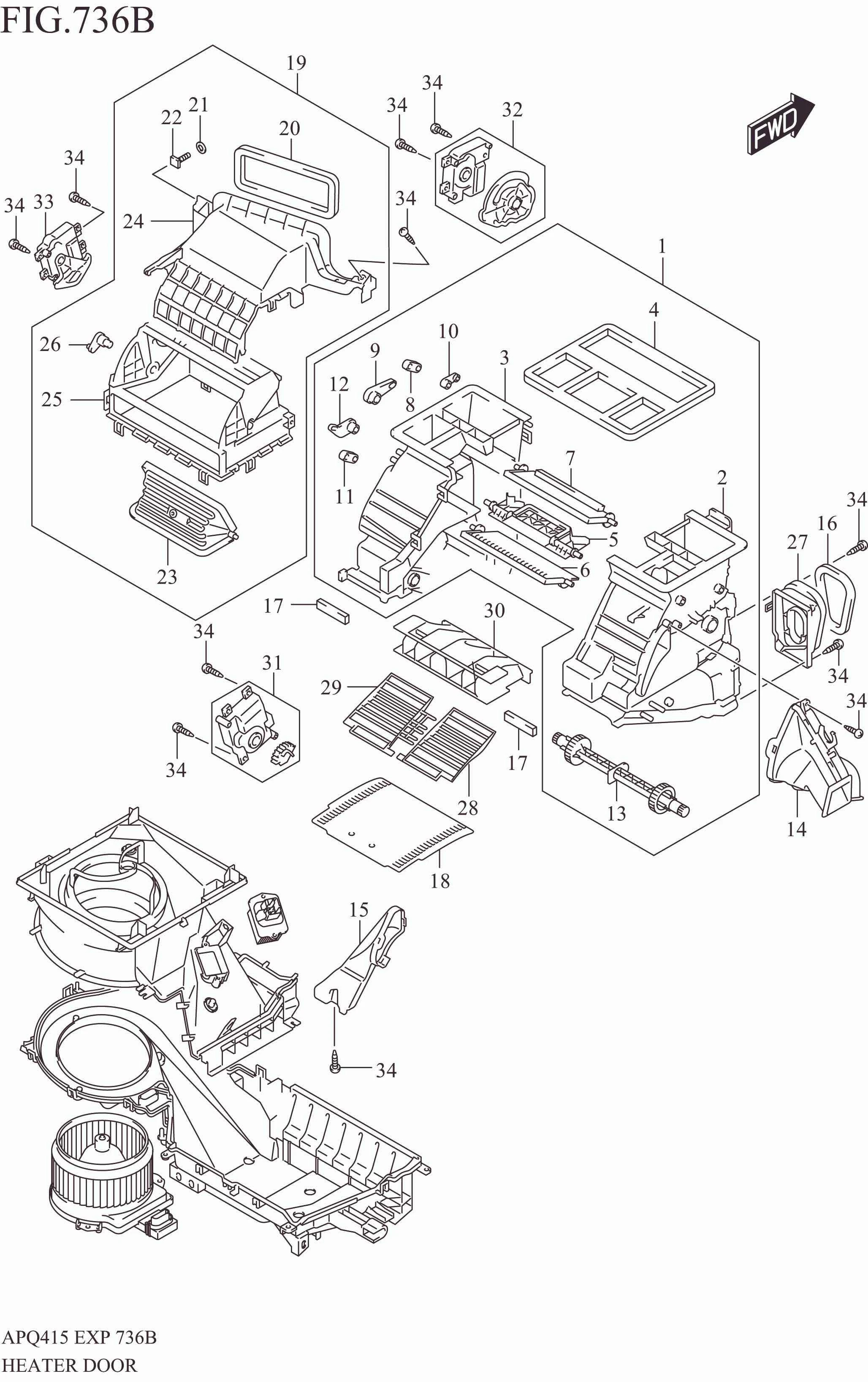

HEATER DOOR

HEATER DOOR
No No. Part Description Qty Price Per Pcs Remarks
1 74110M66T20-000 CASE, HEATER 1 Rp636.000
2 74111M66T20-000 .CASE, HEATER DR SIDE 1 Rp151.000
3 74112M65M10-000 .CASE, HTR 1 Rp216.500
4 74116M79M00-000 .PACKING SET, FACE DFR 1 Rp41.000
5 74172M79M00-000 .DOOR ASSY 1 Rp74.500
6 74174M79M00-000 .DOOR ASSY, FOOT 1 Rp66.000
7 74176M79M01-000 .DOOR ASSY 1 Rp93.500
8 74191M79M00-000 .LEVER, MODE DR 1 Rp11.500
9 74192M79M00-000 .LEVER, MODE MID 1 Rp13.000
10 74193M79M00-000 .LEVER, DEF DR 1 Rp10.500
11 74194M79M00-000 .LEVER, FOOT DR 1 Rp10.500
12 74195M79M00-000 .LEVER, FOOT MIDDLE 1 Rp14.500
13 74197M85SB0-000 .SHAFT 1 Rp111.000
14 74114M65M00-000 DUCT ASSY AIR 1 Rp45.500
15 74115M79M00-000 DUCT ASSY AIR LH 1 Rp43.000
16 74117M79M00-000 PACKING 1 Rp41.000
17 74163M79M00-000 PACKING HTR CASE 2 Rp8.000
18 74178M79M00-000 DOOR, A/M 1 Rp187.500
19 74210M76T00-000 CASE, BLOWER 1 Rp473.500
20 74119M66T00-000 .PACKING 1 Rp16.500
21 74119-78F10-000 .BUSH 1 Rp8.000
22 74119M79M00-000 .BOLT 1 Rp9.000
23 74173M79M00-000 .DOOR ASSY, R/F 1 Rp54.000
24 74213M66T00-000 .CASE, BLOWER INTAKE 1 Rp168.000
25 74214M76T00-000 .CASE, BLOWER R/F BOX 1 Rp239.000
26 74281M79M10-000 .LEVER 1 Rp12.000
27 74215M65M00-000 COVER TXV 1 Rp43.000
28 74218M79M00-000 DUCT A/M 1 Rp19.000
29 74219M79M00-000 DUCT A/M 1 Rp19.000
30 74223M79M00-000 DUCT, AIR 1 Rp33.000
31 95653M85S00-000 SERVO MOTOR ASSY, W/ACCESSORY 1 Rp409.500
32 95654M79M00-000 SERVO MOTOR ASSY, W/ACCESS 1 Rp465.000
33 95655M79M10-000 SERVO/ACC ASSY 1 Rp455.500
34 03112-0416A-000 SCREW 11 Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
