Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANEL FRONT BODY PANEL FLOOR PANEL SIDE BODY PANEL ROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPER INSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATOR HEATER UNIT HEATER BLOWER HEATER DOOR EVAPORATOR UNIT HEATER CONTROL CONSOLE BOX FLOOR CARPET INTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAP FUEL LID OPENER ROOF SIDE AIR BAG ROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDING SPLASH GUARD SLIDING ROOF (W/SUNROOF)EMBLEM WINDSHIELD FRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANEL FRONT DOOR REGULATOR REAR DOOR REGULATOR FRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCK MIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT 2ND SEAT BELT FRONT LH SEAT FRONT RH SEAT REAR SEAT PARCEL SHELF FUEL TANK TOOL CONDENSER A/C PIPING COMPRESSOR

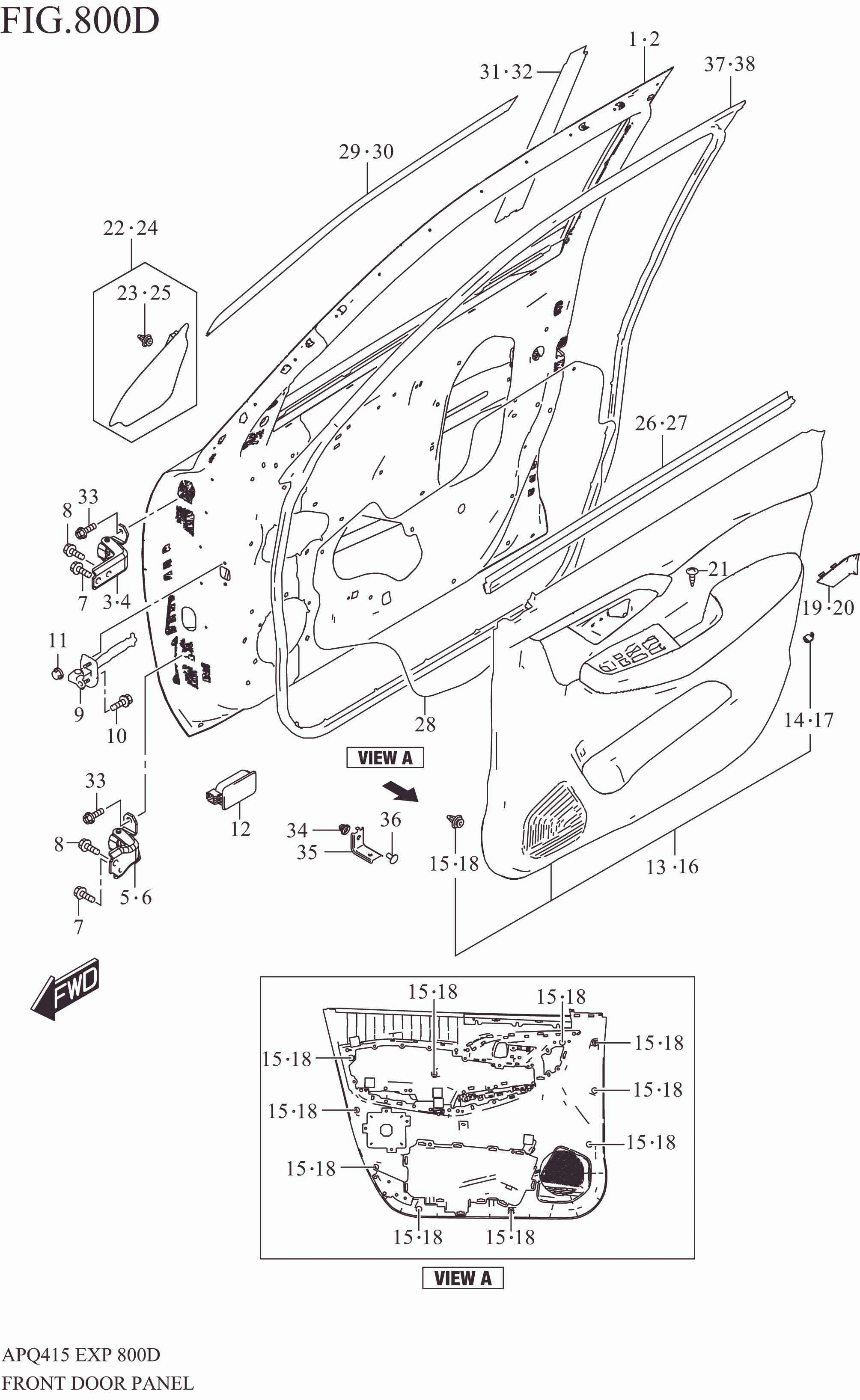

FRONT DOOR PANEL (RHD:N/TWEETER)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001M76T00-000	PANEL ASSY, FRONT DOOR RH	1	Rp3.280.000
2	68002M76T00-000	PANEL ASSY, FRONT DOOR LH	1	Rp3.280.000
3	69310M68L00-000	HINGE, FR DR UPR RH	1	Rp82.500
4	69320M68L00-000	HINGE, FR DR UPR LH	1	Rp82.500
5	69330M68L00-000	HINGE, FR DR LWR RH	1	Rp74.000
6	69340M68L00-000	HINGE, FR DR LWR LH	1	Rp74.000
7	09113M08L02-000	BOLT (8X20)	4	Rp8.500
8	01550-0820A-000	BOLT	4	Rp5.500
9	81810M55T00-000	STOP, FR DR OPEN	2	Rp195.000
10	09112-08015-000	BOLT (8X25)	2	Rp32.000
11	08316-1006A-000	NUT	4	Rp2.000
12	36216M74L00-5PK	COVER (BLACK)	2	Rp9.500
13	83710M76T00-EVL	TRIM, FRONT DOOR RH (BLACK/SILVER)	1	Rp2.072.000
14	83751M76T00-5PK	.CAP, DOOR INSIDE PULL CASE (BLACK)	1	Rp47.000
15	09409M10321-000	.CLIP	10	Rp5.000
16	83720M76T00-EVL	TRIM, FRONT DOOR LH (BLACK/SILVER)	1	Rp2.072.000
17	83751M76T00-5PK	.CAP, DOOR INSIDE PULL CASE (BLACK)	1	Rp47.000
18	09409M10321-000	.CLIP	10	Rp5.000
19	83755M74L00-5PK	CAP, INSIDE HDL BEZEL RH (BLACK)	1	Rp8.500
20	83756M74L00-5PK	CAP, INSIDE HDL BEZEL LH (BLACK)	1	Rp8.500
21	09132-05069-000	SCREW	2	Rp20.000
22	84750M76T00-5PK	GARNISH, SASH BRKT INR RH (BLACK)	1	Rp33.000
23	09409M10321-000	.CLIP	1	Rp5.000
24	84790M76T00-5PK	GARNISH, SASH BRKT INR LH (BLACK)	1	Rp33.000
25	09409M10321-000	.CLIP	1	Rp5.000
26	83851M76T00-000	WEATHERSTRIP, FR DOOR INNER RH	1	Rp74.500
27	83861M76T00-000	WEATHERSTRIP, FR DOOR INNER LH	1	Rp74.500
28	83911M76T00-000	COVER, FRONT DOOR SEALING	2	Rp13.000
29	83921M76T10-0CB	TAPE, FRONT DOOR OUTER ROOF R :BODY COLOR:WBE,WBF,WBG,WBH, RH (BLACK) R :ZHJ,ZQD	1	Rp127.000	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
30	83922M76T10-0CB	TAPE, FRONT DOOR OUTER ROOF R :BODY COLOR:WBE,WBF,WBG,WBH, LH (BLACK) R :ZHJ,ZQD	1	Rp127.000	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
31	83923M76T10-0CB	TAPE, FRONT DOOR OUTER RR RH R :BODY COLOR:WBE,WBF,WBG,WBH, (BLACK) R :ZHJ,ZQD	1	Rp44.500	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
32	83924M76T10-0CB	TAPE, FRONT DOOR OUTER RR LH R :BODY COLOR:WBE,WBF,WBG,WBH,(BLACK) R :ZHJ,ZQD	1	Rp44.500	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
33	09103M08557-000	BOLT (8X24)	8	Rp8.500
34	71851M70F00-000	NUT	2	Rp4.000
35	83751-67P00-000	BRACKET, DR TRIM	2	Rp11.500
36	03241M0612A-000	SCREW	2	Rp6.500
37	84641M76T00-000	WEATHERSTRIP, FRONT DOOR OPNG RH	1	Rp430.500
38	84651M76T00-000	WEATHERSTRIP, FRONT DOOR OPNG LH	1	Rp430.500
