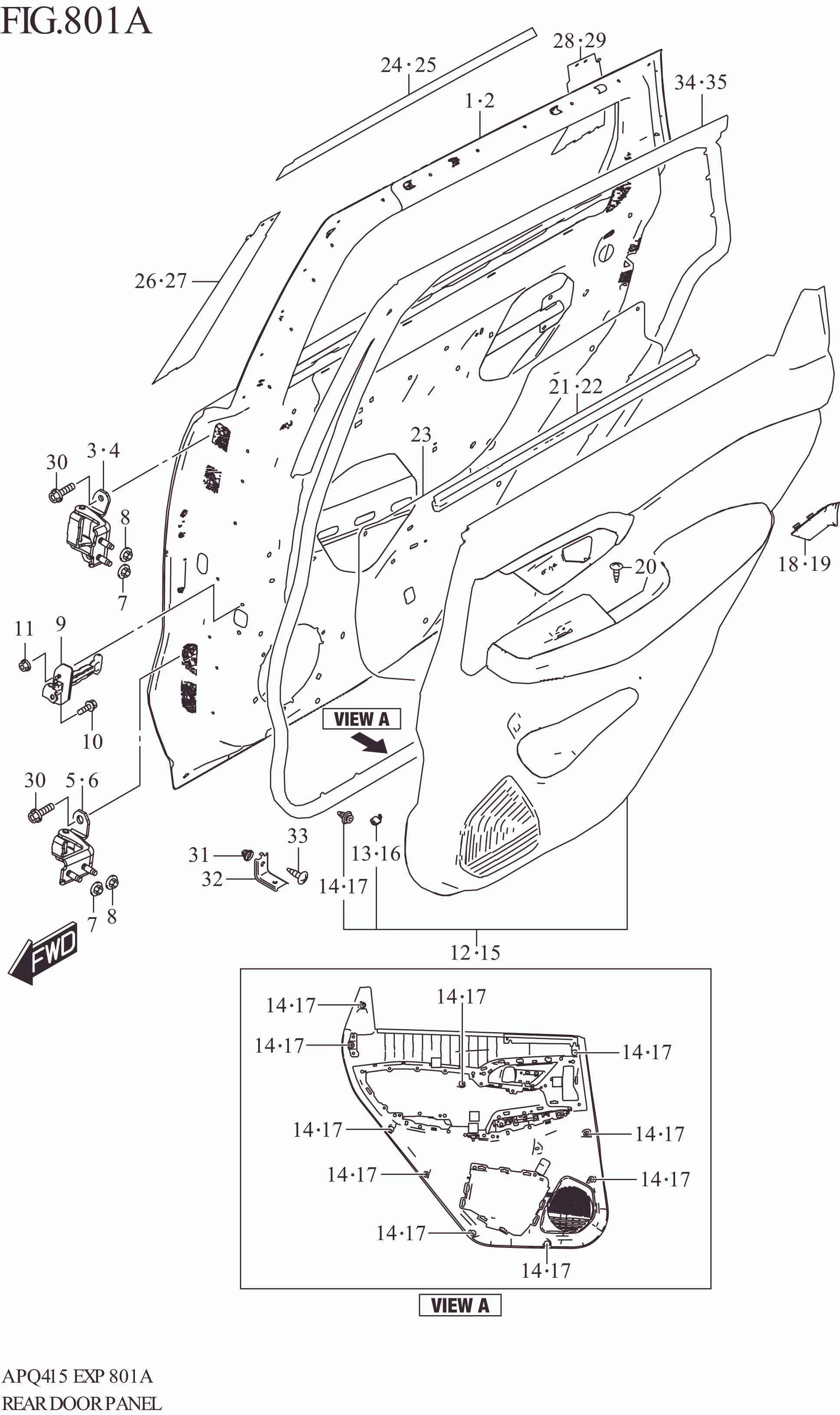

REAR DOOR PANEL (N/TWEETER)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68003M76T00-000	PANEL ASSY, REAR DOOR RH	1	Rp8.472.500
2	68004M76T00-000	PANEL ASSY, REAR DOOR LH	1	Rp8.472.500
3	69410M68L00-000	HINGE, RR DR UPR RH	1	Rp73.500
4	69420M68L00-000	HINGE, RR DR UPR LH	1	Rp73.500
5	69430-68L00-000	HINGE, RR DR LWR RH	1	Rp474.000
6	69440-68L00-000	HINGE, RR DR LWR LH	1	Rp419.500
7	09159M08151-000	NUT (M8)	4	Rp11.500
8	08361-2508A-000	NUT	4	Rp16.500
9	81830M76T00-000	STOP, REAR DOOR OPEN	2	Rp172.000
10	09112-08015-000	BOLT (8X25)	2	Rp32.000
11	08316-1006A-000	NUT	4	Rp2.000
12	83730M76T00-EVL	TRIM, REAR DOOR RH (BLACK/SILVER)	1	Rp1.019.500
13	83751M76T00-5PK	.CAP, DOOR INSIDE PULL CASE (BLACK)	1	Rp47.000
14	09409M10321-000	.CLIP	10	Rp5.000
15	83740M76T00-EVL	TRIM, REAR DOOR LH (BLACK/SILVER)	1	Rp1.019.500
16	83751M76T00-5PK	.CAP, DOOR INSIDE PULL CASE (BLACK)	1	Rp47.000
17	09409M10321-000	.CLIP	10	Rp5.000
18	83755M74L00-5PK	CAP, INSIDE HDL BEZEL RH (BLACK)	1	Rp8.500
19	83756M74L00-5PK	CAP, INSIDE HDL BEZEL LH (BLACK)	1	Rp8.500
20	09132-05069-000	SCREW	2	Rp20.000
21	83871M76T00-000	WEATHERSTRIP, RR DOOR INNER RH	1	Rp64.000
22	83881M76T00-000	WEATHERSTRIP, RR DOOR INNER LH	1	Rp64.000
23	83913M76T00-000	COVER, REAR DOOR SEALING	2	Rp12.000
24	83925M76T10-0CB	TAPE, REAR DOOR OUTER ROOF RH R :BODY COLOR:WBE,WBF,WBG,WBH, (BLACK) R :ZHJ,ZQD	1	Rp43.000	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
25	83926M76T10-0CB	TAPE, REAR DOOR OUTER ROOF LH R :BODY COLOR:WBE,WBF,WBG,WBH,(BLACK) R :ZHJ,ZQD	1	Rp43.000	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
26	83927M76T10-0CB	TAPE, REAR DOOR OUTER FR RH R :BODY COLOR:WBE,WBF,WBG,WBH,(BLACK) R :ZHJ,ZQD	1	Rp48.000	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
27	83928M76T10-0CB	TAPE, REAR DOOR OUTER FR LH R :BODY COLOR:WBE,WBF,WBG,WBH,(BLACK) R :ZHJ,ZQD	1	Rp48.000	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
28	83931M76T10-0CB	TAPE, REAR DOOR OUTER RR RH R :BODY COLOR:WBE,WBF,WBG,WBH,(BLACK) R :ZHJ,ZQD	1	Rp71.500	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
29	83932M76T10-0CB	TAPE, REAR DOOR OUTER RR LH R :BODY COLOR:WBE,WBF,WBG,WBH,(BLACK) R :ZHJ,ZQD	1	Rp71.500	BODY COLOR:WBE,WBF,WBG,WBH,ZHJ,ZQD
30	09103M08557-000	BOLT (8X24)	8	Rp8.500
31	71851M70F00-000	NUT	2	Rp4.000
32	83751-67P00-000	BRACKET, DR TRIM	2	Rp11.500
33	03241M0612A-000	SCREW	2	Rp6.500
34	84661M76T00-000	WEATHERSTRIP, REAR DOOR OPNG RH	1	Rp520.000
35	84671M76T00-000	WEATHERSTRIP, REAR DOOR OPNG LH	1	Rp520.000
