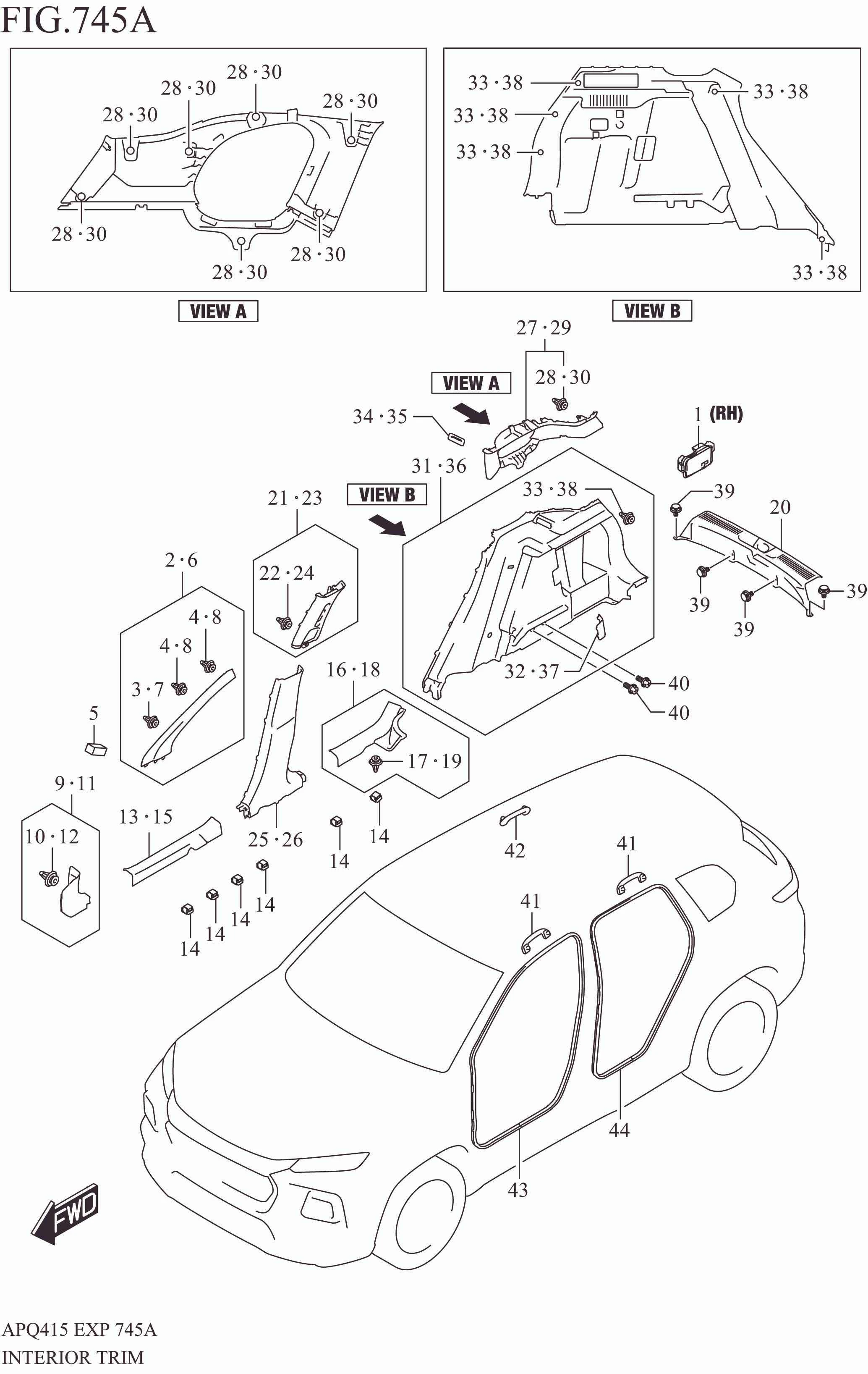

INTERIOR TRIM (N/LUGGAGE LAMP)

No	No. Part	Description	Qty	Price Per Pcs
1	36216M74L00-5PK	COVER (BLACK)	1	Rp9.500
2	76110M76T00-6GS	TRIM, FRONT PILLAR RH (GRAY)	1	Rp139.500
3	09409M10L04-000	.CLIP	1	Rp4.000
4	09409M10321-000	.CLIP	2	Rp5.000
5	76114M76T00-000	PAD, DASH SIDE UPPER	2	Rp8.500
6	76120M76T00-6GS	TRIM, FRONT PILLAR LH (GRAY)	1	Rp139.500
7	09409M10L04-000	.CLIP	1	Rp4.000
8	09409M10321-000	.CLIP	2	Rp5.000
9	76130M65M00-5PK	TRIM, DASH SIDE RH (BLACK)	1	Rp797.500
10	09409M10321-000	.CLIP	1	Rp5.000
11	76140M65M00-5PK	TRIM, DASH SIDE LH (BLACK)	1	Rp797.500
12	09409M10321-000	.CLIP	1	Rp5.000
13	76151M61M00-5PK	SCUFF, SIDE SILL FRONT RH (BLACK)	1	Rp58.500
14	76158M74L00-000	CLAMP, SIDE SILL SCUFF	12	Rp6.000
15	76161M61M00-5PK	SCUFF, SIDE SILL FRONT LH (BLACK)	1	Rp58.500
16	76170M76T00-5PK	SCUFF, SIDE SILL REAR RH (BLACK)	1	Rp111.500
17	09409M10321-000	.CLIP	1	Rp5.000
18	76180M76T00-5PK	SCUFF, SIDE SILL REAR LH (BLACK)	1	Rp111.500
19	09409M10321-000	.CLIP	1	Rp5.000
20	76191M76T00-5PK	TRIM, TAIL END (BLACK)	1	Rp214.500
21	76210M76T10-6GS	TRIM, CTR PILLAR UPR RH (GRAY)	1	Rp77.500
22	09409M10321-000	.CLIP	1	Rp5.000
23	76220M76T10-6GS	TRIM, CTR PILLAR UPR LH (GRAY)	1	Rp77.500
24	09409M10321-000	.CLIP	1	Rp5.000
25	76231M76T00-5PK	TRIM, CTR PILLAR LOWER RH (BLACK)	1	Rp199.000
26	76241M76T00-5PK	TRIM, CTR PILLAR LOWER LH (BLACK)	1	Rp199.000
27	76250M76T00-6GS	TRIM, QUARTER UPPER RH (GRAY)	1	Rp255.500
28	09409M10321-000	.CLIP	7	Rp5.000
29	76260M76T00-6GS	TRIM, QUARTER UPPER LH (GRAY)	1	Rp255.500
30	09409M10321-000	.CLIP	7	Rp5.000
31	76270M76T00-5PK	TRIM, QUARTER LOWER RH (BLACK)	1	Rp973.000
32	76275M61M00-5PK	.CAP, QUARTER LOWER TRIM RH (BLACK)	1	Rp16.000
33	09409M10321-000	.CLIP	5	Rp5.000
34	76272M54P00-5PK	COVER, REAR SEAT BELT SIDE RH (BLACK)	1	Rp7.500
35	76273M54P00-5PK	COVER, REAR SEAT BELT SIDE LH (BLACK)	1	Rp7.500
36	76280M76T00-5PK	TRIM, QUARTER LOWER LH (BLACK)	1	Rp973.000
37	76276M61M00-5PK	.CAP, QUARTER LOWER TRIM LH (BLACK)	1	Rp16.000
38	09409M10321-000	.CLIP	5	Rp5.000
39	09409M07L01-5PK	CLIP (BLACK)	4	Rp4.000
40	02162-0612A-000	SCREW	4	Rp11.000
41	76410M79M20-6GS	GRIP, ASSISTANT LH (GRAY)	2	Rp82.500
42	76410M79M30-6GS	GRIP, ASSISTANT RH (GRAY)	1	Rp87.500
43	76291M76T00-000	TRIM, FRONT DOOR OPENING	2	Rp276.500
44	76295M76T00-000	TRIM, REAR DOOR OPENING	2	Rp248.500
