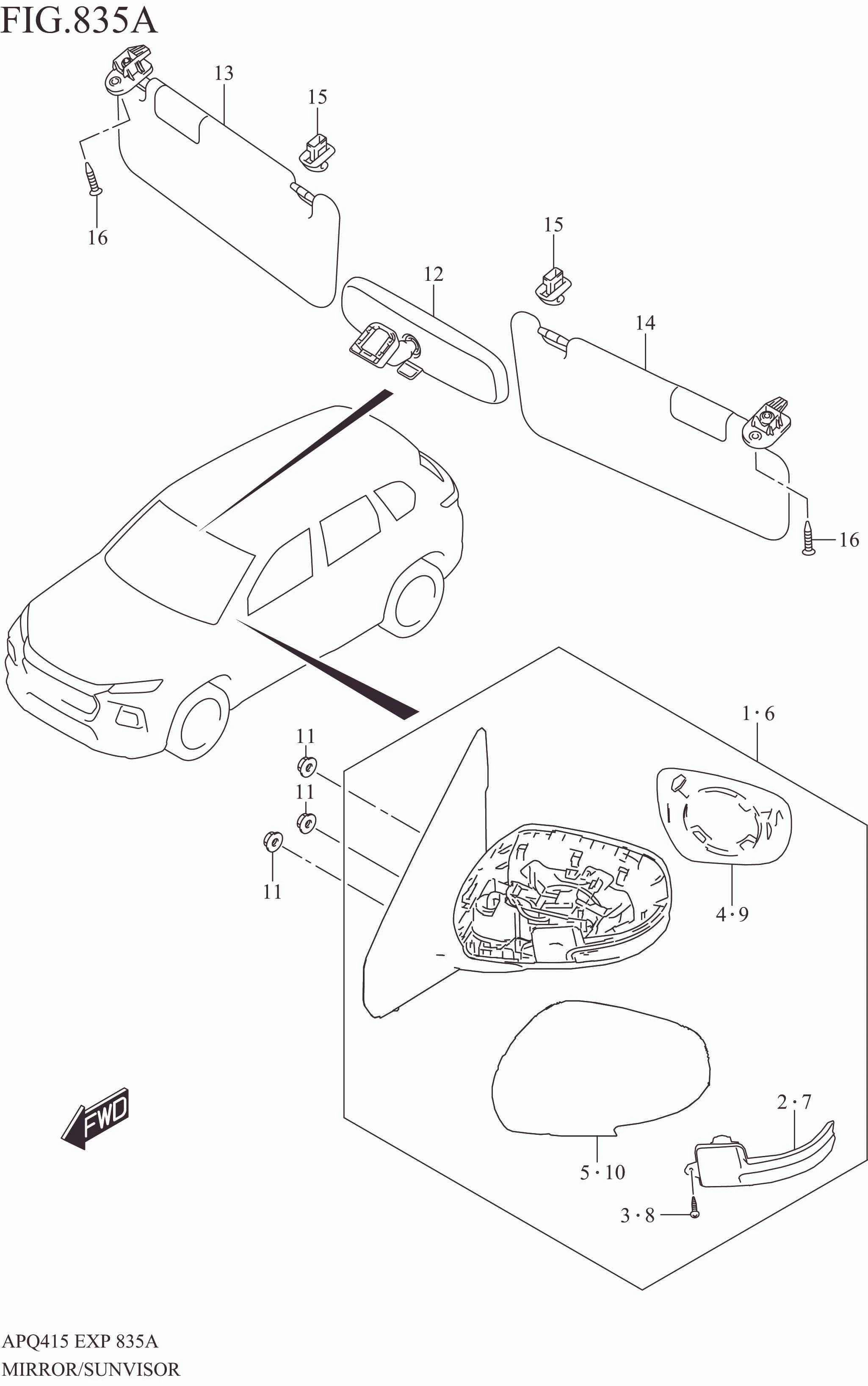

MIRROR/SUNVISOR (N/SIDE CAMERA:GL)

No	No. Part	Description	Qty	Price Per Pcs
1-2	84701M76TA0-WBF	MIRROR ASSY, RR VIEW RH (GRAY)	1	Rp1.658.000
1-1	84701M76TA0-WBE	MIRROR ASSY, RR VIEW RH (SILVER)	1	Rp1.658.000
1-7	84701M76TA0-ZQD	MIRROR ASSY, RR VIEW RH (BLACK)	1	Rp1.658.000
1-6	84701M76TA0-ZHJ	MIRROR ASSY, RR VIEW RH (WHITE)	1	Rp1.658.000
1-4	84701M76TA0-WBH	MIRROR ASSY, RR VIEW RH (BLUE)	1	Rp1.562.500
1-3	84701M76TA0-WBG	MIRROR ASSY, RR VIEW RH (RED)	1	Rp1.658.000
1-5	84701M76TA0-ZAM	MIRROR ASSY, RR VIEW RH (BLACK)	1	Rp1.658.000
2	36410M76M00-000	.LAMP ASSY, SIDE TURN SIG RH	1	Rp357.500
3	84717M76M00-000	.SCREW, TURN SIGNAL LAMP	1	Rp8.500
4	84730M76T00-000	.GLASS, OUT RR VIEW MIR RH	1	Rp138.500
5-3	84718M76T10-WBG	.COVER, MIRROR VISOR RH (RED)	1	Rp317.000
5-7	84718M76T10-ZQD	.COVER, MIRROR VISOR RH (BLACK)	1	Rp317.000
5-6	84718M76T10-ZHJ	.COVER, MIRROR VISOR RH (WHITE)	1	Rp317.000
5-5	84718M76T10-ZAM	.COVER, MIRROR VISOR RH (BLACK)	1	Rp317.000
5-4	84718M76T10-WBH	.COVER, MIRROR VISOR RH (BLUE)	1	Rp301.500
5-2	84718M76T10-WBF	.COVER, MIRROR VISOR RH (GRAY)	1	Rp317.000
5-1	84718M76T10-WBE	.COVER, MIRROR VISOR RH (SILVER)	1	Rp317.000
6-7	84702M76TA0-ZQD	MIRROR ASSY, RR VIEW LH (BLACK)	1	Rp1.658.000
6-6	84702M76TA0-ZHJ	MIRROR ASSY, RR VIEW LH (WHITE)	1	Rp1.658.000
6-5	84702M76TA0-ZAM	MIRROR ASSY, RR VIEW LH (BLACK)	1	Rp1.658.000
6-4	84702M76TA0-WBH	MIRROR ASSY, RR VIEW LH (BLUE)	1	Rp1.562.500
6-2	84702M76TA0-WBF	MIRROR ASSY, RR VIEW LH (GRAY)	1	Rp1.658.000
6-1	84702M76TA0-WBE	MIRROR ASSY, RR VIEW LH (SILVER)	1	Rp1.658.000
6-3	84702M76TA0-WBG	MIRROR ASSY, RR VIEW LH (RED)	1	Rp1.658.000
7	36430M76M00-000	.LAMP ASSY, SIDE TURN SIG LH	1	Rp357.500
8	84717M76M00-000	.SCREW, TURN SIGNAL LAMP	1	Rp8.500
9	84740M76T00-000	.GLASS, OUT RR VIEW MIR LH	1	Rp138.500
10-4	84728M76T10-WBH	.COVER, MIRROR VISOR LH (BLUE)	1	Rp301.500
10-7	84728M76T10-ZQD	.COVER, MIRROR VISOR LH (BLACK)	1	Rp317.000
10-6	84728M76T10-ZHJ	.COVER, MIRROR VISOR LH (WHITE)	1	Rp317.000
10-5	84728M76T10-ZAM	.COVER, MIRROR VISOR LH (BLACK)	1	Rp317.000
10-3	84728M76T10-WBG	.COVER, MIRROR VISOR LH (RED)	1	Rp317.000
10-2	84728M76T10-WBF	.COVER, MIRROR VISOR LH (GRAY)	1	Rp317.000
10-1	84728M76T10-WBE	.COVER, MIRROR VISOR LH (SILVER)	1	Rp317.000
11	08316-1006A-000	NUT	6	Rp2.000
12	84703M79M01-000	MIRROR ASSY, INS RR VIEW	1	Rp380.000
13	84801M76M61-6GS	SUNVISOR ASSY RH (GRAY)	1	Rp359.000
14	84802M76M52-6GS	SUNVISOR ASSY LH (GRAY)	1	Rp359.000
15	84851M66R00-6GS	HOLDER, SUNVISOR (GRAY)	2	Rp8.500
16	09139M05095-000	SCREW (5X13)	2	Rp9.000
