Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

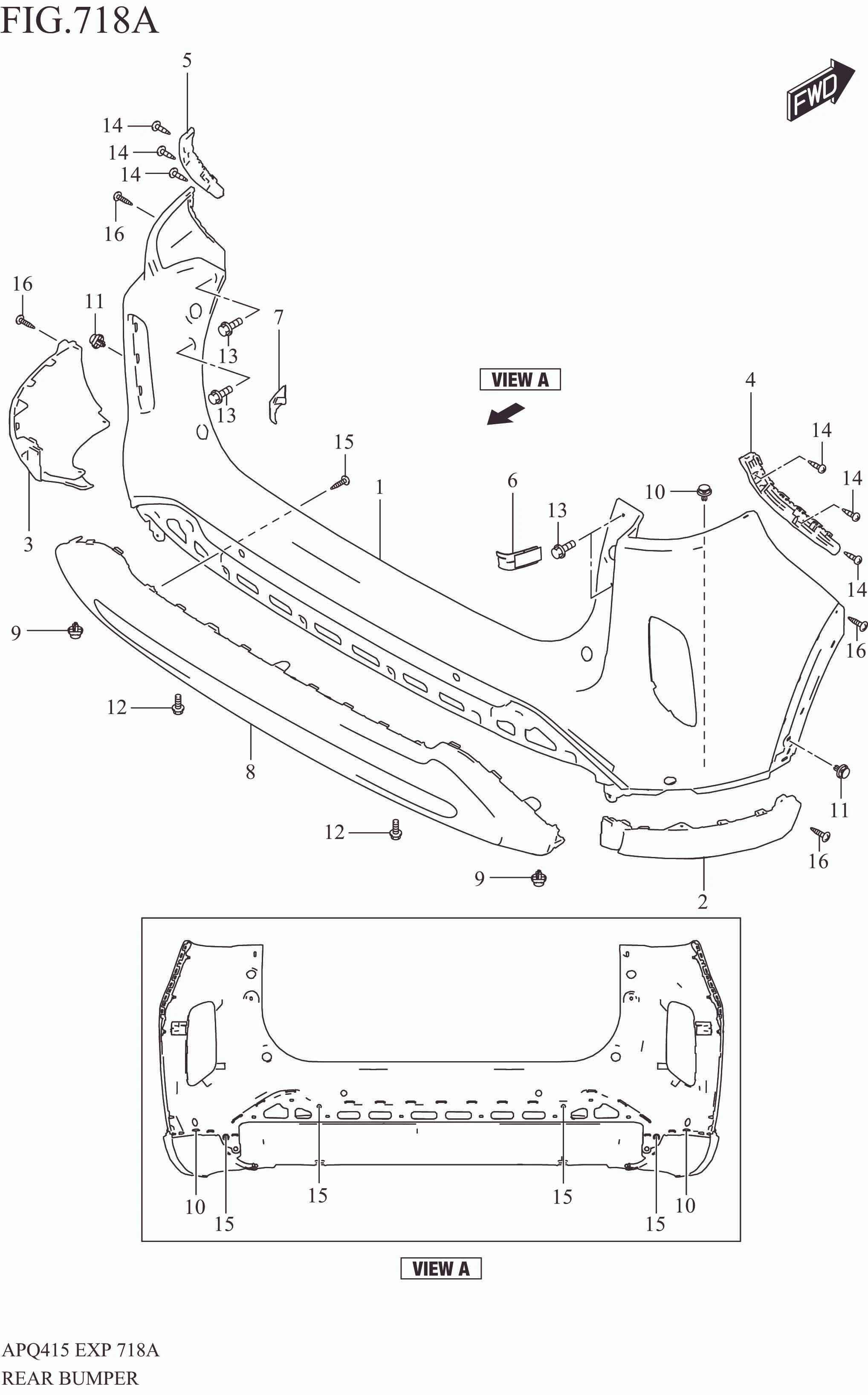

REAR BUMPER

REAR BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71811M76T00-5PK BUMPER, REAR UPPER R :PAINT TO MATCH (BLACK/PRIMARY) 1 Rp1.150.000 PAINT TO MATCH
2 71812M76T00-5PK BUMPER, REAR LOWER RH (BLACK) 1 Rp83.500
3 71813M76T00-5PK BUMPER, REAR LOWER LH (BLACK) 1 Rp83.500
4 71831M76T00-000 HOLDER, RR BUMPER SIDE RH 1 Rp34.000
5 71832M76T00-000 HOLDER, RR BUMPER SIDE LH 1 Rp36.000
6 71841M76T00-000 BRACKET, RR BUMPER SIDE RH 1 Rp30.000
7 71842M76T00-000 BRACKET, RR BUMPER SIDE LH 1 Rp30.000
8 71871M76T00-PER GARNISH, RR BUMPER LOWER (SILVER) 1 Rp610.500
9 09409M07L01-000 CLIP 2 Rp5.000
10 09409M07L01-000 CLIP 2 Rp5.000
11 09409M08006-000 CLIP 2 Rp5.000
12 01551-0616C-000 BOLT 2 Rp14.500
13 01551-0616C-000 BOLT 4 Rp14.500
14 03541-0516A-000 SCREW 6 Rp3.500
15 03541-0516A-000 SCREW 4 Rp3.500
16 03541-0516A-000 SCREW 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
