Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

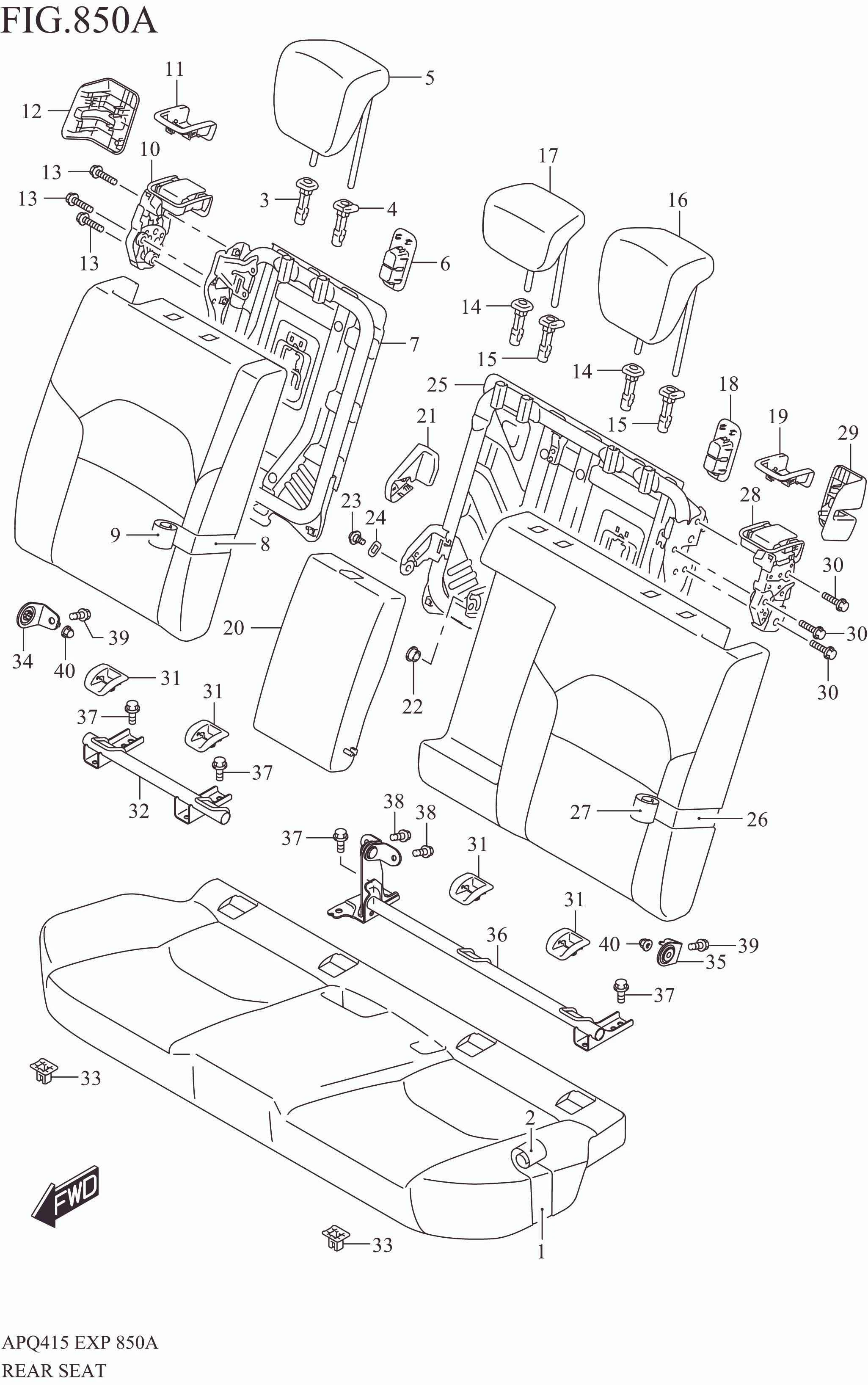

REAR SEAT

REAR SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 87160M76T00-000 PAD, RR CUSH 1 Rp4.619.000
2-1 87180M76T00-EYD TRIM, RR CUSH (BLACK/SILVER) R :W/FABRIC SEAT 1 Rp1.311.000 W/FABRIC SEAT
2-2 87180M76T10-EYF TRIM, RR CUSH (BLACK/SILVER) R :W/LEATHER SEAT 1 Rp5.673.500 W/LEATHER SEAT
3 85341M76T10-5PK GUIDE, HEADRESTRAINT (BLACK) 1 Rp54.000
4 85840M76T10-5PK GUIDE, HEADRESTRAINT (BLACK) 1 Rp61.000
5-1 86401M76T10-EYE HEADRESTRAINT ASSY, RR R :W/FABRIC SEAT (BLACK/SILVER) 1 Rp1.326.000 W/FABRIC SEAT
5-2 86401M76T50-EYG HEADRESTRAINT ASSY, RR R :W/LEATHER SEAT (BLACK/SILVER) 1 Rp2.315.000 W/LEATHER SEAT
6 87225M76T00-5PK COVER, TETHER ANCHOR (BLACK) 1 Rp36.500
7 87310M76T00-000 FRAME, RR BACK RH 1 Rp2.135.000
8 87360M76T00-000 PAD, RR BACK RH 1 Rp1.611.500
9-1 87380M76T00-EYD TRIM, RR BACK RH R :W/FABRIC SEAT (BLACK/SILVER) 1 Rp988.500 W/FABRIC SEAT
9-2 87380M76T10-EYF TRIM, RR BACK RH R :W/LEATHER SEAT (BLACK/SILVER) 1 Rp3.046.500 W/LEATHER SEAT
10 87480M76T00-000 LOCK ASSY, RR BACK RH 1 Rp1.846.500
11 87482M76T00-5PK BEZEL, RR BACK LOCK (BLACK) 1 Rp31.000
12 87486M76T00-5PK BEZEL, RR BACK LOCK HOLE RH (BLACK) 1 Rp64.500
13 01550-0840A-000 BOLT 3 Rp3.500
14 85341M76T10-5PK GUIDE, HEADRESTRAINT (BLACK) 2 Rp54.000
15 85840M76T10-5PK GUIDE, HEADRESTRAINT (BLACK) 2 Rp61.000
16-1 86401M76T10-EYE HEADRESTRAINT ASSY, RR R :W/FABRIC SEAT (BLACK/SILVER) 1 Rp1.326.000 W/FABRIC SEAT
16-2 86401M76T50-EYG HEADRESTRAINT ASSY, RR R :W/LEATHER SEAT (BLACK/SILVER) 1 Rp2.315.000 W/LEATHER SEAT
17-1 86401M76T20-EYE HEADRESTRAINT ASSY, RR CTR R :W/FABRIC SEAT (BLACK/SILVER) 1 Rp1.081.500 W/FABRIC SEAT
17-2 86401M76T60-EYG HEADRESTRAINT ASSY, RR CTR R :W/LEATHER SEAT (BLACK/SILVER) 1 Rp1.857.500 W/LEATHER SEAT
18 87225M76T00-5PK COVER, TETHER ANCHOR (BLACK) 1 Rp36.500
19 87482M76T00-5PK BEZEL, RR BACK LOCK (BLACK) 1 Rp31.000
20-2 87501M76T10-EV3 ARMREST ASSY, RR (BLACK) R :W/LEATHER SEAT 1 Rp2.468.500 W/LEATHER SEAT
20-1 87501M76T00-EYU ARMREST ASSY, RR (BLACK) R :W/FABRIC SEAT 1 Rp1.268.500 W/FABRIC SEAT
21 87521M76T00-5PK COVER, RR ARMREST (BLACK) 1 Rp38.000
22 87523M76T00-000 BUSH, ARMREST 1 Rp18.000
23 87525M76T00-000 BOLT, ARMREST 1 Rp55.000
24 87526M76T00-000 WASHER, ARMREST 1 Rp14.500
25 87810M76T00-000 FRAME, RR BACK LH 1 Rp2.557.000
26 87860M76T00-000 PAD, RR BACK LH 1 Rp1.726.000
27-1 87880M76T00-EYD TRIM, RR BACK LH R :W/FABRIC SEAT (BLACK/SILVER) 1 Rp1.246.500 W/FABRIC SEAT
27-2 87880M76T10-EYF TRIM, RR BACK LH R :W/LEATHER SEAT (BLACK/SILVER) 1 Rp4.239.000 W/LEATHER SEAT
28 87980M76T00-000 LOCK ASSY, RR BACK LH 1 Rp1.846.500
29 87986M76T00-5PK BEZEL, RR BACK LOCK HOLE LH (BLACK) 1 Rp69.500
30 01550-0840A-000 BOLT 3 Rp3.500
31 87228M68P00-5PK BEZEL, LWR ANCHOR (BLACK) 4 Rp17.500
32 87260M76T00-000 BRACKET, CHILD ANCHORAGE 1 Rp522.500
33 87460M81R00-000 HOOK, RR SEAT CUSH 2 Rp6.500
34 87910M76T00-000 HINGE, RR SIDE RH 1 Rp66.500
35 87930M76T00-000 HINGE, RR SIDE LH 1 Rp66.500
36 87950M76T00-000 HINGE, RR SEAT CENTER 1 Rp1.276.000
37 01551-1025A-000 BOLT 4 Rp29.000
38 01551-1025A-000 BOLT 2 Rp29.000
39 01551-1025A-000 BOLT 2 Rp29.000
40 08313-2010A-000 NUT 2 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
