Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

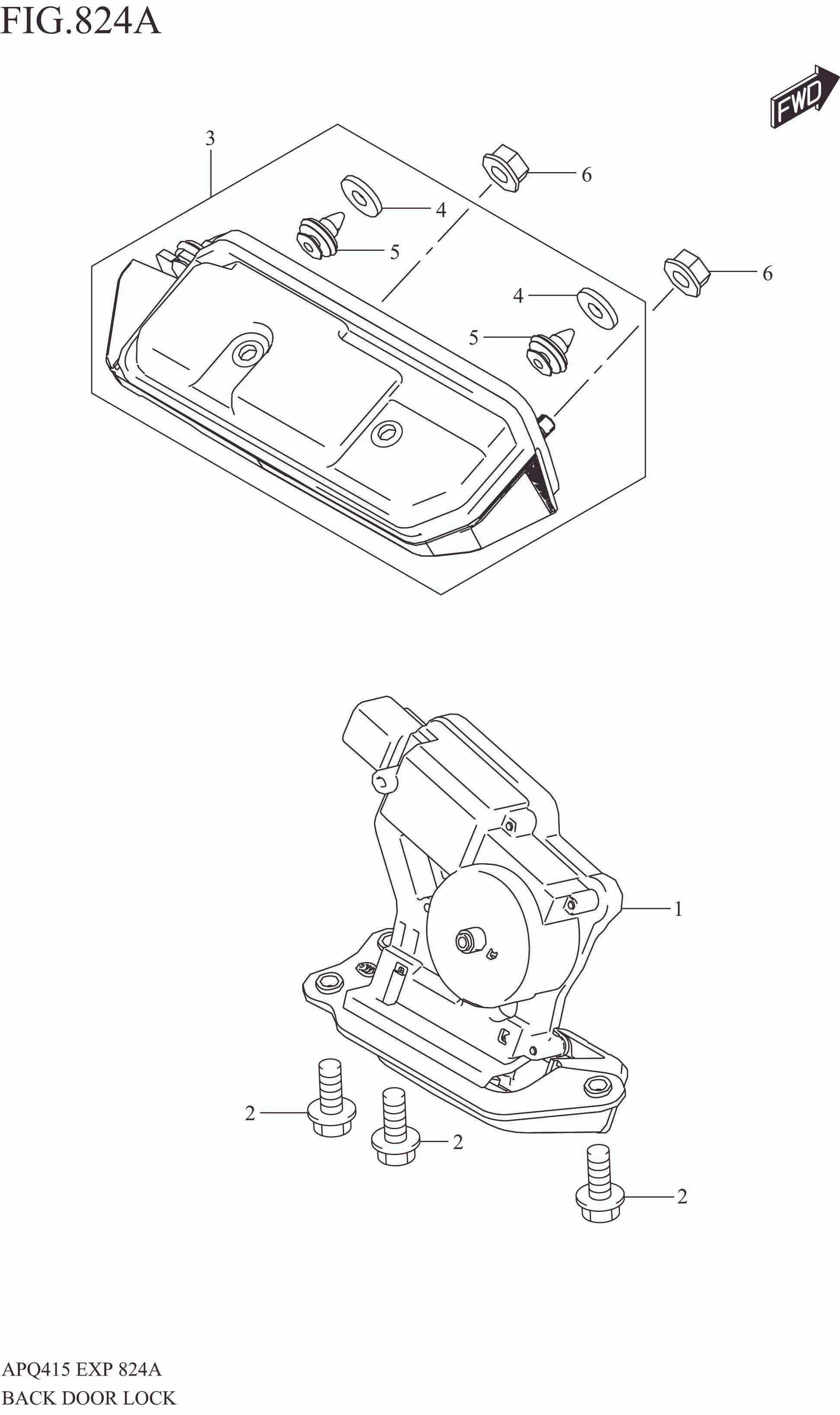

BACK DOOR LOCK

BACK DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82510M76T20-000 LATCH, BACK DOOR 1 Rp486.500
2 02162-0616A-000 SCREW 3 Rp3.000
3-1 82089M76T00-000 HANDLE SET, BACK DOOR R :N/BACK CAMERA 1 Rp373.000 N/BACK CAMERA
3-2 82089M76T10-000 HANDLE SET, BACK DOOR R :W/BACK CAMERA:N/SIDE CAMERA 1 Rp2.531.000 W/BACK CAMERA:N/SIDE CAMERA
3-3 82089M76T20-000 HANDLE SET, BACK DOOR R :W/BACK CAMERA:W/SIDE CAMERA 1 Rp3.575.500 W/BACK CAMERA:W/SIDE CAMERA
4 77122-60B00-000 .PACKING 2 Rp24.000
5 09409M10332-000 .CLIP 2 Rp6.000
6 08316-1006A-000 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
