Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

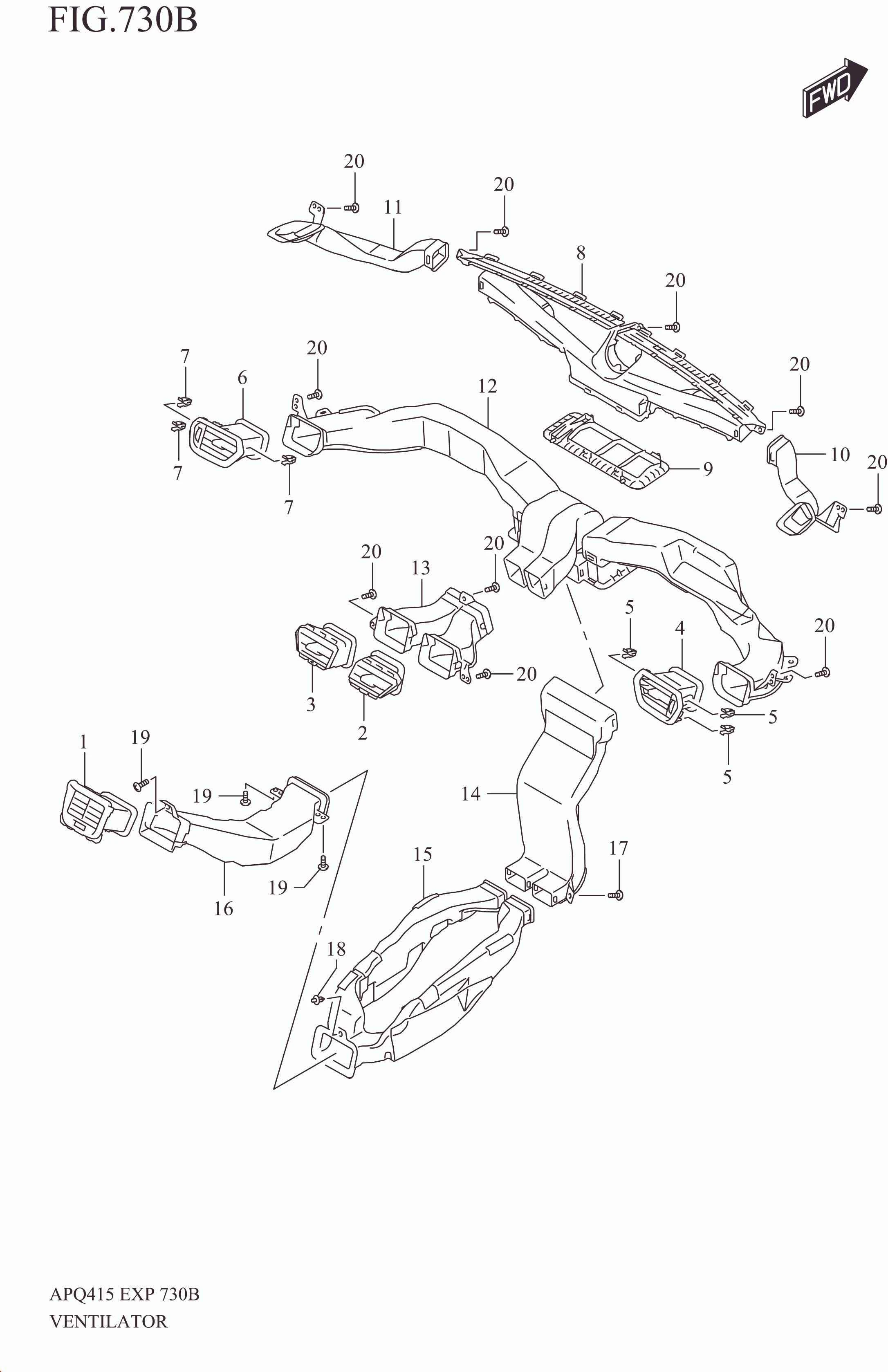

VENTILATOR

VENTILATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 73610M76TA0-HLF LOUVER, REAR VENT R :W/RETRACTABLE HEADUP DISPLAY (BLACK/CHROME) 1 Rp202.000 W/RETRACTABLE HEADUP DISPLAY
1-1 73610M76TB0-5PK LOUVER, REAR VENT (BLACK) R :N/HEADUP DISPLAY 1 Rp168.500 N/HEADUP DISPLAY
2 73610M76T01-DJJ
SUB: 73610M76T00-DJJ		 LOUVER, CTR VENT RH (BLACK/SILVER) 1 Rp153.000
3 73620M76T01-DJJ
SUB: 73620M76T00-DJJ		 LOUVER, CTR VENT LH (BLACK/SILVER) 1 Rp153.000
4-1 73630M76T00-HLF LOUVER, SIDE VENT RH R :N/HEADUP DISPLAY (BLACK/CHROME) 1 Rp184.000 N/HEADUP DISPLAY
4-2 73630M76T10-CRU LOUVER, SIDE VENT RH R :W/RETRACTABLE HEADUP DISPLAY (BLACK/CHROME) 1 Rp212.000 W/RETRACTABLE HEADUP DISPLAY
5 09409-08352-000 .CLIP 3 Rp19.000
6-1 73640M76T00-HLF LOUVER, SIDE VENT LH R :N/HEADUP DISPLAY (BLACK/CHROME) 1 Rp184.000 N/HEADUP DISPLAY
6-2 73640M76T10-CRU LOUVER, SIDE VENT LH R :W/RETRACTABLE HEADUP DISPLAY (BLACK/CHROME) 1 Rp212.000 W/RETRACTABLE HEADUP DISPLAY
7 09409-08352-000 .CLIP 3 Rp19.000
8 73661M76T00-000 NOZZLE, DFR 1 Rp145.500
9 73662M74L00-000 ADAPTER, DFR NOZZLE 1 Rp21.500
10 73681M76T00-000 DUCT, DEMISTER RH 1 Rp31.000
11 73691M76T00-000 DUCT, DEMISTER LH 1 Rp31.000
12 74620M76T00-000 DUCT, VENT 1 Rp261.500
13 74621M76T00-000 DUCT, CENTER VENT 1 Rp52.000
14 74661M76T00-000 DUCT, REAR VENT NO.1 1 Rp83.500
15 74662M76T00-000 DUCT, REAR VENT NO.2 1 Rp197.500
16 74663M76T00-000 DUCT, REAR VENT NO.3 1 Rp64.000
17 09132M05067-000 SCREW (5X12) 1 Rp12.500
18 09409M07L02-000 CLIP 1 Rp5.500
19 03541-0412A-000 SCREW 3 Rp3.500
20 03541-0516A-000 SCREW 10 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
