Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANEL FRONT BODY PANEL FLOOR PANEL SIDE BODY PANEL ROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPER INSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATOR HEATER UNIT HEATER BLOWER HEATER DOOR EVAPORATOR UNIT HEATER CONTROL CONSOLE BOX FLOOR CARPET INTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAP FUEL LID OPENER ROOF SIDE AIR BAG ROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDING SPLASH GUARD SLIDING ROOF (W/SUNROOF)EMBLEM WINDSHIELD FRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANEL FRONT DOOR REGULATOR REAR DOOR REGULATOR FRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCK MIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT 2ND SEAT BELT FRONT LH SEAT FRONT RH SEAT REAR SEAT PARCEL SHELF FUEL TANK TOOL CONDENSER A/C PIPING COMPRESSOR

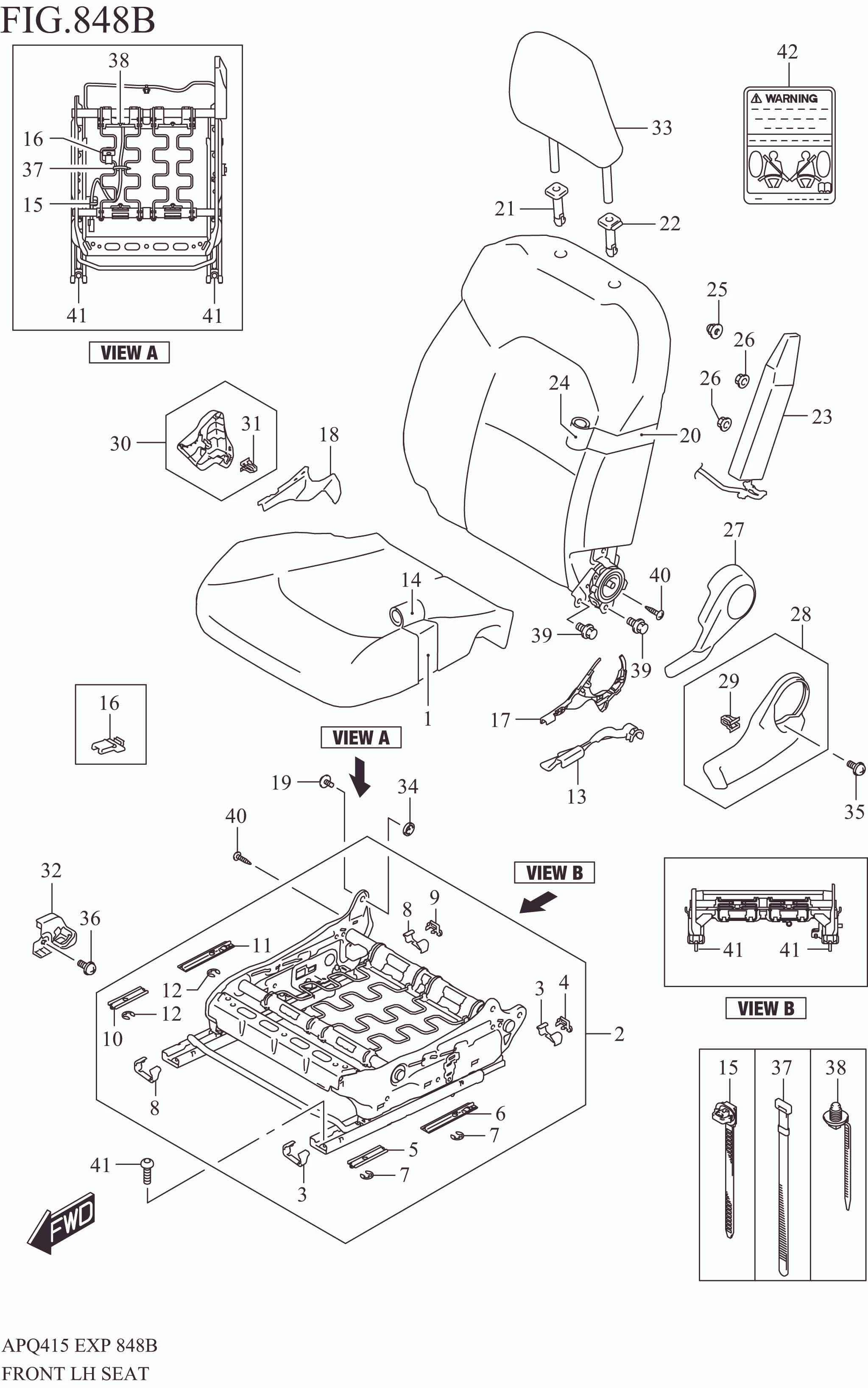

FRONT LH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85107M76T10-000	PAD ASSY, FR CUSH	1	Rp2.248.000
2	85603M66T10-000	FRAME ASSY, FR CUSH LH	1	Rp4.757.500
3	86652M74P50-000	.CAP, FR ADJ LWR	2	Rp5.500
4	86653M74P50-000	.CAP, FR ADJ UPR	1	Rp5.500
5	86656M68P00-000	.PROTECTOR, FR ADJUSTER FR	1	Rp15.000
6	86657-68P00-000	.PROTECTOR, FR ADJUSTER RR	1	Rp10.000
7	86658-68P00-000	.RING, FR ADJUSTER RR	2	Rp6.500
8	86652M74P50-000	.CAP, FR ADJ LWR	2	Rp5.500
9	86653M74P50-000	.CAP, FR ADJ UPR	1	Rp5.500
10	86656M68P00-000	.PROTECTOR, FR ADJUSTER FR	1	Rp15.000
11	86657-68P00-000	.PROTECTOR, FR ADJUSTER RR	1	Rp10.000
12	86658-68P00-000	.RING, FR ADJUSTER RR	2	Rp6.500
13	85726M81R00-000	SUPPORT, FR CUSH PAD LOWER LH	1	Rp175.000
14-1	85680M76T00-EYD	TRIM, FR CUSH LH R :W/FABRIC SEAT (BLACK/SILVER)	1	Rp831.500	W/FABRIC SEAT
14-2	85680M76T10-EYF	TRIM, FR CUSH LH R :W/LEATHER SEAT (BLACK/SILVER)	1	Rp3.029.500	W/LEATHER SEAT
15	85191M74L00-000	CLAMP	1	Rp9.000
16	85192-74P00-000	HOLDER, HARNESS	1	Rp6.500
17	85242M68P00-5PK	COVER, FR RCLNG INS LWR LH (BLACK)	1	Rp22.000
18	85242M68P10-5PK	COVER, RCLNG INS LWR LH (BLACK)	1	Rp23.000
19	85295M58J01-000	BOLT, FR BACK FIX	1	Rp9.000
20-1	85306M76TA0-000	BACK ASSY, FR LH R :W/FABRIC SEAT	1	Rp4.599.500	W/FABRIC SEAT
20-2	85306M76TB0-000	BACK ASSY, FR LH R :W/LEATHER SEAT	1	Rp4.610.500	W/LEATHER SEAT
21	85341M76T00-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp54.000
22	85840M76T00-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp61.000
23	85850M76T00-000	MODULE ASSY, SIDE AIR BAG R :SEE NOTE	1	Rp1.949.000	NOTE : SPECIAL PROCEDURES ARE REQUIRED FOR SERVICING OR REPLACING AN AIR BAG. FOR THAT REASON, ONLY A FACTORY-AUTHORIZED DEALE
24-1	85880M76TA0-EYD	TRIM, FR BACK LH R :W/FABRIC SEAT (BLACK/SILVER)	1	Rp1.644.000	W/FABRIC SEAT
24-2	85880M76TB0-EYF	TRIM, FR BACK LH R :W/LEATHER SEAT (BLACK/SILVER)	1	Rp5.609.500	W/LEATHER SEAT
25	08313-2006A-000	NUT	1	Rp14.000
26	08319-3106A-000	NUT	2	Rp6.500
27	85711M76T00-5PK	KNOB, RCLNG LH (BLACK)	1	Rp110.500
28	85720M52R00-5PK	COVER, FR RCLNG OUT LH (BLACK)	1	Rp34.000
29	85249M68P00-000	.CLIP	1	Rp9.500
30	85741M76T00-5PK	COVER, FR RCLNG INSIDE LH (BLACK)	1	Rp52.000
31	85249M68P00-000	.CLIP	1	Rp9.500
32	85781M76T00-000	COVER, FR HARNESS BRKT LH	1	Rp15.000
33-1	86401M76T00-EYE	HEADRESTRAINT ASSY, FR R :W/FABRIC SEAT (BLACK/SILVER)	1	Rp1.411.000	W/FABRIC SEAT
33-2	86401M76T30-EYG	HEADRESTRAINT ASSY, FR R :W/LEATHER SEAT (BLACK/SILVER)	1	Rp2.776.000	W/LEATHER SEAT
34	87286-81P00-000	BUSH, FR BACK FIX	1	Rp37.000
35	09132-04037-000	SCREW (4X10)	1	Rp15.000
36	09132-04037-000	SCREW (4X10)	1	Rp15.000
37	09407M14403-000	CLAMP (L:125)	1	Rp5.000
38	09407M17404-000	CLAMP (L:170)	1	Rp8.500
39	01550-1016A-000	BOLT	2	Rp5.500
40	03541-0410A-000	SCREW	2	Rp11.000
41	09119M08118-000	BOLT (8X25)	4	Rp6.500
42	DISCONTINUE SUB: 85354-59JC1-000	LABEL, SIDE AIRBAG	1	-
