Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

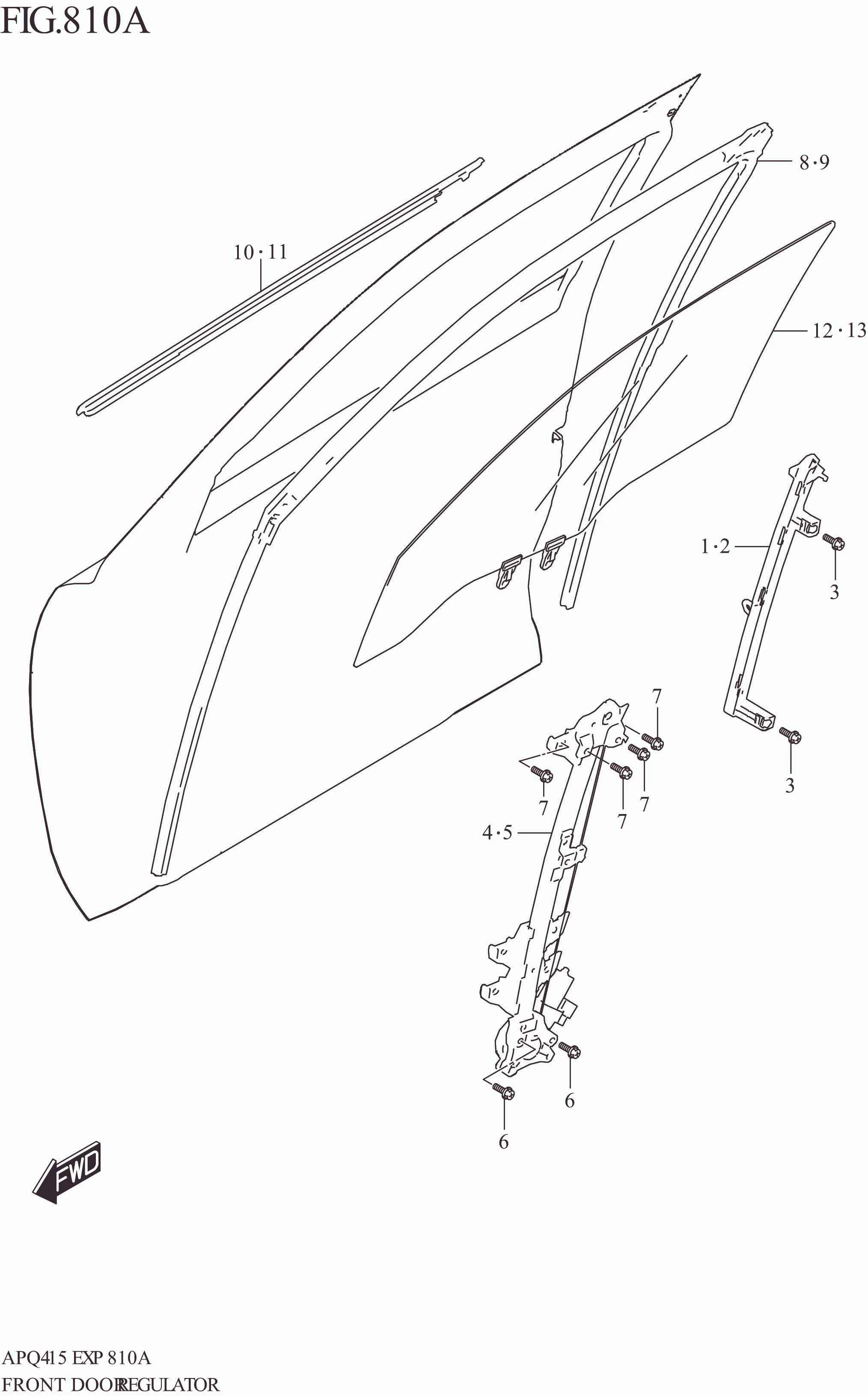

FRONT DOOR REGULATOR

FRONT DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 81730M76T00-000 SASH, FR DR REAR LOWER RH 1 Rp37.000
2 81740M76T00-000 SASH, FR DR REAR LOWER LH 1 Rp37.000
3 02162-0612A-000 SCREW 4 Rp11.000
4 83401M76T10-000 REGULATOR ASSY, FRONT WINDOW RH 1 Rp230.000
5 83402M76T00-000 REGULATOR ASSY, FRONT WINDOW LH 1 Rp230.000
6 02162-0612A-000 SCREW 4 Rp11.000
7 02162-0612A-000 SCREW 10 Rp11.000
8 83661M76T00-000 RUN, FRONT DOOR GLASS RH 1 Rp319.000
9 83665M76T00-000 RUN, FRONT DOOR GLASS LH 1 Rp319.000
10-1 83811M76T00-000 WEATHERSTRIP, FRONT DOOR OUT R :GL RH 1 Rp127.000 GL
10-2 83811M76T10-000 WEATHERSTRIP, FRONT DOOR OUT R :GLX RH 1 Rp309.000 GLX
11-1 83821M76T00-000 WEATHERSTRIP, FRONT DOOR OUT R :GL LH 1 Rp127.000 GL
11-2 83821M76T10-000 WEATHERSTRIP, FRONT DOOR OUT R :GLX LH 1 Rp309.000 GLX
12-1 84501M76T00-000 GLASS, FRONT DOOR WINDOW RH R :GL R :GREEN 1 Rp493.500 GL
12-2 84501M76T10-000 GLASS, FRONT DOOR WINDOW RH R :GLX R :GREEN 1 Rp936.000 GLX
13-1 84502M76T00-000 GLASS, FRONT DOOR WINDOW LH R :GL R :GREEN 1 Rp493.500 GL
13-2 84502M76T10-000 GLASS, FRONT DOOR WINDOW LH R :GLX R :GREEN 1 Rp936.000 GLX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
