Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

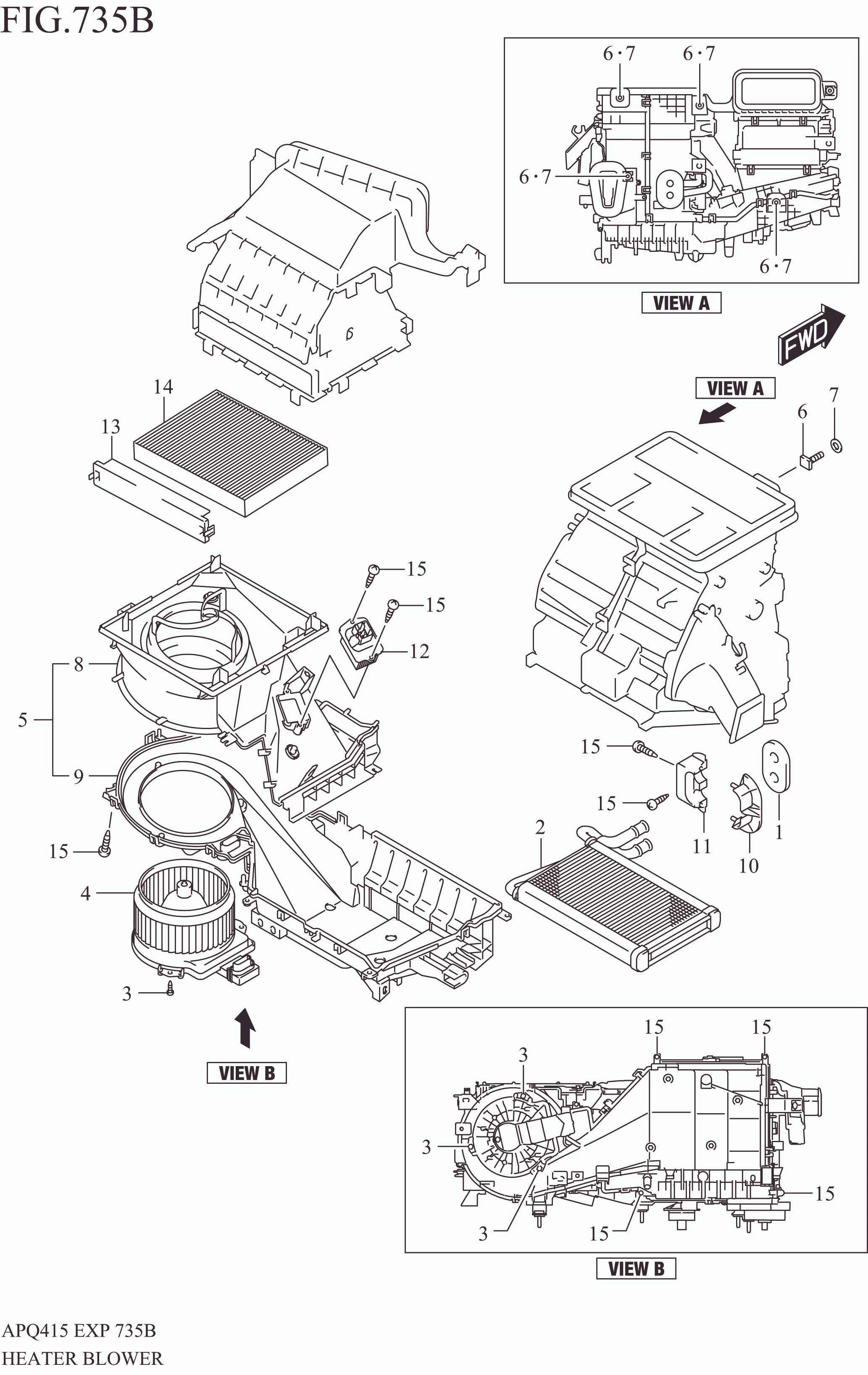

HEATER BLOWER

HEATER BLOWER
No No. Part Description Qty Price Per Pcs Remarks
1 74118-63J01-000 PACKING 1 Rp74.000
2 74120M85S00-000 CORE ASSY, HTR 1 Rp1.074.000
3 74135-82000-000 SCREW, MOTOR 3 Rp19.500
4 74150M66T00-000 MOTOR ASSY W/FAN 1 Rp1.764.500
5 74220M76T00-000 CASE, BLOWER 1 Rp520.000
6 74119-78F10-000 .BUSH 4 Rp8.000
7 74119M79M00-000 .BOLT 4 Rp9.000
8 74211M76T00-000 .CASE, BLOWER UPR 1 Rp193.000
9 74212M76T00-000 .CASE, BLOWER LWR 1 Rp244.000
10 74221M65M00-000 BRACKET HTR PIPE 1 Rp27.000
11 74221M79M10-000 BRACKET HTR PIPE 1 Rp22.500
12 95626M79M00-000 POWER TRANSISTOR ASSY, BLO 1 Rp743.000
13 95861M79M10-000 HOLDER, FLTR 1 Rp22.500
14 95862M76T00-000 FILTER ASSY 1 Rp277.500
15 03112-0416A-000 SCREW 9 Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
