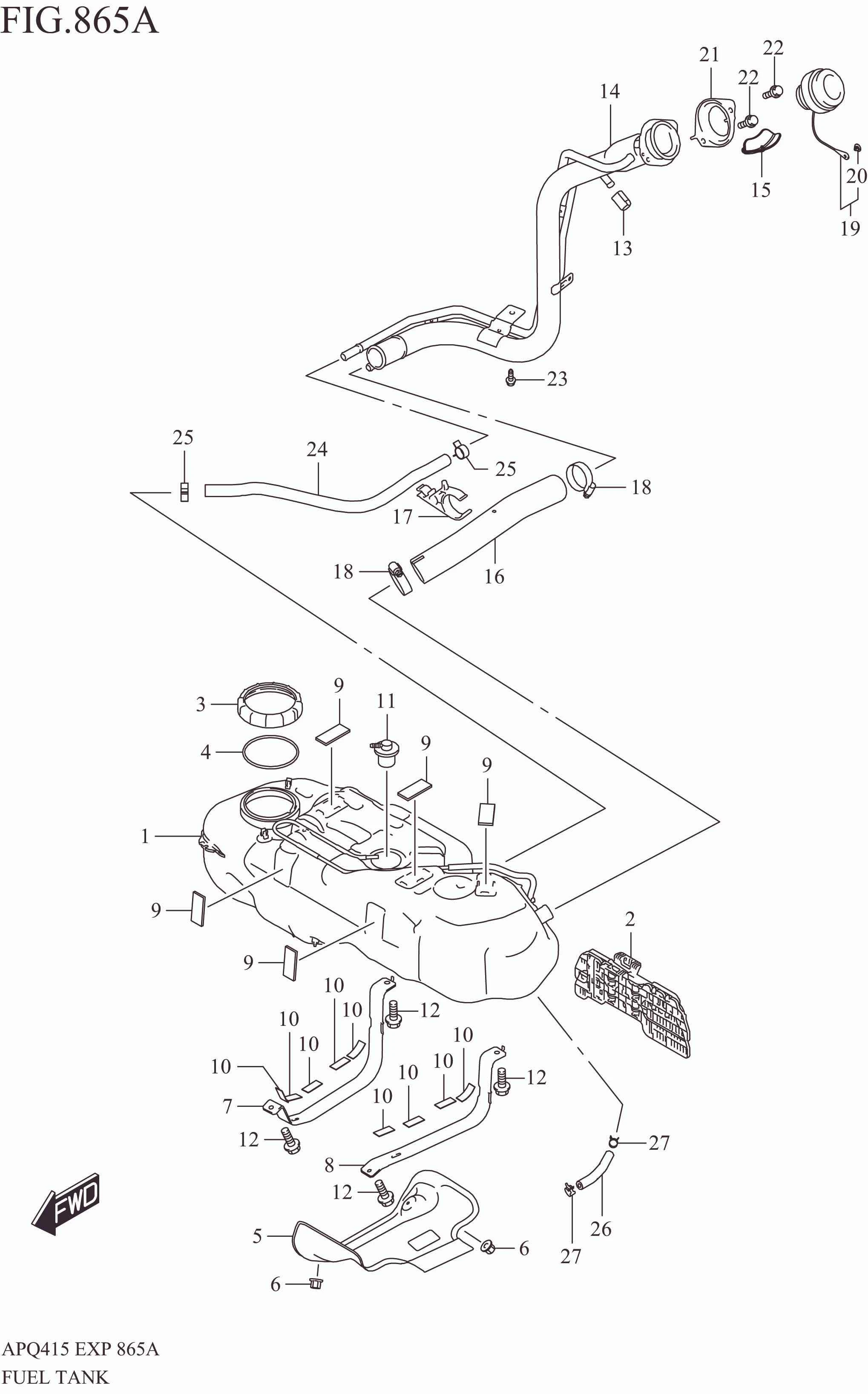

FUEL TANK

FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101M76T00-000 TANK, FUEL 1 Rp2.840.000
2 89185M76T00-000 PLATE, FUEL TANK BAFFLE 1 Rp361.500
3 89191M66R00-000 NUT, FUEL PUMP LOCK 1 Rp75.500
4 89192-62J00-000 O RING, FUEL PUMP 1 Rp313.500
5 89311M76T00-000 INSULATOR, HEAT 1 Rp238.000
6 89315M74L10-000 NUT, HEAT INSULATOR 2 Rp6.500
7 89360M76T00-000 BELT, FUEL TANK FIXER RH 1 Rp143.000
8 89370M76T00-000 BELT, FUEL TANK FIXER LH 1 Rp143.000
9 89385M76T00-000 PAD, FUEL TANK 5 Rp129.000
10 89386M76T00-000 PAD, FUEL TANK BELT 9 Rp99.500
11 89480M76T00-000 VALVE, FUEL EVAP 1 Rp186.000
12 09118-10078-000 BOLT (10X30) 4 Rp19.000
13 DISCONTINUE
SUB: 18571-74S00-000		 FILTER, AIR SUCTION 1 -
14 89210M76T10-000 NECK, FUEL FILLER 1 Rp1.228.000
15 89232M74L00-000 COVER, FUEL FILLER NECK 1 Rp11.000
16 89241M76T00-000 HOSE, FUEL TANK FILLER 1 Rp114.000
17 89242M55K10-000 CLAMP, FILLER & BREATHER HOSE 1 Rp22.500
18 89243M68PA0-000 CLAMP, FUEL FILLER HOSE 2 Rp41.000
19 89260M60MA0-000 CAP ASSY, FUEL FILLER 1 Rp599.500
20 89267M60M00-000 .CLIP, CAP TETHER 1 Rp14.000
21 89285M58J00-000 PACKING, FUEL FILLER 1 Rp13.500
22 09116-05023-000 BOLT (5X20) 2 Rp18.500
23 DISCONTINUE
SUB: 09116-06205-000		 BOLT (6X16) 1 -
24 09355M11189-440 HOSE (11X17.8X440) 1 Rp134.500
25 09401M16L01-000 CLIP 2 Rp9.000
26 18888M75J00-080 HOSE 1 Rp7.500
27 09401M11432-000 CLIP (ID:11.1) 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
