Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

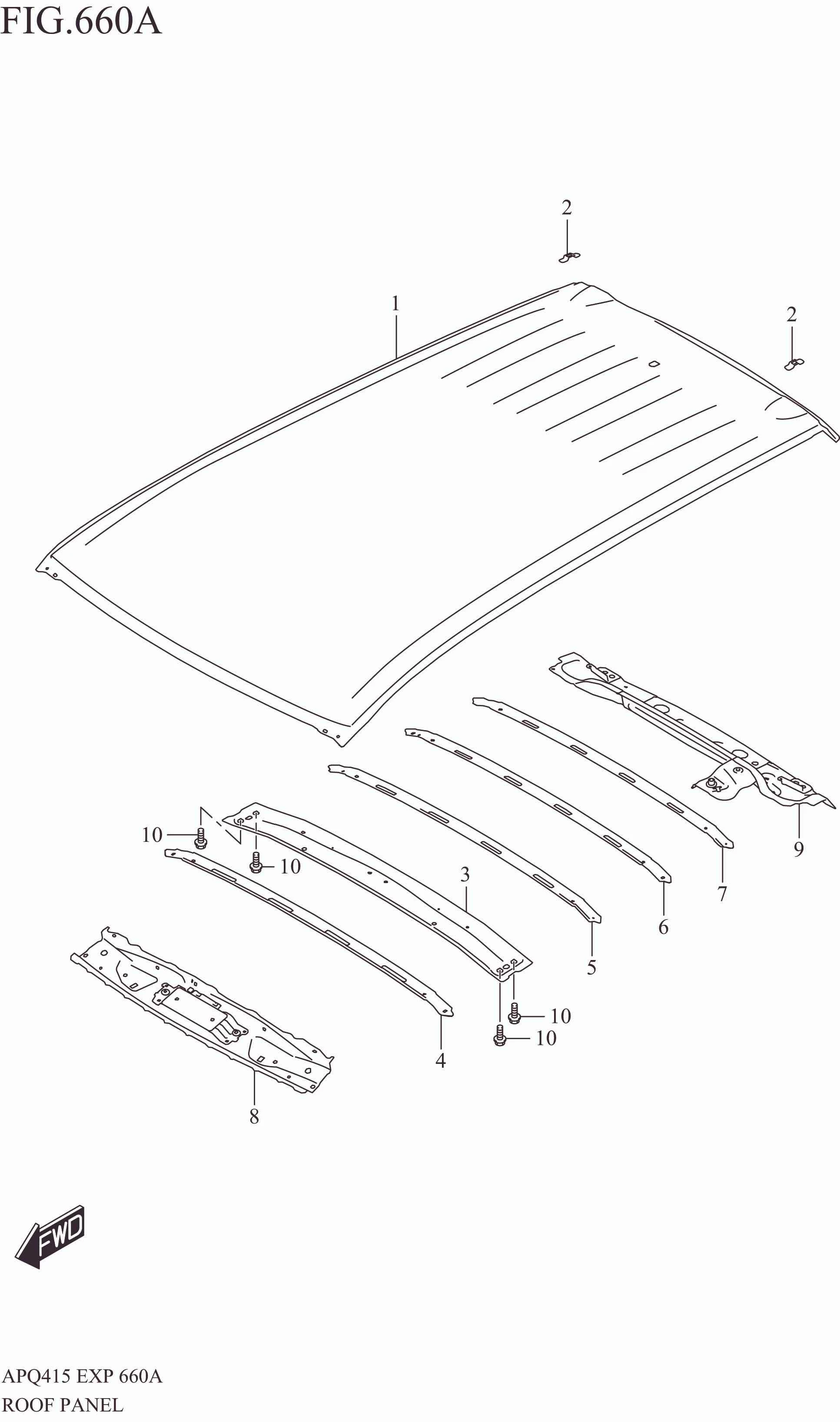

ROOF PANEL (N/SUNROOF)

ROOF PANEL (N/SUNROOF)
No No. Part Description Qty Price Per Pcs Remarks
1 65111M76T20-000 PANEL, ROOF 1 Rp6.434.500
2 65112M61M00-000 BRACKET, ROOF RAIL 2 Rp9.000
3 65151M76T00-000 MEMBER, ROOF PANEL CTR 1 Rp429.500
4 65161M76T00-000 MEMBER, ROOF PANEL NO.1 1 Rp98.500
5 65162M76T00-000 MEMBER, ROOF PANEL NO.2 1 Rp116.500
6 65163M76T00-000 MEMBER, ROOF PANEL NO.3 1 Rp116.500
7 65164M76T00-000 MEMBER, ROOF PANEL NO.4 1 Rp116.500
8 65120M76T00-000 MEMBER, ROOF FRONT INNER 1 Rp722.500
9 65130M76T10-000 MEMBER, ROOF BACK INNER 1 Rp1.060.500
10 01550M0612A-000 BOLT 4 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
