Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

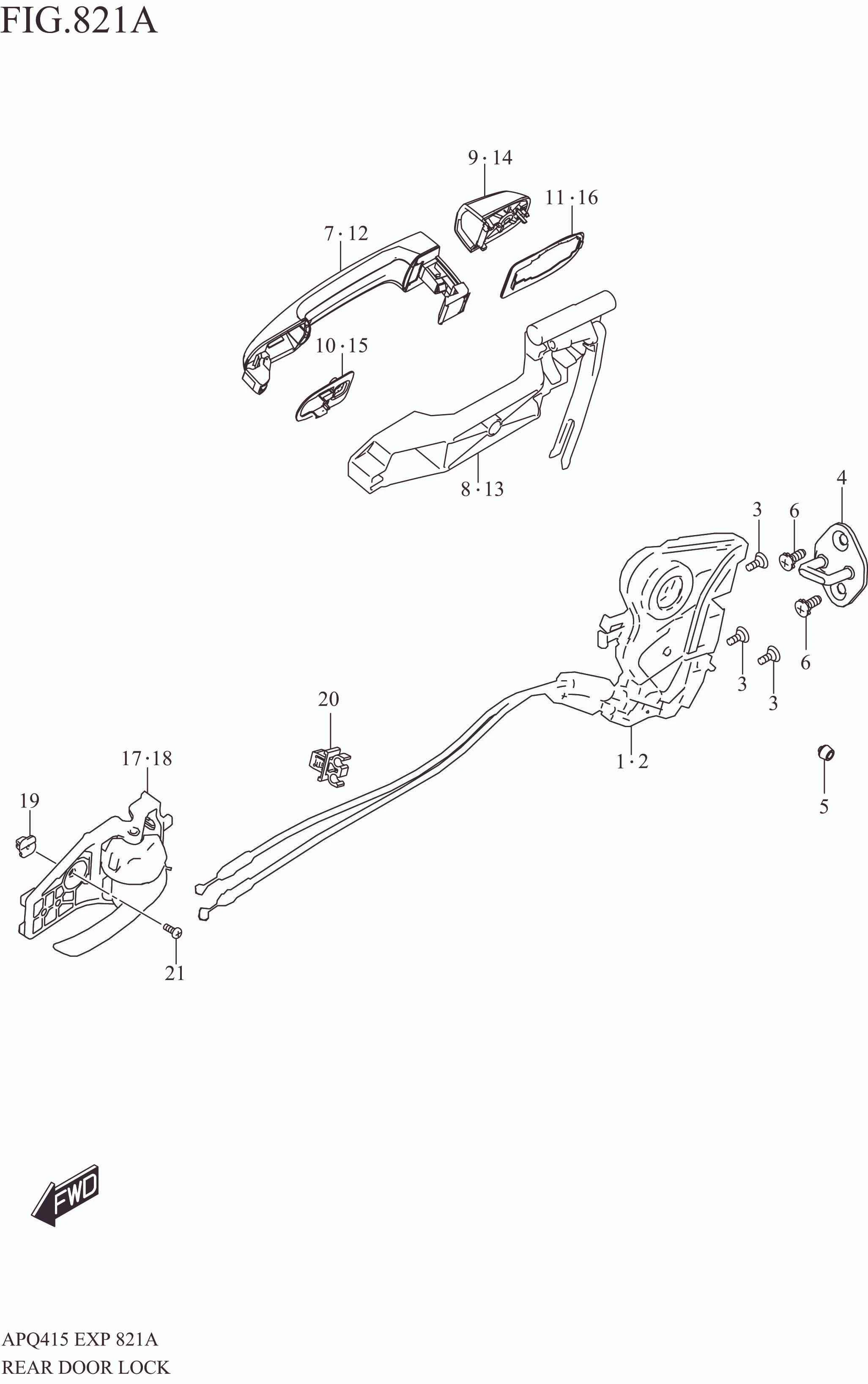

REAR DOOR LOCK

REAR DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82301M76T10-000 LATCH ASSY, REAR DOOR RH 1 Rp459.500
2 82302M76T10-000 LATCH ASSY, REAR DOOR LH 1 Rp459.500
3 09137-06032-000 SCREW (6X18) 6 Rp16.500
4 82610M76M01-000 STRIKER, DR LATCH 2 Rp27.000
5 82711-65J00-000 CUSHION 4 Rp34.000
6 09139-08025-000 SCREW (8X20) 4 Rp23.000
7-14 82812M76T00-ZQD HANDLE, SIDE DOOR OUT RH R :GLX (BLACK) 1 Rp129.500 GLX
7-13 82812M76T00-ZHJ HANDLE, SIDE DOOR OUT RH R :GLX (WHITE) R :BODY COLOR:C9J,ZHJ 1 Rp129.500 GLX
7-12 82812M76T00-ZAM HANDLE, SIDE DOOR OUT RH R :GLX (BLACK) 1 Rp129.500 GLX
7-11 82812M76T00-WBH HANDLE, SIDE DOOR OUT RH R :GLX (BLUE) 1 Rp309.000 GLX
7-10 82812M76T00-WBG HANDLE, SIDE DOOR OUT RH (RED)R :GLX R :BODY COLOR:ESL,WBG 1 Rp129.500 GLX
7-9 82812M76T00-WBF HANDLE, SIDE DOOR OUT RH R :GLX (GRAY) 1 Rp129.500 GLX
7-8 82812M76T00-WBE HANDLE, SIDE DOOR OUT RH R :GLX (SILVER) R :BODY COLOR:ERD,WBE 1 Rp129.500 GLX
7-6 82812M76T00-ZHJ HANDLE, SIDE DOOR OUT RH R :GL (WHITE) 1 Rp129.500 GL
7-5 82812M76T00-ZAM HANDLE, SIDE DOOR OUT RH R :GL (BLACK) 1 Rp129.500 GL
7-4 82812M76T00-WBH HANDLE, SIDE DOOR OUT RH R :GL (BLUE) 1 Rp309.000 GL
7-3 82812M76T00-WBG HANDLE, SIDE DOOR OUT RH (RED)R :GL 1 Rp129.500 GL
7-2 82812M76T00-WBF HANDLE, SIDE DOOR OUT RH R :GL (GRAY) 1 Rp129.500 GL
7-1 82812M76T00-WBE HANDLE, SIDE DOOR OUT RH R :GL (SILVER) 1 Rp129.500 GL
7-7 82812M76T00-ZQD HANDLE, SIDE DOOR OUT RH R :GL (BLACK) 1 Rp129.500 GL
8 82831M76T00-000 FRAME, REAR DOOR OUT RH 1 Rp133.500
9-5 82833M76T00-ZAM CAP, REAR DOOR OUT RH (BLACK) R :GL 1 Rp13.000 GL
9-14 82833M76T00-ZQD CAP, REAR DOOR OUT RH (BLACK) R :GLX 1 Rp13.000 GLX
9-13 82833M76T00-ZHJ CAP, REAR DOOR OUT RH (WHITE) R :GLX R :BODY COLOR:C9J,ZHJ 1 Rp13.000 GLX
9-12 82833M76T00-ZAM CAP, REAR DOOR OUT RH (BLACK) R :GLX 1 Rp13.000 GLX
9-11 82833M76T00-WBH CAP, REAR DOOR OUT RH (BLUE) R :GLX 1 Rp13.000 GLX
9-10 82833M76T00-WBG CAP, REAR DOOR OUT RH (RED) R :GLX R :BODY COLOR:ESL,WBG 1 Rp13.000 GLX
9-9 82833M76T00-WBF CAP, REAR DOOR OUT RH (GRAY) R :GLX 1 Rp13.000 GLX
9-8 82833M76T00-WBE CAP, REAR DOOR OUT RH (SILVER)R :GLX R :BODY COLOR:ERD,WBE 1 Rp13.000 GLX
9-7 82833M76T00-ZQD CAP, REAR DOOR OUT RH (BLACK) R :GL 1 Rp13.000 GL
9-6 82833M76T00-ZHJ CAP, REAR DOOR OUT RH (WHITE) R :GL 1 Rp13.000 GL
9-4 82833M76T00-WBH CAP, REAR DOOR OUT RH (BLUE) R :GL 1 Rp13.000 GL
9-3 82833M76T00-WBG CAP, REAR DOOR OUT RH (RED) R :GL 1 Rp13.000 GL
9-2 82833M76T00-WBF CAP, REAR DOOR OUT RH (GRAY) R :GL 1 Rp13.000 GL
9-1 82833M76T00-WBE CAP, REAR DOOR OUT RH (SILVER)R :GL 1 Rp13.000 GL
10 82814M76T00-000 PAD, REAR DOOR OUT RH 1 Rp5.500
11 82815M76T00-000 CUSHION, SIDE DOOR OUT RH 1 Rp6.000
12-2 82812M76T00-WBF HANDLE, SIDE DOOR OUT LH R :GL (GRAY) 1 Rp129.500 GL
12-1 82812M76T00-WBE HANDLE, SIDE DOOR OUT LH R :GL (SILVER) 1 Rp129.500 GL
12-14 82812M76T00-ZQD HANDLE, SIDE DOOR OUT LH R :GLX (BLACK) 1 Rp129.500 GLX
12-13 82812M76T00-ZHJ HANDLE, SIDE DOOR OUT LH R :GLX (WHITE) R :BODY COLOR:C9J,ZHJ 1 Rp129.500 GLX
12-12 82812M76T00-ZAM HANDLE, SIDE DOOR OUT LH R :GLX (BLACK) 1 Rp129.500 GLX
12-11 82812M76T00-WBH HANDLE, SIDE DOOR OUT LH R :GLX (BLUE) 1 Rp309.000 GLX
12-10 82812M76T00-WBG HANDLE, SIDE DOOR OUT LH (RED)R :GLX R :BODY COLOR:ESL,WBG 1 Rp129.500 GLX
12-9 82812M76T00-WBF HANDLE, SIDE DOOR OUT LH R :GLX (GRAY) 1 Rp129.500 GLX
12-8 82812M76T00-WBE HANDLE, SIDE DOOR OUT LH R :GLX (SILVER) R :BODY COLOR:ERD,WBE 1 Rp129.500 GLX
12-7 82812M76T00-ZQD HANDLE, SIDE DOOR OUT LH R :GL (BLACK) 1 Rp129.500 GL
12-6 82812M76T00-ZHJ HANDLE, SIDE DOOR OUT LH R :GL (WHITE) 1 Rp129.500 GL
12-5 82812M76T00-ZAM HANDLE, SIDE DOOR OUT LH R :GL (BLACK) 1 Rp129.500 GL
12-4 82812M76T00-WBH HANDLE, SIDE DOOR OUT LH R :GL (BLUE) 1 Rp309.000 GL
12-3 82812M76T00-WBG HANDLE, SIDE DOOR OUT LH (RED)R :GL 1 Rp129.500 GL
13 82841M76T00-000 FRAME, REAR DOOR OUT LH 1 Rp133.500
14-14 82833M76T00-ZQD CAP, REAR DOOR OUT LH (BLACK) R :GLX 1 Rp13.000 GLX
14-13 82833M76T00-ZHJ CAP, REAR DOOR OUT LH (WHITE) R :GLX R :BODY COLOR:C9J,ZHJ 1 Rp13.000 GLX
14-12 82833M76T00-ZAM CAP, REAR DOOR OUT LH (BLACK) R :GLX 1 Rp13.000 GLX
14-4 82833M76T00-WBH CAP, REAR DOOR OUT LH (BLUE) R :GL 1 Rp13.000 GL
14-11 82833M76T00-WBH CAP, REAR DOOR OUT LH (BLUE) R :GLX 1 Rp13.000 GLX
14-10 82833M76T00-WBG CAP, REAR DOOR OUT LH (RED) R :GLX R :BODY COLOR:ESL,WBG 1 Rp13.000 GLX
14-9 82833M76T00-WBF CAP, REAR DOOR OUT LH (GRAY) R :GLX 1 Rp13.000 GLX
14-8 82833M76T00-WBE CAP, REAR DOOR OUT LH (SILVER)R :GLX R :BODY COLOR:ERD,WBE 1 Rp13.000 GLX
14-7 82833M76T00-ZQD CAP, REAR DOOR OUT LH (BLACK) R :GL 1 Rp13.000 GL
14-6 82833M76T00-ZHJ CAP, REAR DOOR OUT LH (WHITE) R :GL 1 Rp13.000 GL
14-5 82833M76T00-ZAM CAP, REAR DOOR OUT LH (BLACK) R :GL 1 Rp13.000 GL
14-3 82833M76T00-WBG CAP, REAR DOOR OUT LH (RED) R :GL 1 Rp13.000 GL
14-2 82833M76T00-WBF CAP, REAR DOOR OUT LH (GRAY) R :GL 1 Rp13.000 GL
14-1 82833M76T00-WBE CAP, REAR DOOR OUT LH (SILVER)R :GL 1 Rp13.000 GL
15 82814M76T00-000 PAD, REAR DOOR OUT LH 1 Rp5.500
16 82815M76T00-000 CUSHION, SIDE DOOR OUT LH 1 Rp6.000
17 83110M76T10-C48 HANDLE, SIDE DOOR INSIDE RH (CHROME/BLACK) 1 Rp154.500
18 83130M76T10-C48 HANDLE, SIDE DOOR INSIDE LH (CHROME/BLACK) 1 Rp154.500
19 83119M75J00-000 NUT, SIDE DR INS HANDLE 2 Rp5.500
20 83271M66R00-000 CLIP 2 Rp6.500
21 09132-05069-000 SCREW 2 Rp20.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
