Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

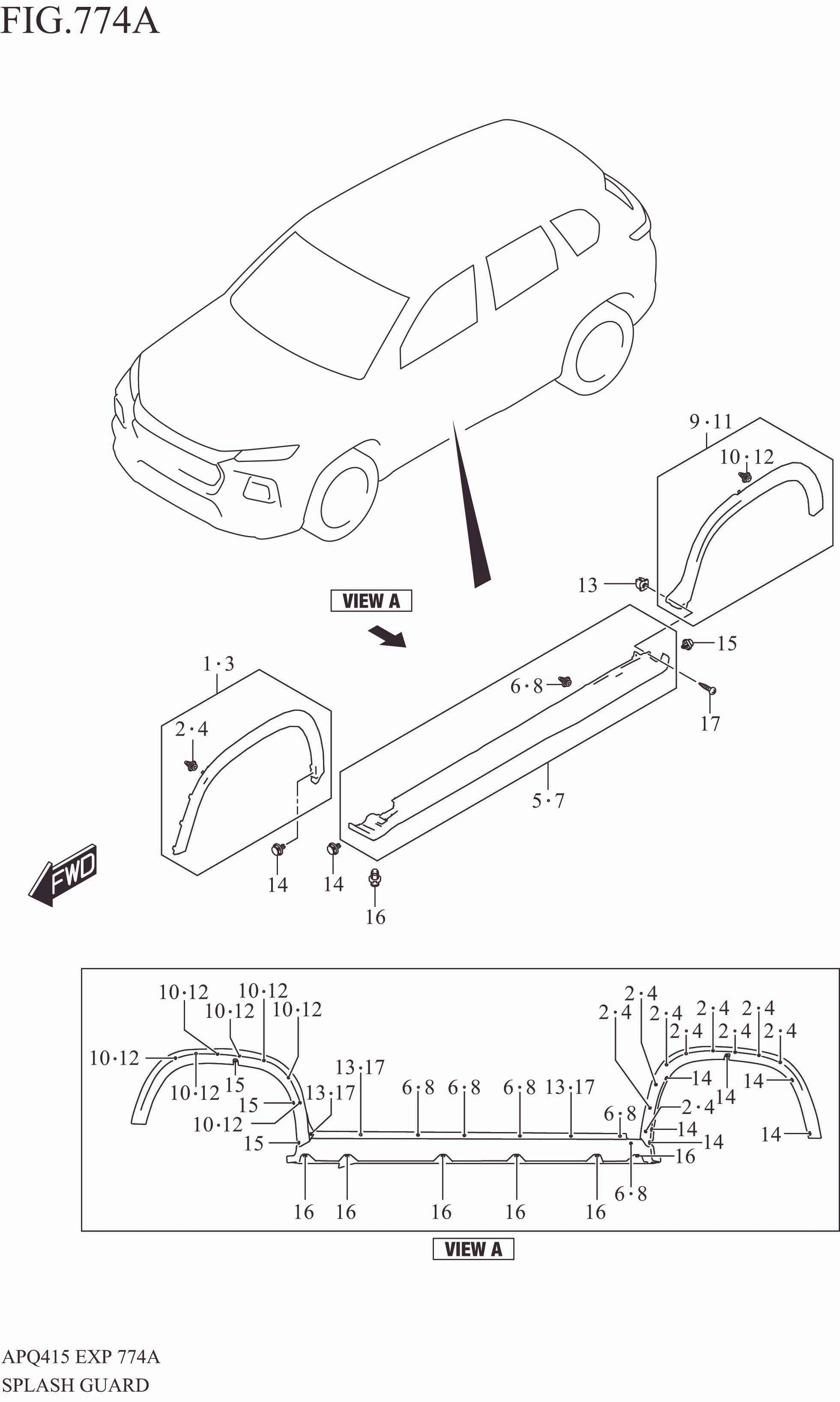

SPLASH GUARD

SPLASH GUARD
No No. Part Description Qty Price Per Pcs Remarks
1 77210M76T00-5PK GUARD ASSY, FR FENDER SPLASH RH (BLACK) 1 Rp159.500
2 09409M10321-000 .CLIP 9 Rp5.000
3 77220M76T00-5PK GUARD ASSY, FR FENDER SPLASH LH (BLACK) 1 Rp159.500
4 09409M10321-000 .CLIP 9 Rp5.000
5 77230M76T00-5PK GUARD ASSY, SIDE SILL SPLASH RH (BLACK) 1 Rp368.000
6 77232M76T00-000 .CLIP 5 Rp4.500
7 77240M76T00-5PK GUARD ASSY, SIDE SILL SPLASH LH (BLACK) 1 Rp368.000
8 77232M76T00-000 .CLIP 5 Rp4.500
9 77250M76T01-5PK
SUB: 77250M76T00-5PK		 GUARD ASSY, RR FENDER SPLASH RH (BLACK) 1 Rp139.500
10 71812M78F00-000 .CLIP 7 Rp8.000
11 77260M76T00-5PK GUARD ASSY, RR FENDER SPLASH LH (BLACK) 1 Rp139.500
12 71812M78F00-000 .CLIP 7 Rp8.000
13 09148M05078-000 NUT 6 Rp6.000
14 09409M07L01-000 CLIP 12 Rp5.000
15 09409M07L01-000 CLIP 6 Rp5.000
16 09409M15L01-000 CLIP 12 Rp5.500
17 03511-0512E-000 SCREW 6 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
