Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

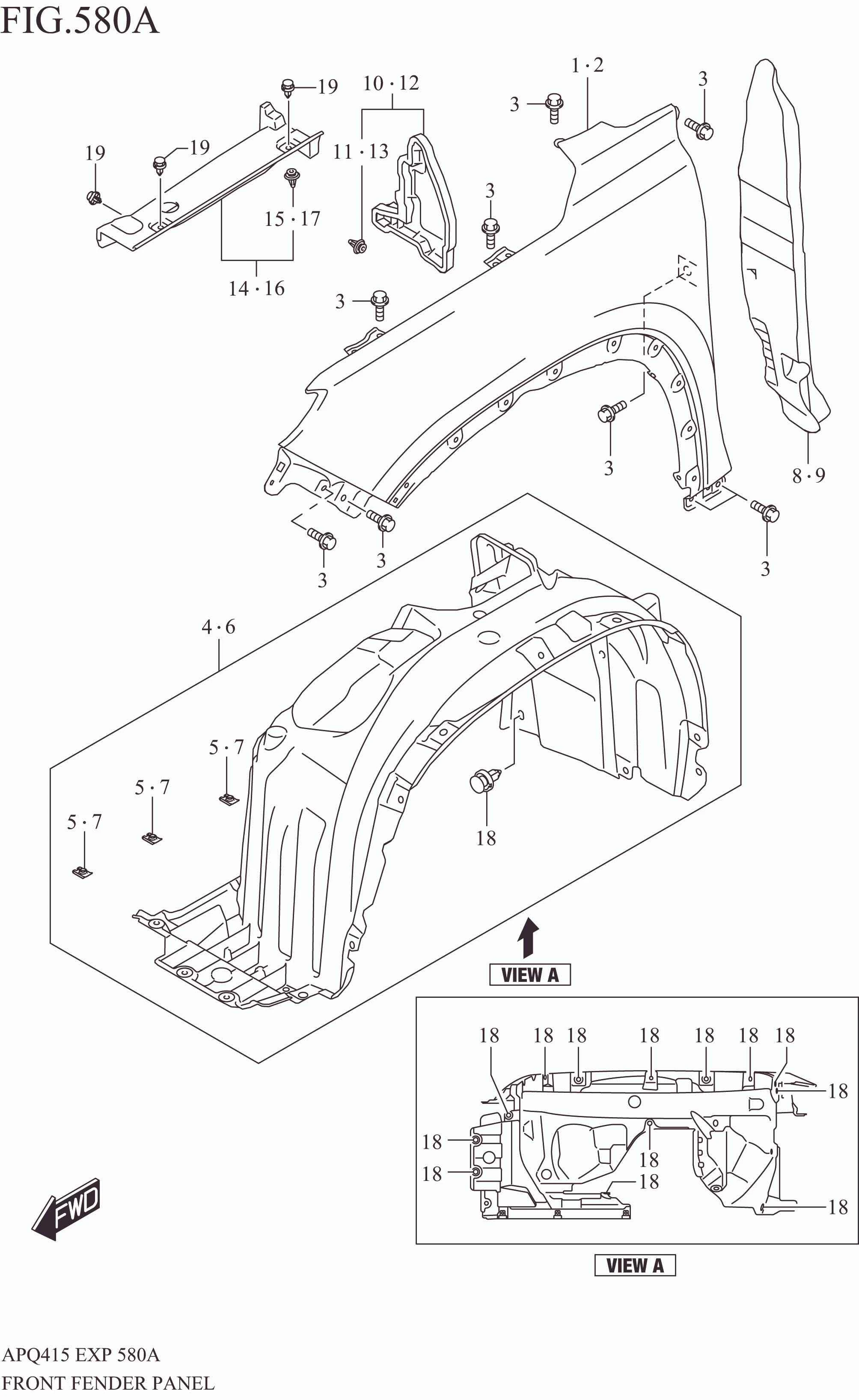

FRONT FENDER PANEL

FRONT FENDER PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 57611M76T00-000 PANEL, FRONT FENDER RH 1 Rp603.000
2 57711M76T00-000 PANEL, FRONT FENDER LH 1 Rp603.000
3 01550M0612A-000 BOLT 18 Rp5.000
4 72321M76T00-000 LINING, FRONT FENDER RH 1 Rp354.500
5 09148M05071-000 .NUT 3 Rp6.000
6 72322M76T00-000 LINING, FRONT FENDER LH 1 Rp354.500
7 09148M05071-000 .NUT 3 Rp6.000
8 72351M76T00-000 PAD, FRONT FENDER REAR RH 1 Rp136.500
9 72352M76T00-000 PAD, FRONT FENDER REAR LH 1 Rp136.500
10 72360M76T00-000 SILENCER, FR FENDER FR RH 1 Rp83.500
11 09409M10321-000 .CLIP 1 Rp5.000
12 72370M76T00-000 SILENCER, FR FENDER FR LH 1 Rp83.500
13 09409M10321-000 .CLIP 1 Rp5.000
14 72460M76T00-000 COVER, FR FENDER UPPER RH 1 Rp40.000
15 09409M10321-000 .CLIP 1 Rp5.000
16 72470M76T00-000 COVER, FR FENDER UPPER LH 1 Rp40.000
17 09409M10321-000 .CLIP 1 Rp5.000
18 09409M07L01-000 CLIP 28 Rp5.000
19 09409M08006-000 CLIP 6 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
