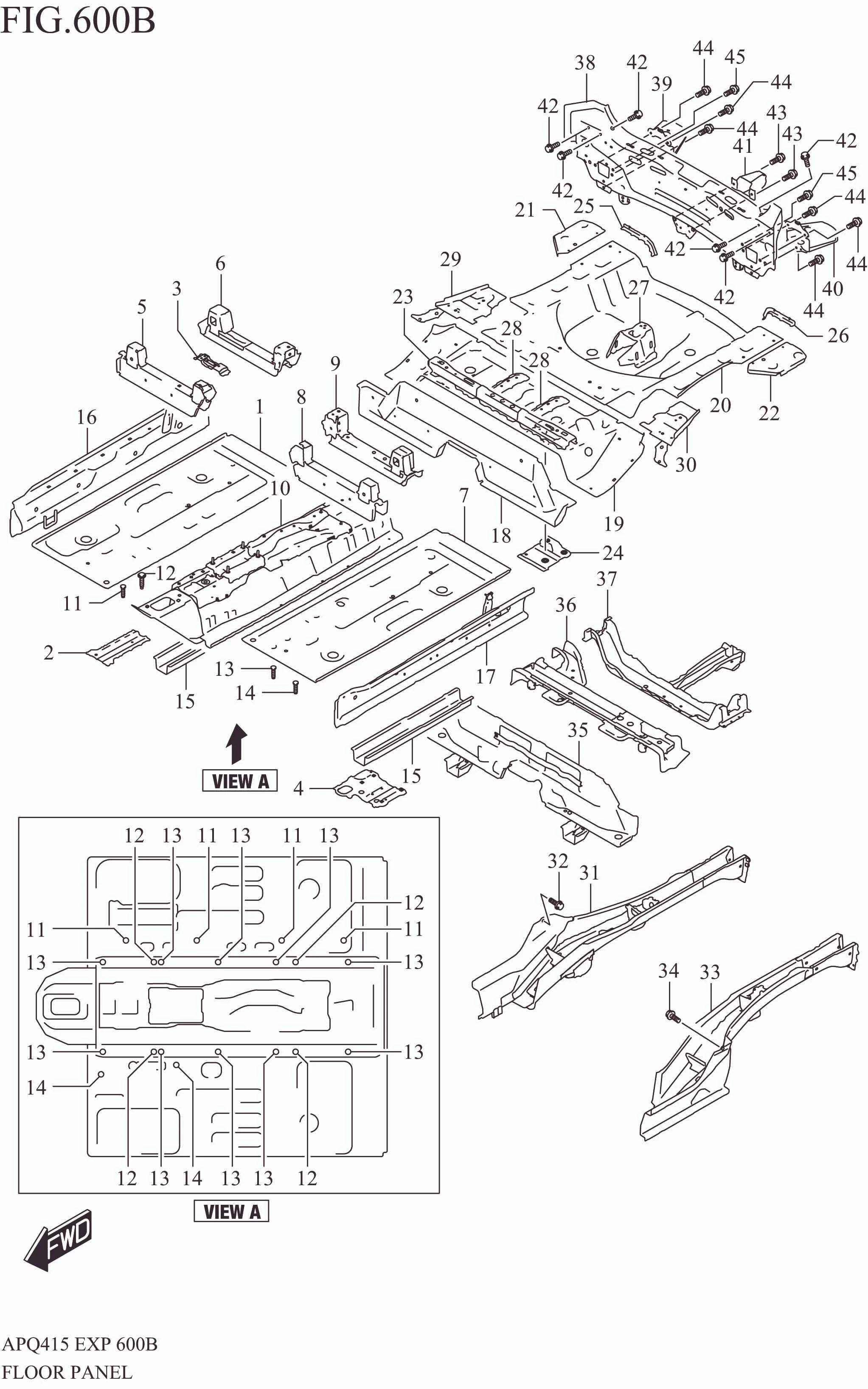

FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61111M76T00-000	PAN, MAIN FLOOR RH	1	Rp1.278.500
2	61112M76T00-000	REINF, MAIN FLOOR	1	Rp147.000
3	61113M64M00-000	BRACKET, FIRE EXTINGUISHER	1	Rp27.500
4	61117M66T10-000	REINF, MAIN FLOOR NO.2	1	Rp227.500
5	61130M76T00-000	CROSSMEMBER, FLR PAN UPR RH	1	Rp955.000
6	61140M76T00-000	CROSSMEMBER, FLR PAN RR RH	1	Rp1.005.500
7	61161M76T00-000	PAN, MAIN FLOOR LH	1	Rp1.278.500
8	61180M76T00-000	CROSSMEMBER, FLR PAN UPR LH	1	Rp955.000
9	61190M76T00-000	CROSSMEMBER, FLR PAN RR LH	1	Rp1.005.500
10	61200M76T00-000	TUNNEL, MAIN FLOOR	1	Rp4.401.500
11	09119-05018-000	BOLT (5X14.3)	4	Rp13.000
12	09119-05018-000	BOLT (5X14.3)	4	Rp13.000
13	09119-05018-000	BOLT (5X14.3)	10	Rp13.000
14	09119-06094-000	BOLT (6X23)	2	Rp19.500
15	61241M76T00-000	MEMBER, FLOOR SIDE REAR	2	Rp381.500
16	61310M76T00-000	PANEL, SIDE SILL INNER RH	1	Rp1.364.000
17	61320M76T00-000	PANEL, SIDE SILL INNER LH	1	Rp1.364.000
18	61511M76T00-000	PANEL, REAR FLOOR FR	1	Rp1.310.500
19	61512M76T00-000	PANEL, REAR FLOOR CTR	1	Rp1.866.500
20	61513M76T00-000	PANEL, REAR FLOOR RR	1	Rp1.914.000
21-1	61514M76T00-000	EXTENSION, RR FLOOR SIDE RH R :N/SUNROOF	1	Rp73.500	N/SUNROOF
21-2	61514M76T10-000	EXTENSION, RR FLOOR SIDE RH R :W/SUNROOF	1	Rp73.500	W/SUNROOF
22-2	61515M76T10-000	EXTENSION, RR FLOOR SIDE LH R :W/SUNROOF	1	Rp73.500	W/SUNROOF
22-1	61515M76T00-000	EXTENSION, RR FLOOR SIDE LH R :N/SUNROOF	1	Rp73.500	N/SUNROOF
23	61516M64M00-000	MEMBER, RR SEAT SUPPORT	1	Rp200.500
24	61523M64MA0-000	REINF, RR SEAT BELT ANCHOR NO.1	1	Rp106.000
25	61533M76T00-000	PATCH, REAR FLOOR RR RH	1	Rp31.000
26	61534M76T00-000	PATCH, REAR FLOOR RR LH	1	Rp31.000
27	61540M76T00-000	BRACKET, SPARE TIRE	1	Rp362.000
28	61541M61M00-000	REINF, RR FLR CTR	2	Rp78.000
29	61550M64MA0-000	REINF, SEAT BELT SIDE RH	1	Rp142.000
30	61560M64MA0-000	REINF, SEAT BELT SIDE LH	1	Rp142.000
31	62100M76T00-000	MEMBER, REAR FLOOR SIDE RH	1	Rp5.454.000
32	01550M0612A-000	BOLT	1	Rp5.000
33	62300M76T00-000	MEMBER, REAR FLOOR SIDE LH	1	Rp5.454.000
34	01550M0612A-000	BOLT	1	Rp5.000
35	62600M76T00-000	CROSSMEMBER, REAR FLOOR FR	1	Rp1.654.500
36	62700M76T00-000	CROSSMEMBER, RR FLOOR CTR	1	Rp2.235.500
37	62800M76T00-000	CROSSMEMBER, RR FLOOR RR	1	Rp1.550.500
38	65500M76T00-000	PANEL, BACK	1	Rp2.687.000
39	65560M76T00-000	ABSORBER, RR BUMPER SIDE RH	1	Rp250.000
40	65570M76T00-000	ABSORBER, RR BUMPER SIDE LH	1	Rp250.000
41	65581M76T00-000	ABSORBER, REAR BUMPER CTR	1	Rp296.000
42	01550M0612A-000	BOLT	6	Rp5.000
43	01550-0816A-000	BOLT	2	Rp6.000
44	01550-0816A-000	BOLT	6	Rp6.000
45	01550-0816A-000	BOLT	2	Rp6.000
