Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

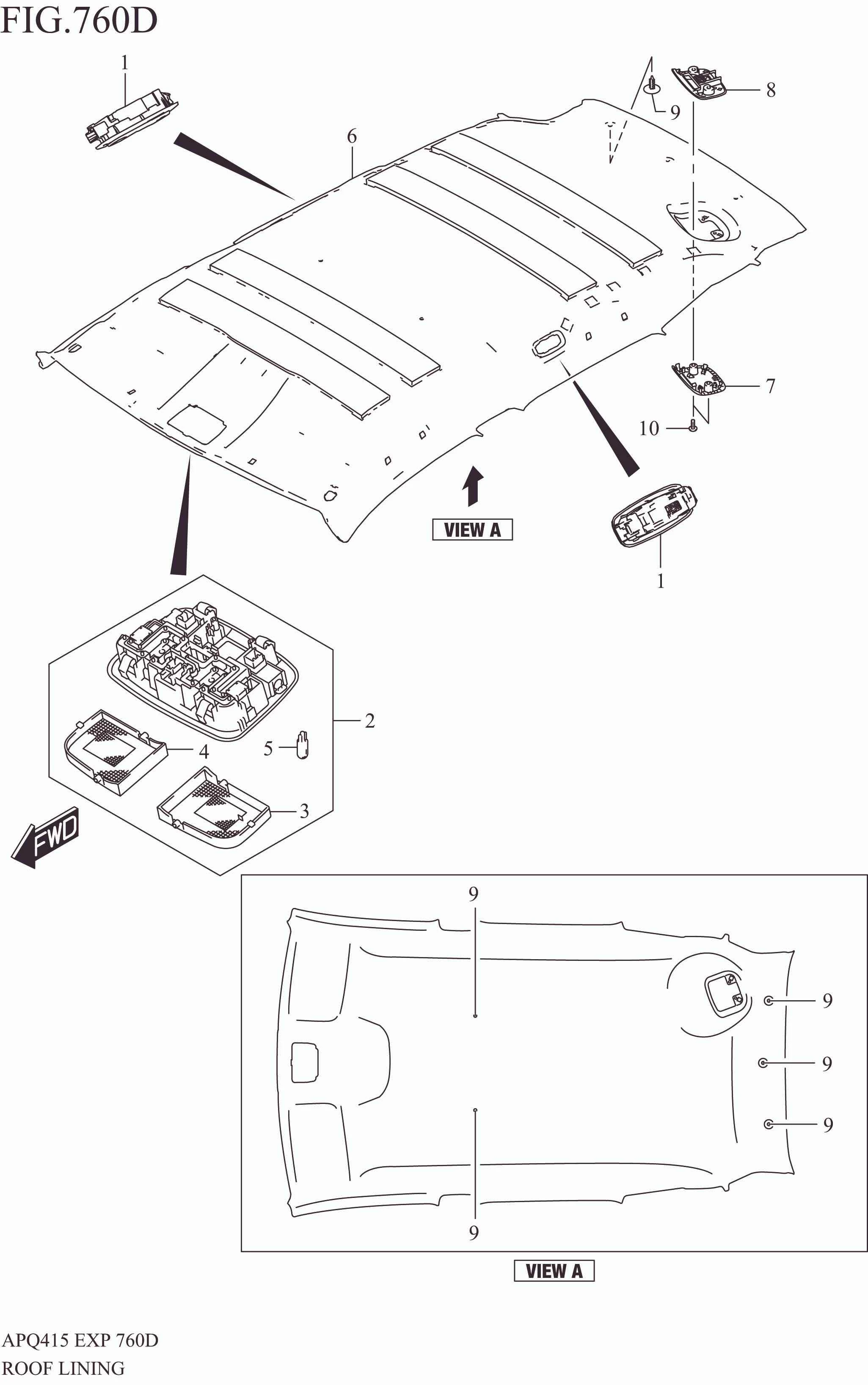

ROOF LINING (RHD:N/SUNROOF:GL)

ROOF LINING (RHD:N/SUNROOF:GL)
No No. Part Description Qty Price Per Pcs Remarks
1 36210M76T00-6GS LAMP ASSY, ROOM (GRAY) 2 Rp140.000
2-1 36230M55T00-6GS LAMP ASSY, SPOT (GRAY) R :N/MICROPHONE 1 Rp328.000 N/MICROPHONE
2-2 36230M55T10-6GS LAMP ASSY, SPOT (GRAY) R :W/MICROPHONE 1 Rp338.500 W/MICROPHONE
3 36212M79M00-000 .LENS LH 1 Rp31.000
4 36213M79M00-000 .LENS RH 1 Rp31.000
5 09471-12216-000 .BULB (12V5W) 2 Rp15.000
6 78110M76T20-6GS LINING, ROOF (GRAY) 1 Rp1.764.500
7 78121M81P01-6GS COVER, RR CTR SEAT BELT (GRAY) 1 Rp27.000
8 78122M81P00-6GS HOLDER, RR CTR SEAT BELT (GRAY) 1 Rp26.500
9 09409M06L02-6GS CLIP (GRAY) (GRAY) 5 Rp5.500
10 02142-0512A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
