Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

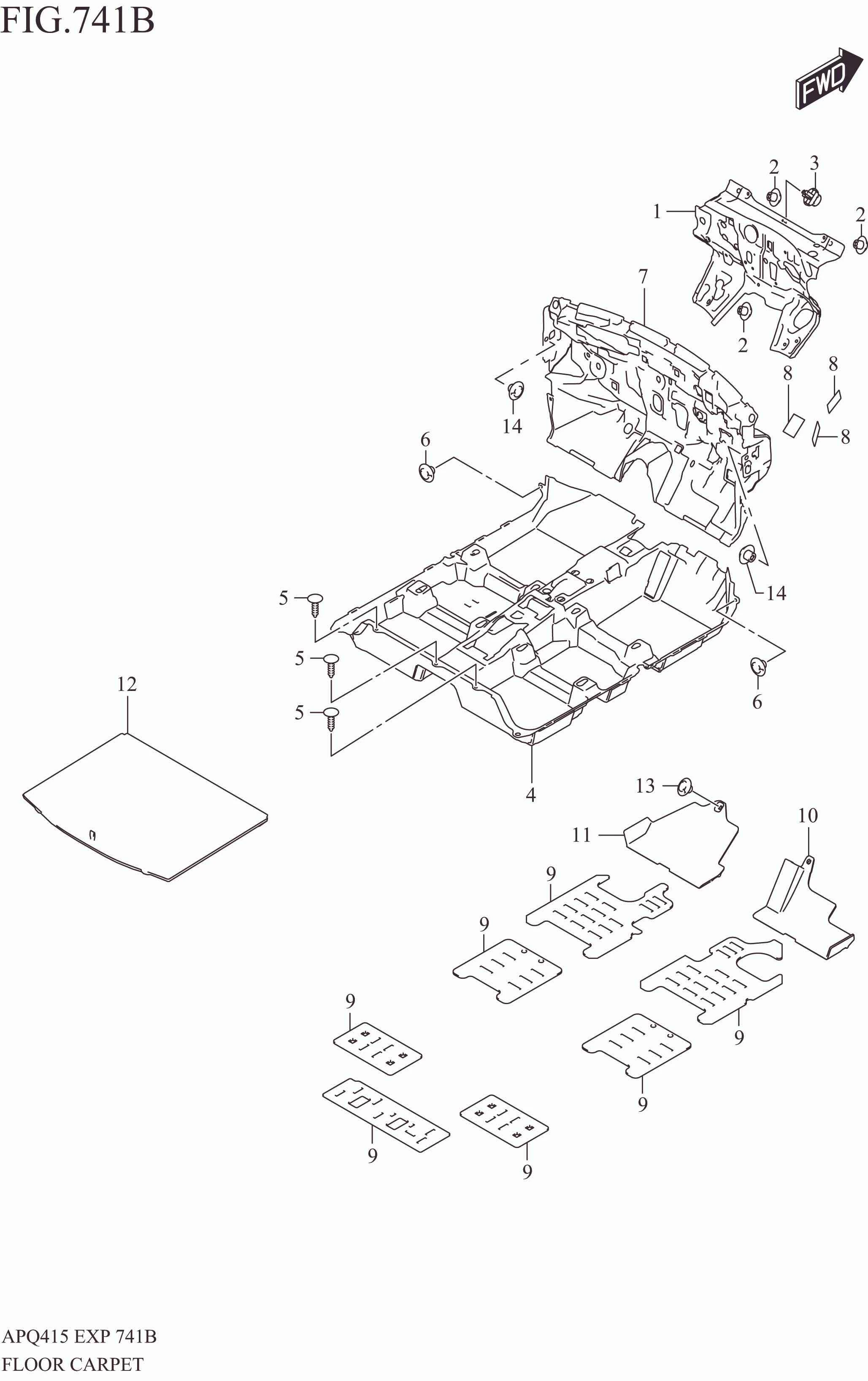

FLOOR CARPET

FLOOR CARPET
No No. Part Description Qty Price Per Pcs Remarks
1 72450M76T00-000 SILENCER, DASH OUTER 1 Rp341.000
2 09148M05L02-000 GROMMET 3 Rp5.500
3 09409M07L01-000 CLIP 1 Rp5.000
4 75110M76T40-R3F CARPET, FLOOR (BLACK) 1 Rp1.335.000
5 75139M70F00-5PK CLIP (BLACK) 3 Rp6.500
6 09148M05L02-000 GROMMET 2 Rp5.500
7 75221M76T10-000 SILENCER, DASH PANEL INNER 1 Rp1.717.000
8 DISCONTINUE
SUB: 75231-79J00-000		 SHEET, DASH PANEL (95X75) 3 -
9 99611-60A01-000 SHEET, SILENCER (800X1000X3) R :CUT AS REQUIRED 0 Rp1.210.000 CUT AS REQUIRED
10 75411M61M00-000 PAD, DASH LOWER RH 1 Rp219.000
11 75412M65M00-000 PAD, DASH LWR LH 1 Rp254.000
12 75460M65M00-R3F BOARD, LUGGAGE FLOOR (BLACK) 1 Rp2.649.500
13 09148M05L11-000 CLIP 1 Rp4.500
14 09148M05L02-000 GROMMET 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
