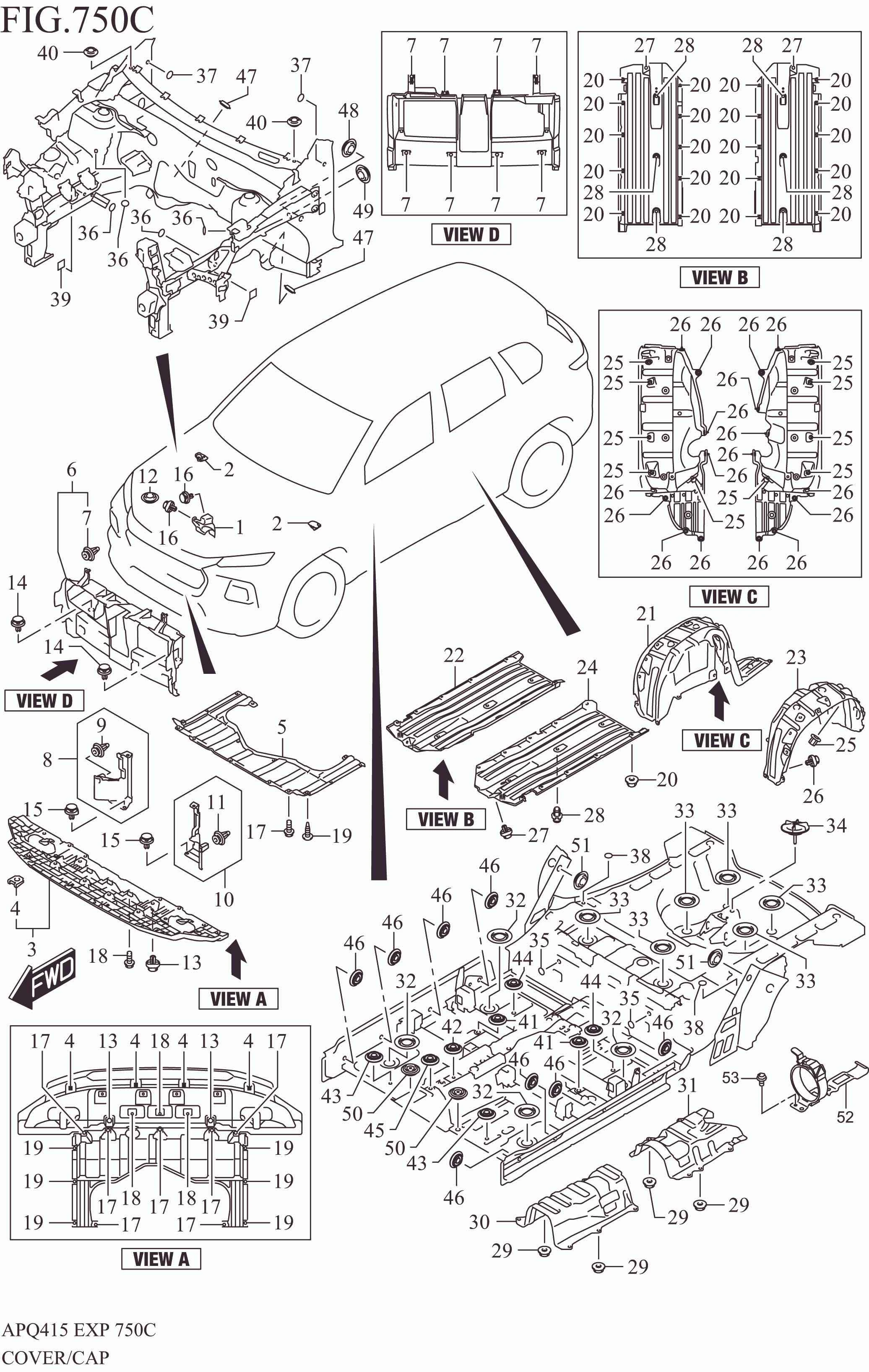

COVER/CAP

No	No. Part	Description	Qty	Price Per Pcs
1	72323M76T00-000	COVER, SPLASH RH	1	Rp23.000
2	72355M61M00-000	COVER, COWL DRAIN	2	Rp11.000
3	72390M76T00-000	ABSORBER, FR BUMPER LOWER	1	Rp480.000
4	09148M05071-000	.NUT	4	Rp6.000
5	72411M76T00-000	COVER, ENGINE UNDER	1	Rp313.000
6	72431M76T00-000	COVER, FRONT END UPPER	1	Rp323.000
7	09409M10321-000	.CLIP	8	Rp5.000
8	72432M76T00-000	COVER, FRONT END LOWER RH	1	Rp50.500
9	09409M10321-000	.CLIP	1	Rp5.000
10	72433M76T00-000	COVER, FRONT END LOWER LH	1	Rp50.500
11	09409M10321-000	.CLIP	1	Rp5.000
12	09250M25L02-000	CAP (OD:33.5)	1	Rp5.500
13	09409M07L01-000	CLIP	2	Rp5.000
14	09409M07L01-000	CLIP	2	Rp5.000
15	09409M07L01-000	CLIP	2	Rp5.000
16	09409M07L01-000	CLIP	2	Rp5.000
17	02162-0616A-000	SCREW	7	Rp3.000
18	02162-0616A-000	SCREW	3	Rp3.000
19	03241M0516A-000	SCREW	6	Rp4.500
20	14357M79M00-000	NUT, HEAT INSULATOR	20	Rp5.500
21	72811M76T00-000	LINING, REAR FENDER RH	1	Rp255.000
22	72813M76T00-000	COVER, MAIN FL UNDER RH	1	Rp477.500
23	72821M76T00-000	LINING, REAR FENDER LH	1	Rp255.000
24	72823M76T00-000	COVER, MAIN FLOOR UNDER LH	1	Rp477.500
25	09148M05065-000	CLIP	10	Rp5.500
26	09409M07L01-000	CLIP	17	Rp5.000
27	09409M07L01-000	CLIP	2	Rp5.000
28	09409M15L01-000	CLIP	6	Rp5.500
29	14357M79M00-000	NUT, HEAT INSULATOR	4	Rp5.500
30	72452M76T00-000	INSULATOR, CATALYST HEAT	1	Rp202.000
31	72453M76T00-000	INSULATOR, SUB CHAMBER HEAT	1	Rp159.000
32	75431M68P00-000	CAP, MAIN FL DRAIN	4	Rp13.000
33	75431M68P00-000	CAP, MAIN FL DRAIN	6	Rp13.000
34	75450M76T00-000	HOLDER, SPARE TIRE	1	Rp35.500
35	77151M54P00-000	FILM	2	Rp5.500
36	77151M54P00-000	FILM	4	Rp5.500
37	77151M54P00-000	FILM	2	Rp5.500
38	77151M54P10-000	FILM	2	Rp4.000
39	77151-82000-000	FILM	2	Rp7.000
40	09250M10032-000	CAP (OD:16.3)	2	Rp7.000
41	09250-15012-000	CAP (OD:23.5)	2	Rp5.000
42	09250M15019-000	CAP (OD:23.5)	1	Rp6.500
43	09250M15019-000	CAP (OD:23.5)	2	Rp6.500
44	09250M15019-000	CAP (OD:23.5)	2	Rp6.500
45	09250M15019-000	CAP (OD:23.5)	1	Rp6.500
46	09250M20036-000	CAP (OD:28.5)	8	Rp3.500
47	09250M20036-000	CAP (OD:28.5)	2	Rp3.500
48	09250M20036-000	CAP (OD:28.5)	1	Rp3.500
49	09250M20036-000	CAP (OD:28.5)	1	Rp3.500
50	09250M25L02-000	CAP (OD:33.5)	2	Rp5.500
51	09250M30011-000	CAP (OD:38.5)	2	Rp4.500
52	75630-73R10-000	BAND, FIRE EXTINGUISHER	1	Rp91.000
53	01550-0612A-000	BOLT	3	Rp3.500
