Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

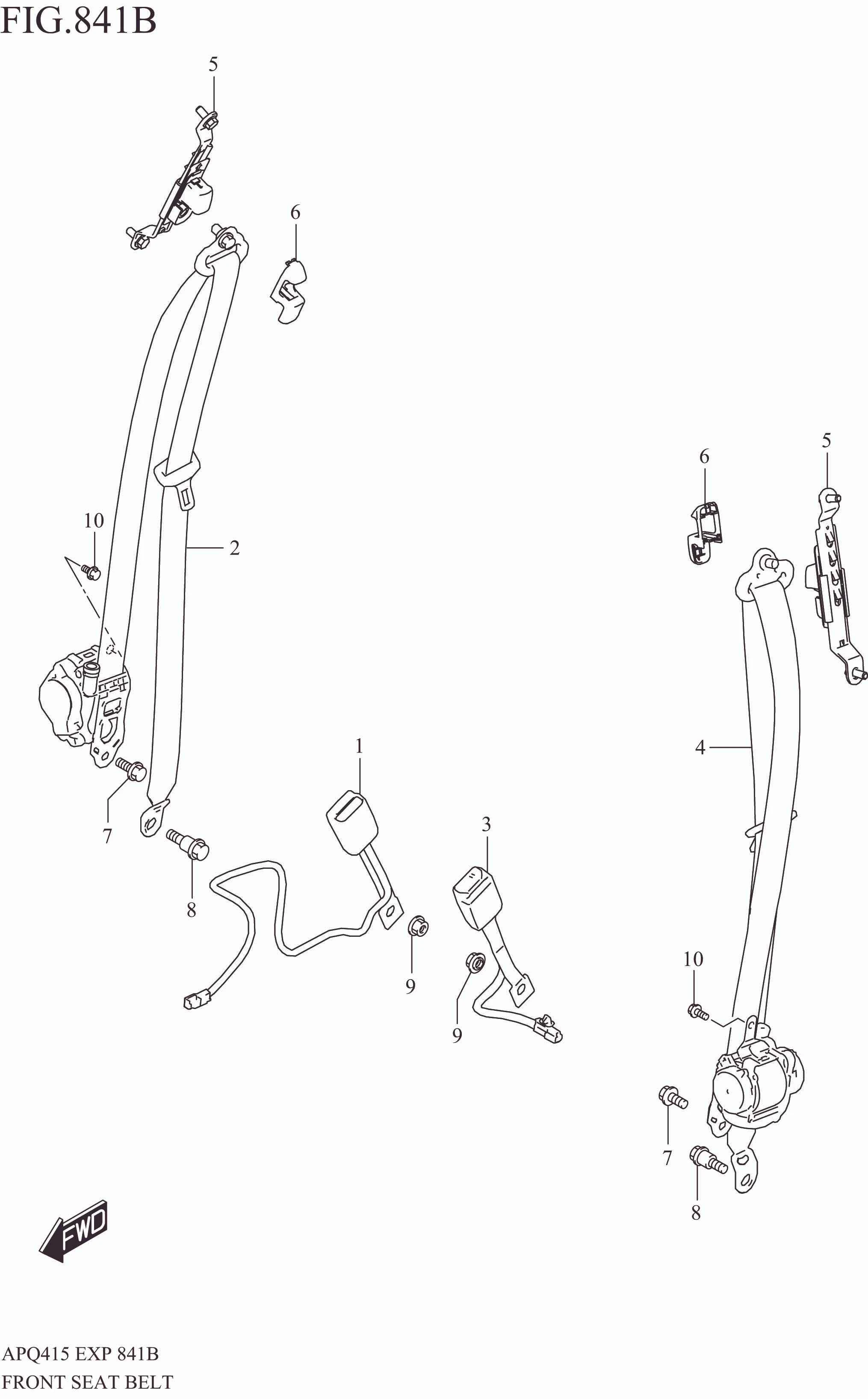

FRONT SEAT BELT

FRONT SEAT BELT
No No. Part Description Qty Price Per Pcs Remarks
1 84910M76T10-5PK BUCKLE ASSY, FR (BLACK) 1 Rp494.500
2 84920M76T10-BHE TONGUE ASSY, FR RH (BLACK/GRAY) 1 Rp2.487.000
3 84910M76T20-5PK BUCKLE ASSY, FR (BLACK) 1 Rp483.500
4 84940M76T10-BHE TONGUE ASSY, FR LH (BLACK/GRAY) 1 Rp2.487.000
5 84990M83P00-6GS ADJUSTER, FR SHOULDER (GRAY) 2 Rp390.000
6 DISCONTINUE
SUB: 84991-79K00-6GS		 COVER, SHOULDER ADJUSTER (GRAY) 2 -
7 09103M11002-000 BOLT (10X22) 2 Rp7.500
8 09111M11008-000 BOLT (7/16X38) 2 Rp27.000
9 09159M11006-000 NUT 2 Rp11.500
10 02162-0612A-000 SCREW 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
