Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

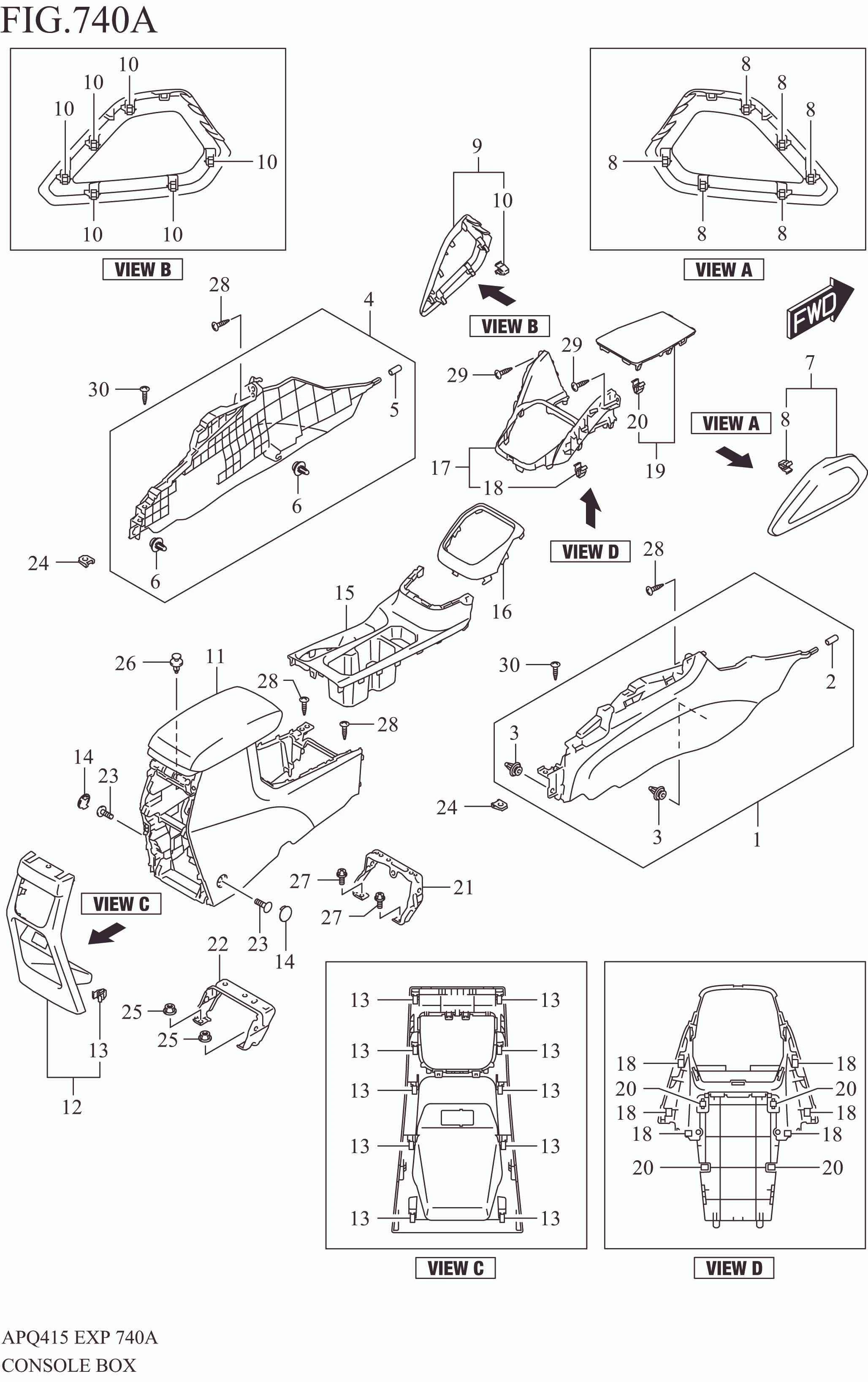

CONSOLE BOX

CONSOLE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 75810M76T00-5PK COVER, FLOOR CONSOLE FR RH (BLACK) 1 Rp132.500
2 73132-57L00-000 .CAP 1 Rp38.000
3 09409M10321-000 .CLIP 2 Rp5.000
4 75820M76T00-5PK COVER, FLOOR CONSOLE FR LH (BLACK) 1 Rp132.500
5 73132-57L00-000 .CAP 1 Rp38.000
6 09409M10321-000 .CLIP 2 Rp5.000
7 75831M76T00-5PK ORNAMENT, FLOOR CONSOLE FR RH (BLACK) 1 Rp41.000
8 09409-08352-000 .CLIP 6 Rp19.000
9 75841M76T00-5PK ORNAMENT, FLOOR CONSOLE FR LH (BLACK) 1 Rp41.000
10 09409-08352-000 .CLIP 6 Rp19.000
11 75850M76T00-5PK BOX, FLOOR CONSOLE RR (BLACK) 1 Rp1.213.000
12-1 75851M76T00-5PK COVER, FLOOR CONSOLE RR R :GL (BLACK) 1 Rp121.500 GL
12-2 75851M76T10-5PK COVER, FLOOR CONSOLE RR R :GLX (BLACK) 1 Rp116.500 GLX
13 09409-08352-000 .CLIP 10 Rp19.000
14 75854-72R00-5PK CAP, FL CONSOLE BOX SIDE (BLACK) 2 Rp14.500
15 75861M76T00-5PK PANEL, FLOOR CONSOLE RR (BLACK) 1 Rp113.000
16-1 75862M76T00-5PK GARNISH, GEAR SHIFT (BLACK) R :GL 1 Rp48.500 GL
16-2 75862M76T10-EQG GARNISH, GEAR SHIFT R :GLX (BLACK/SILVER) 1 Rp219.500 GLX
17 75871M76T00-5PK GARNISH, FLOOR CONSOLE FR (BLACK) 1 Rp61.000
18 09409-08352-000 .CLIP 6 Rp19.000
19 75872M76T00-5PK TRAY, FLOOR CONSOLE FR (BLACK)R :GL 1 Rp43.500 GL
20 09409-08352-000 .CLIP R :GL 4 Rp19.000 GL
21 75881M76T00-000 BRACKET, FLOOR CONSOLE BOX FR 1 Rp50.500
22 75882M76T00-000 BRACKET, FLOOR CONSOLE BOX RR 1 Rp76.500
23 09125M05142-000 SCREW 2 Rp8.500
24 09148M05L04-000 NUT (M5) 2 Rp5.000
25 09159M06112-000 NUT 2 Rp6.500
26 09409-06328-000 CLIP 1 Rp20.500
27 02162-0612A-000 SCREW 2 Rp11.000
28 03541-0516A-000 SCREW 4 Rp3.500
29 03541-0516A-000 SCREW 2 Rp3.500
30 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
