Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

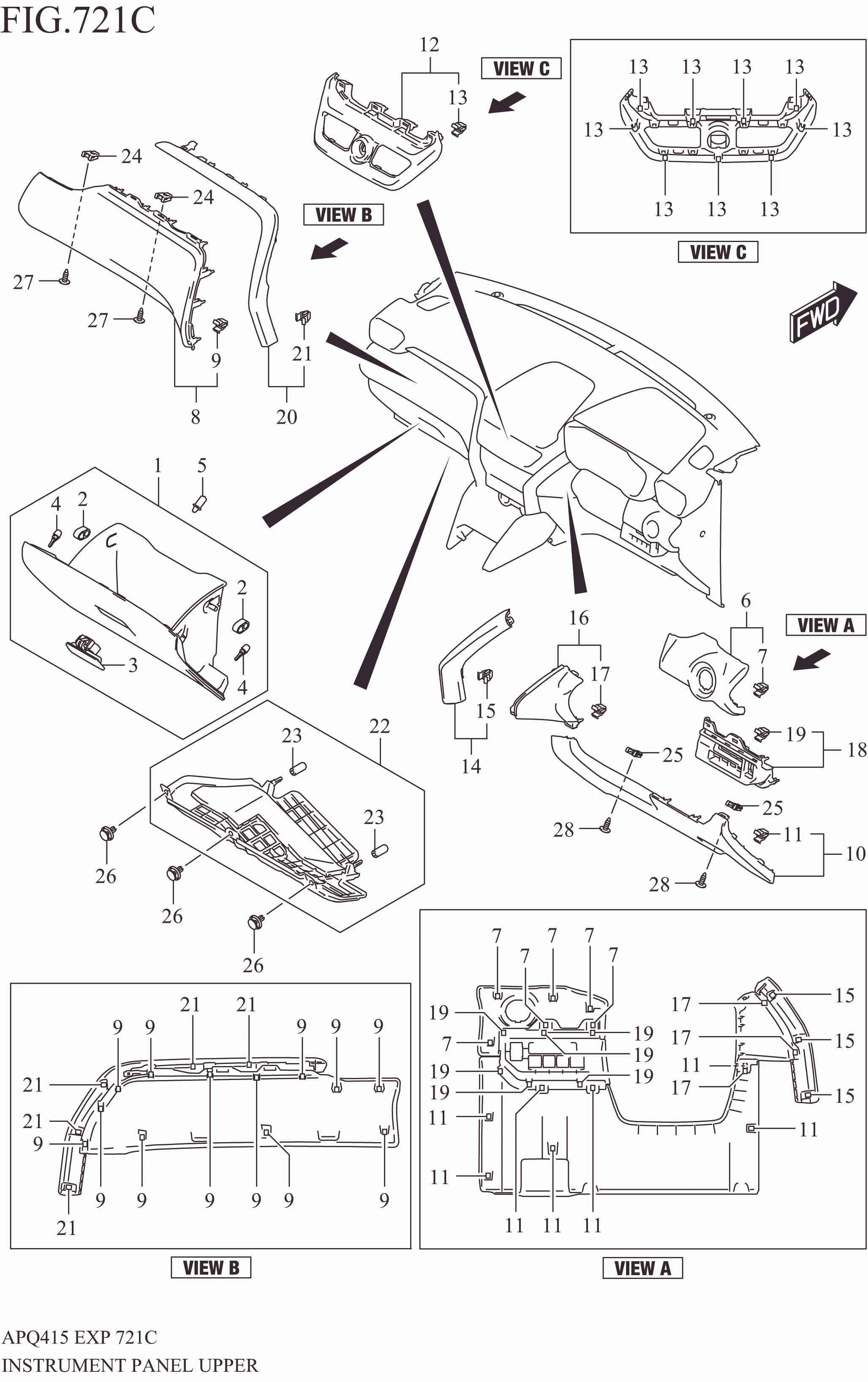

INSTRUMENT PANEL UPPER (RHD:GL)

INSTRUMENT PANEL UPPER (RHD:GL)
No No. Part Description Qty Price Per Pcs Remarks
1 73410M76T00-5PK BOX, GLOVE (BLACK) 1 Rp480.000
2 73413M65D00-000 .CUSHION 2 Rp6.500
3 73430M75J00-5PK .LOCK, GLOVE BOX (BLACK) 1 Rp40.500
4 73461M53M00-000 .CUSHION 2 Rp7.000
5 73461-77R00-000 CUSHION, GLOVE BOX 1 Rp33.500
6 73511M76T00-5PK GARNISH, I/P DRVR OUTER (BLACK) 1 Rp44.500
7 09409-08352-000 .CLIP 6 Rp19.000
8 73512M76T00-5PK GARNISH, I/P ASST (BLACK) 1 Rp113.000
9 09409-08352-000 .CLIP 12 Rp19.000
10 73810M76T00-5PK COVER, STRG COLUMN HOLE (BLACK) 1 Rp124.000
11 09409-08352-000 .CLIP 7 Rp19.000
12 73824M76T00-5PK GARNISH, I/P CENTER LOUVER (BLACK) 1 Rp105.000
13 09409-08352-000 .CLIP 9 Rp19.000
14 73831M76T10-QWP ORNAMENT, I/P DRVR (SILVER) 1 Rp127.000
15 09409-08352-000 .CLIP 3 Rp19.000
16 73832M76T00-5PK GARNISH, I/P DRVR INNER (BLACK) 1 Rp21.500
17 09409-08352-000 .CLIP 3 Rp19.000
18 73833M76T00-5PK BEZEL, I/P SWITCH (BLACK) 1 Rp30.500
19 09409-08352-000 .CLIP 6 Rp19.000
20 73860M76T10-QWP ORNAMENT, I/P ASST (SILVER) 1 Rp873.000
21 09409-08352-000 .CLIP 5 Rp19.000
22 73880M76T00-000 COVER, I/P UNDER ASST 1 Rp111.000
23 73132-57L00-000 .CAP 2 Rp38.000
24 09148M05L04-000 NUT (M5) 2 Rp5.000
25 09148M05L04-000 NUT (M5) 2 Rp5.000
26 09409M07L01-000 CLIP 3 Rp5.000
27 03541-0516A-000 SCREW 2 Rp3.500
28 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
