Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

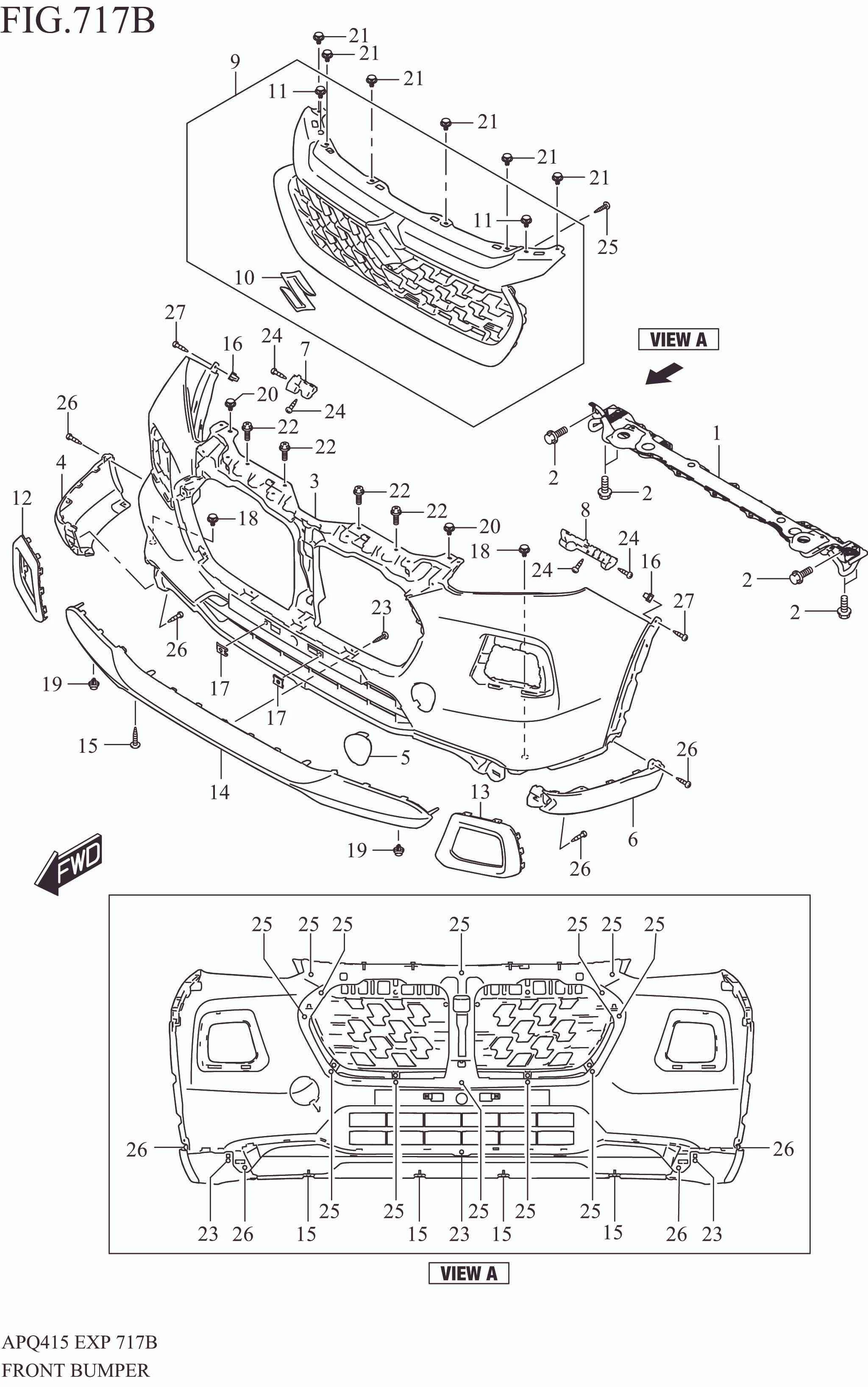

FRONT BUMPER (W/FRONT CAMERA)

FRONT BUMPER (W/FRONT CAMERA)
No No. Part Description Qty Price Per Pcs Remarks
1 71100M76T10-000 MEMBER, RADIATOR SUPPORT 1 Rp1.010.500
2 01551-1025A-000 BOLT 6 Rp29.000
3 71711M76T00-5PK BUMPER, FRONT (BLACK/PRIMARY) R :PAINT TO MATCH 1 Rp1.400.000 PAINT TO MATCH
4 71721M76T00-5PK BUMPER, FRONT LOWER RH (BLACK) 1 Rp67.000
5 71712M76T00-000 CAP, TOWING HOOK R :PAINT TO MATCH 1 Rp12.000 PAINT TO MATCH
6 71722M76T00-5PK BUMPER, FRONT LOWER LH (BLACK) 1 Rp67.000
7 71731M76T00-000 HOLDER, FR BUMPER SIDE RH 1 Rp28.000
8 71732M76T00-000 HOLDER, FR BUMPER SIDE LH 1 Rp28.000
9 71740M76T10-KDJ GRILLE, RADIATOR (BLACK/CHROME) 1 Rp3.560.500
10 77811M63T00-0PG .EMBLEM, MARK (CHROME) 1 Rp182.000
11 09409M08006-000 .CLIP 2 Rp5.000
12 71751M76T00-5PK BEZEL, HEAD LAMP RH (BLACK) 1 Rp29.500
13 71761M76T00-5PK BEZEL, HEAD LAMP LH (BLACK) 1 Rp29.500
14 71771M76T00-PER GARNISH, FR BUMPER LOWER (SILVER) 1 Rp392.000
15 09136M05078-000 SCREW (5X16) 4 Rp7.500
16 09148M05078-000 NUT 2 Rp6.000
17 08315-11069-000 NUT 2 Rp2.500
18 09409M07L01-000 CLIP 2 Rp5.000
19 09409M07L01-000 CLIP 2 Rp5.000
20 09409M08006-000 CLIP 2 Rp5.000
21 09409M08006-000 CLIP 6 Rp5.000
22 02162-0616A-000 SCREW 4 Rp3.000
23 03541-0516A-000 SCREW 3 Rp3.500
24 03541-0516A-000 SCREW 4 Rp3.500
25 03541-0516A-000 SCREW 12 Rp3.500
26 03541-0516A-000 SCREW 4 Rp3.500
27 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
