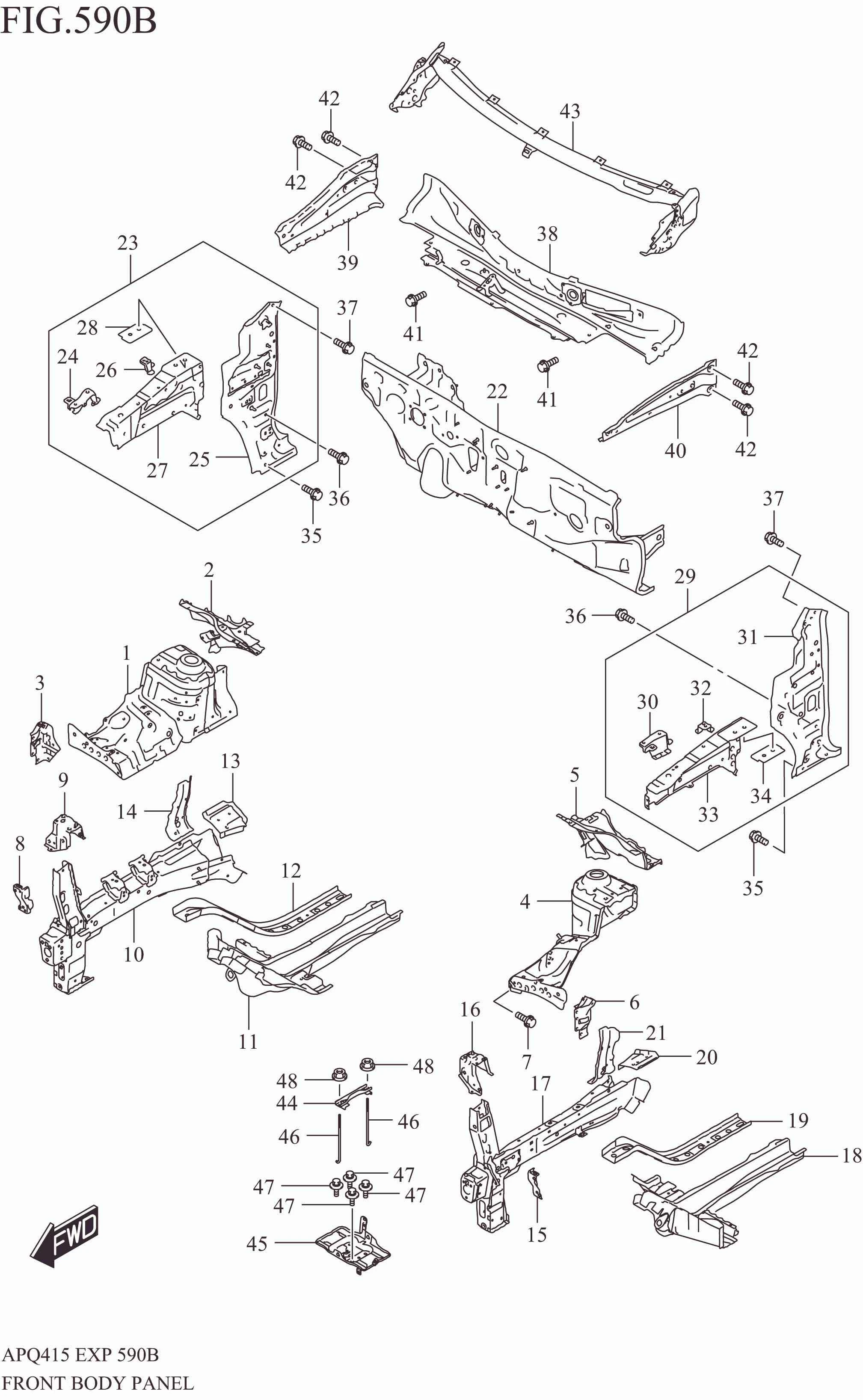

FRONT BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	58310M76T00-000	PANEL, FENDER APRON RH	1	Rp1.614.000
2	58320M76T00-000	REINF, COWL UPPER RH	1	Rp601.500
3	58333M76T00-000	BRACKET, FR FENDER LOWER RH	1	Rp124.500
4	58410M76T00-000	PANEL, FENDER APRON LH	1	Rp1.614.000
5	58420M64M00-000	REINF, COWL UPPER LH	1	Rp581.000
6	58433M76T00-000	BRACKET, FR FENDER LOWER LH	1	Rp124.500
7	01550M0612A-000	BOLT	1	Rp5.000
8	58113M76T00-000	PANEL, LAMP SUPPORT RH	1	Rp177.000
9	58116M76T00-000	BRACKET, HOOD CUSHION RH	1	Rp147.500
10	58610M76T00-000	MEMBER, APRON SIDE RH	1	Rp4.164.500
11	58620M76T00-000	MEMBER, DASH LOWER RH	1	Rp2.785.500
12	58624M66T00-000	REINF, DASH LOWER RH	1	Rp543.000
13	58651M64M00-000	REINF, APRON SIDE RR RH	1	Rp126.500
14	58671M64M00-000	SUPPORT, FRONT STRUT RH	1	Rp177.000
15	58123M76T00-000	PANEL, LAMP SUPPORT LH	1	Rp177.000
16	58126M76T00-000	BRACKET, HOOD CUSHION LH	1	Rp147.500
17	58710M76T00-000	MEMBER, APRON SIDE LH	1	Rp4.164.500
18	58720M76T00-000	MEMBER, DASH LOWER LH	1	Rp2.785.500
19	58724M80J00-000	REINF, DASH LOWER LH	1	Rp543.000
20	58751M76T00-000	REINF, APRON SIDE RR LH	1	Rp126.500
21	58771M64M00-000	SUPPORT, FRONT STRUT LH	1	Rp177.000
22	59100M76T20-000	PANEL, DASH	1	Rp5.169.000
23	59210M76T00-000	PANEL, DASH SIDE RH	1	Rp2.647.000
24	59220M76T00-000	.BRACKET, FRONT FENDER RH	1	Rp137.500
25	59230M76T00-000	.PANEL, DASH SIDE REAR RH	1	Rp1.179.500
26	59235M76T00-000	.BRACKET, FRONT FENDER RR RH	1	Rp34.000
27	59240M76T00-000	.PANEL, DASH SIDE FRONT RH	1	Rp511.000
28	59744M76T00-000	.PATCH, FRONT DOOR HINGE	1	Rp40.000
29	59260M76T00-000	PANEL, DASH SIDE LH	1	Rp2.647.000
30	59270M76T00-000	.BRACKET, FRONT FENDER LH	1	Rp137.500
31	59280M76T00-000	.PANEL, DASH SIDE REAR LH	1	Rp1.179.500
32	59285M76T00-000	.BRACKET, FRONT FENDER RR LH	1	Rp34.000
33	59290M76T00-000	.PANEL, DASH SIDE FRONT LH	1	Rp511.000
34	59744M76T00-000	.PATCH, FRONT DOOR HINGE	1	Rp40.000
35	01550M0612A-000	BOLT	2	Rp5.000
36	01550M0612A-000	BOLT	2	Rp5.000
37	01550M0612A-000	BOLT	2	Rp5.000
38	59300M76T00-000	PANEL, COWL UPPER	1	Rp1.831.000
39	59411M76T00-000	MEMBER, COWL SIDE OUTER RH	1	Rp238.000
40	59461M76T00-000	MEMBER, COWL SIDE OUTER LH	1	Rp238.000
41	01550M0612A-000	BOLT	2	Rp5.000
42	01550-0816A-000	BOLT	4	Rp6.000
43-1	59700M76T00-000	PANEL, COWL R :N/SUNROOF	1	Rp1.179.500	N/SUNROOF
43-2	59700M76T10-000	PANEL, COWL R :W/SUNROOF	1	Rp1.179.500	W/SUNROOF
44	72510M59S00-000	BAND, BATTERY	1	Rp37.000
45	72520M76T00-000	TRAY, BATTERY	1	Rp161.500
46	72531M55T00-000	BOLT, BATTERY	2	Rp22.500
47	09118-08166-000	BOLT (8X25)	4	Rp30.500
48	08316-1006A-000	NUT	2	Rp2.000
