Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

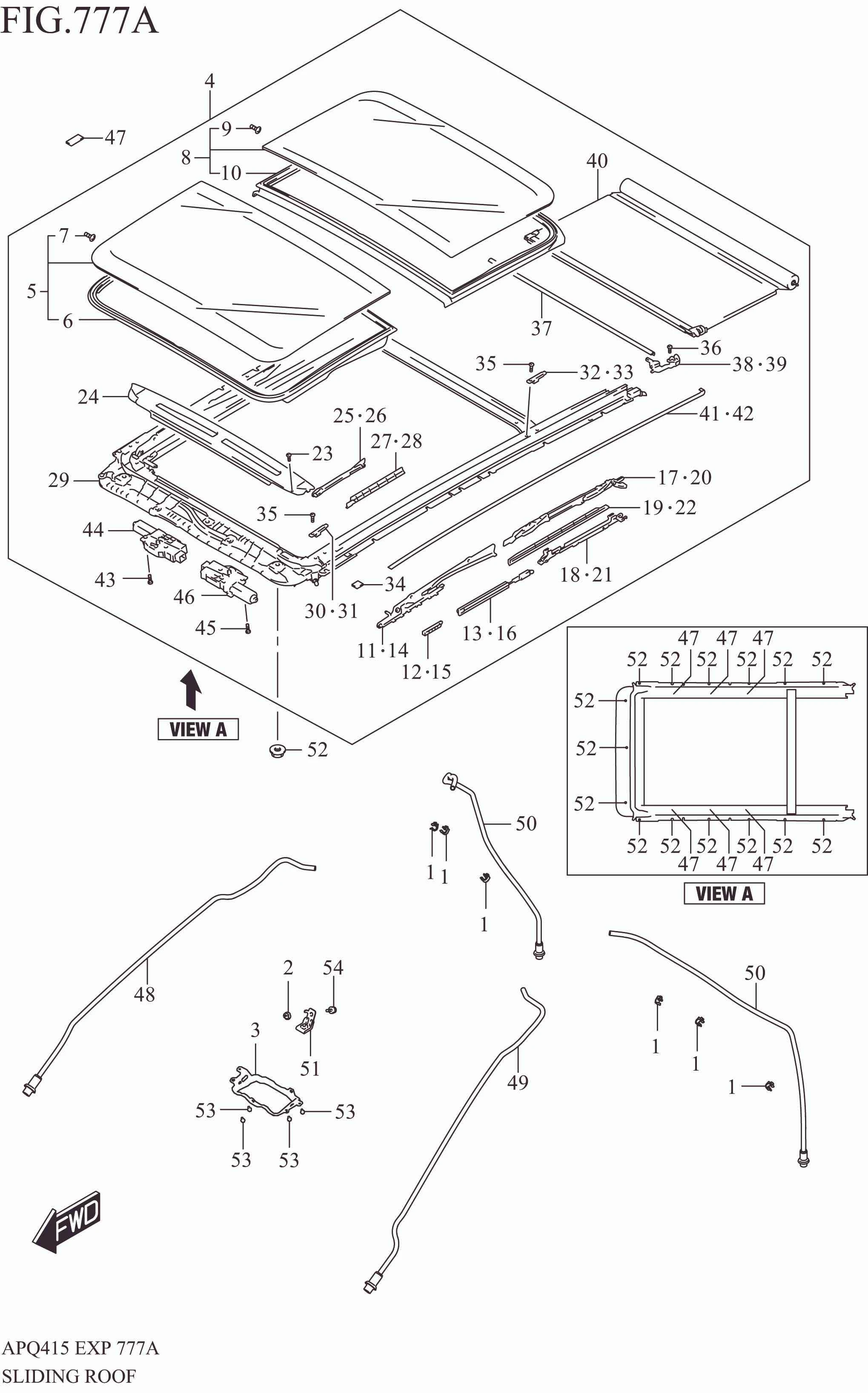

SLIDING ROOF (W/SUNROOF)

SLIDING ROOF (W/SUNROOF)
No No. Part Description Qty Price Per Pcs Remarks
1 15813M65L00-000 CLIP, FUEL HOSE 6 Rp5.000
2 71851M70F00-000 NUT 1 Rp4.000
3 78161M61M00-000 BRACKET, ROOM LAMP FRONT 1 Rp46.500
4 78700-76T01-PLT
SUB: 78700-76T00-PLT		 ROOF ASSY, PANORAMIC SLIDING (GRAY) 1 Rp21.391.000
5 78710-61M02-000 .GLASS ASSY, SLIDING ROOF FR 1 Rp4.269.000
6 78712-61M00-000 ..WEATHERSTRIP, FR GLASS 1 Rp804.000
7 78713-61M00-000 ..BOLT, SLIDING ROOF GLASS 4 Rp40.500
8 78720-61M01-000 .GLASS ASSY, SLIDING ROOF RR 1 Rp4.866.500
9 78713-61M00-000 ..BOLT, SLIDING ROOF GLASS 4 Rp40.500
10 78722-61M00-000 ..WEATHERSTRIP, RR GLASS 1 Rp804.000
11 78731-61M00-000 .GUIDE ASSY, FR GLASS RH 1 Rp1.399.000
12 78732-61M00-000 .CABLE ASSY, GLASS RH 1 Rp424.000
13 78733-61M00-000 .SHUTTER, FR GUIDE RH 1 Rp333.500
14 78741-61M00-000 .GUIDE ASSY, FR GLASS LH 1 Rp1.399.000
15 78742-61M00-000 .CABLE ASSY, GLASS LH 1 Rp424.000
16 78743-61M00-000 .SHUTTER, FR GUIDE LH 1 Rp333.500
17 78751-61M00-000 .GUIDE, RR GLASS RH 1 Rp518.000
18 78752-61M00-000 .SLIDER, RR GUIDE RH 1 Rp435.000
19 78753-61M00-000 .SCREEN, RR GUIDE RH 1 Rp255.500
20 78761-61M00-000 .GUIDE, RR GLASS LH 1 Rp518.000
21 78762-61M00-000 .SLIDER, RR GUIDE LH 1 Rp435.000
22 78763-61M00-000 .SCREEN, RR GUIDE LH 1 Rp255.500
23 78733-68L00-000 .TAPPING SCREW 2 Rp32.500
24 78771-54P00-000 .DEFLECTOR, SLIDING ROOF 1 Rp774.500
25 78772-61M00-000 .LINK, DEFLECTOR ASSY RH 1 Rp92.500
26 78773-61M00-000 .LINK, DEFLECTOR ASSY LH 1 Rp92.500
27 78774-61M00-000 .LINK, CONNECTOR RH 1 Rp92.500
28 78775-61M00-000 .LINK, CONNECTOR LH 1 Rp92.500
29 78781-61M00-000 .FRAME, PANORAMIC SLIDING 1 Rp8.188.500
30 78782-61M00-000 .SET PLATE, FRAME FR RH 1 Rp50.000
31 78783-61M00-000 .SET PLATE, FRAME FR LH 1 Rp50.000
32 78784-61M00-000 .SET PLATE, FRAME RR RH 1 Rp47.500
33 78785-61M00-000 .SET PLATE, FRAME RR LH 1 Rp47.500
34 78786-61M00-000 .FASTENER 10 Rp46.500
35 78787-61M00-000 .TAPPING SCREW 4 Rp25.500
36 78787-61M00-000 .TAPPING SCREW 2 Rp25.500
37 78791-61M00-000 .STAY, ROLL SHADE 1 Rp190.500
38 78792-61M00-000 .BASE, ROLL SHADE RH 1 Rp98.000
39 78793-61M00-000 .BASE ASSY, ROLL SHADE LH 1 Rp77.500
40 78794-61M01-PLT .SHADE ASSY, ROLL (GRAY) 1 Rp4.213.000
41 78795-61M00-000 .CABLE ASSY, ROLL SHADE RH 1 Rp420.000
42 78796-61M00-000 .CABLE ASSY, ROLL SHADE LH 1 Rp420.000
43 78736-68L00-000 .SCREW 2 Rp53.500
44 78811-76T00-000 .MOTOR ASSY, GLASS 1 Rp2.446.000
45 78736-68L00-000 .SCREW 2 Rp53.500
46 78821-76T00-000 .MOTOR ASSY, SHADE 1 Rp2.446.000
47 78786M76T00-000 FASTENER 6 Rp48.000
48 78830M76T00-000 HOSE, FRONT DRAIN RH 1 Rp52.000
49 78840M76T00-000 HOSE, FRONT DRAIN LH 1 Rp52.000
50 78850M76T00-000 HOSE, REAR DRAIN 2 Rp51.000
51 78861M61M00-000 BRACKET, OVER HEAD CONSOLE 1 Rp8.500
52 09159M06112-000 NUT 15 Rp6.500
53 02162-0612A-000 SCREW 4 Rp11.000
54 03241M0612A-000 SCREW 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
