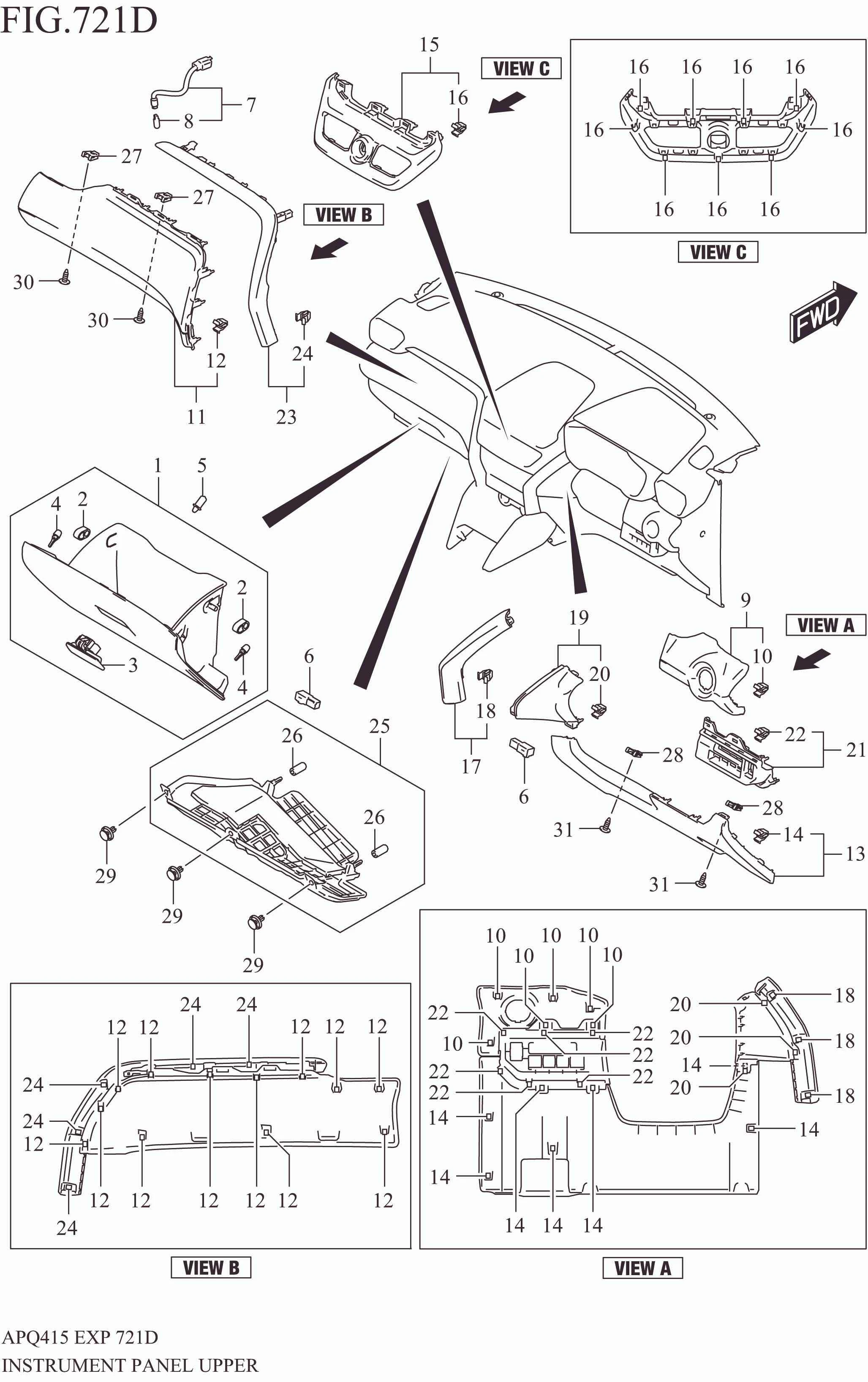

INSTRUMENT PANEL UPPER (RHD:GLX)

INSTRUMENT PANEL UPPER (RHD:GLX)
No No. Part Description Qty Price Per Pcs Remarks
1 73410M76T00-5PK BOX, GLOVE (BLACK) 1 Rp480.000
2 73413M65D00-000 .CUSHION 2 Rp6.500
3 73430M75J00-5PK .LOCK, GLOVE BOX (BLACK) 1 Rp40.500
4 73461M53M00-000 .CUSHION 2 Rp7.000
5 73461-77R00-000 CUSHION, GLOVE BOX 1 Rp33.500
6 36550M64M00-000 LAMP ASSY, FLOOR 2 Rp71.000
7 36550M65M00-000 LAMP ASSY, GLOVE BOX ILLUM 1 Rp100.000
8 09471-12055-000 .BULB (14V1.4W,T5) 1 Rp32.000
9 73511M76T10-EZY GARNISH, I/P DRVR OUTER (BLACK/SILVER) 1 Rp370.000
10 09409-08352-000 .CLIP 6 Rp19.000
11 73512M76T10-EZY GARNISH, I/P ASST (BLACK/SILVER) 1 Rp667.500
12 09409-08352-000 .CLIP 12 Rp19.000
13 73810M76T00-5PK COVER, STRG COLUMN HOLE (BLACK) 1 Rp124.000
14 09409-08352-000 .CLIP 7 Rp19.000
15 73824M76T10-EQG GARNISH, I/P CENTER LOUVER (BLACK/SILVER) 1 Rp443.500
16 09409-08352-000 .CLIP 9 Rp19.000
17 73831M76T10-QWP ORNAMENT, I/P DRVR (SILVER) 1 Rp127.000
18 09409-08352-000 .CLIP 3 Rp19.000
19 73832M76T00-5PK GARNISH, I/P DRVR INNER (BLACK) 1 Rp21.500
20 09409-08352-000 .CLIP 3 Rp19.000
21 73833M76T00-5PK BEZEL, I/P SWITCH (BLACK) 1 Rp30.500
22 09409-08352-000 .CLIP 6 Rp19.000
23 73860M76T20-QWP ORNAMENT, I/P ASST (SILVER) 1 Rp1.105.000
24 09409-08352-000 .CLIP 5 Rp19.000
25 73880M76T00-000 COVER, I/P UNDER ASST 1 Rp111.000
26 73132-57L00-000 .CAP 2 Rp38.000
27 09148M05L04-000 NUT (M5) 2 Rp5.000
28 09148M05L04-000 NUT (M5) 2 Rp5.000
29 09409M07L01-000 CLIP 3 Rp5.000
30 03541-0516A-000 SCREW 2 Rp3.500
31 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
