Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

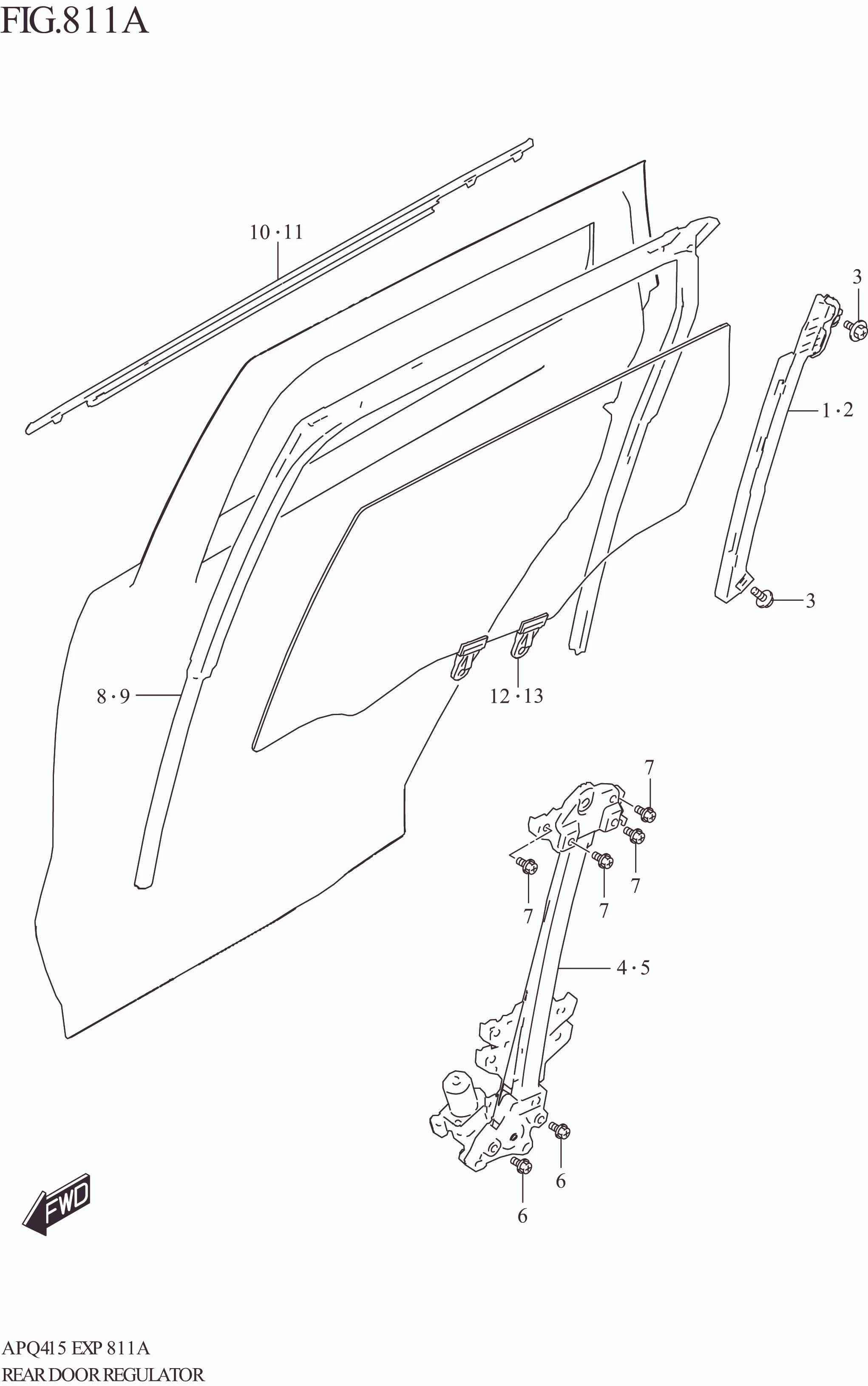

REAR DOOR REGULATOR

REAR DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 81770M76T00-000 SASH, REAR DOOR REAR RH 1 Rp32.500
2 81780M76T00-000 SASH, REAR DOOR REAR LH 1 Rp32.500
3 09122-76003-000 BOLT (6X16) 4 Rp15.000
4 83501M76T00-000 REGULATOR ASSY, REAR WINDOW RH 1 Rp214.000
5 83502M76T00-000 REGULATOR ASSY, REAR WINDOW LH 1 Rp214.000
6 02162-0612A-000 SCREW 4 Rp11.000
7 02162-0612A-000 SCREW 8 Rp11.000
8 83671M76T00-000 RUN, REAR DOOR GLASS RH 1 Rp317.000
9 83675M76T00-000 RUN, REAR DOOR GLASS LH 1 Rp317.000
10-1 83831M76T00-000 WEATHERSTRIP, REAR DOOR OUT RHR :GL 1 Rp111.500 GL
10-2 83831M76T10-000 WEATHERSTRIP, REAR DOOR OUT RHR :GLX 1 Rp293.500 GLX
11-1 83841M76T00-000 WEATHERSTRIP, REAR DOOR OUT LHR :GL 1 Rp111.500 GL
11-2 83841M76T10-000 WEATHERSTRIP, REAR DOOR OUT LHR :GLX 1 Rp293.500 GLX
12 84503M76T00-000 GLASS, REAR DOOR WINDOW RH R :W/REAR DOOR NORMAL GLASS R :GREEN 1 Rp411.500 W/REAR DOOR NORMAL GLASS
13 84504M76T00-000 GLASS, REAR DOOR WINDOW LH R :W/REAR DOOR NORMAL GLASS R :GREEN 1 Rp411.500 W/REAR DOOR NORMAL GLASS

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
