Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANEL FRONT BODY PANEL FLOOR PANEL SIDE BODY PANEL ROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPER INSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATOR HEATER UNIT HEATER BLOWER HEATER DOOR EVAPORATOR UNIT HEATER CONTROL CONSOLE BOX FLOOR CARPET INTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAP FUEL LID OPENER ROOF SIDE AIR BAG ROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDING SPLASH GUARD SLIDING ROOF (W/SUNROOF)EMBLEM WINDSHIELD FRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANEL FRONT DOOR REGULATOR REAR DOOR REGULATOR FRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCK MIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT 2ND SEAT BELT FRONT LH SEAT FRONT RH SEAT REAR SEAT PARCEL SHELF FUEL TANK TOOL CONDENSER A/C PIPING COMPRESSOR

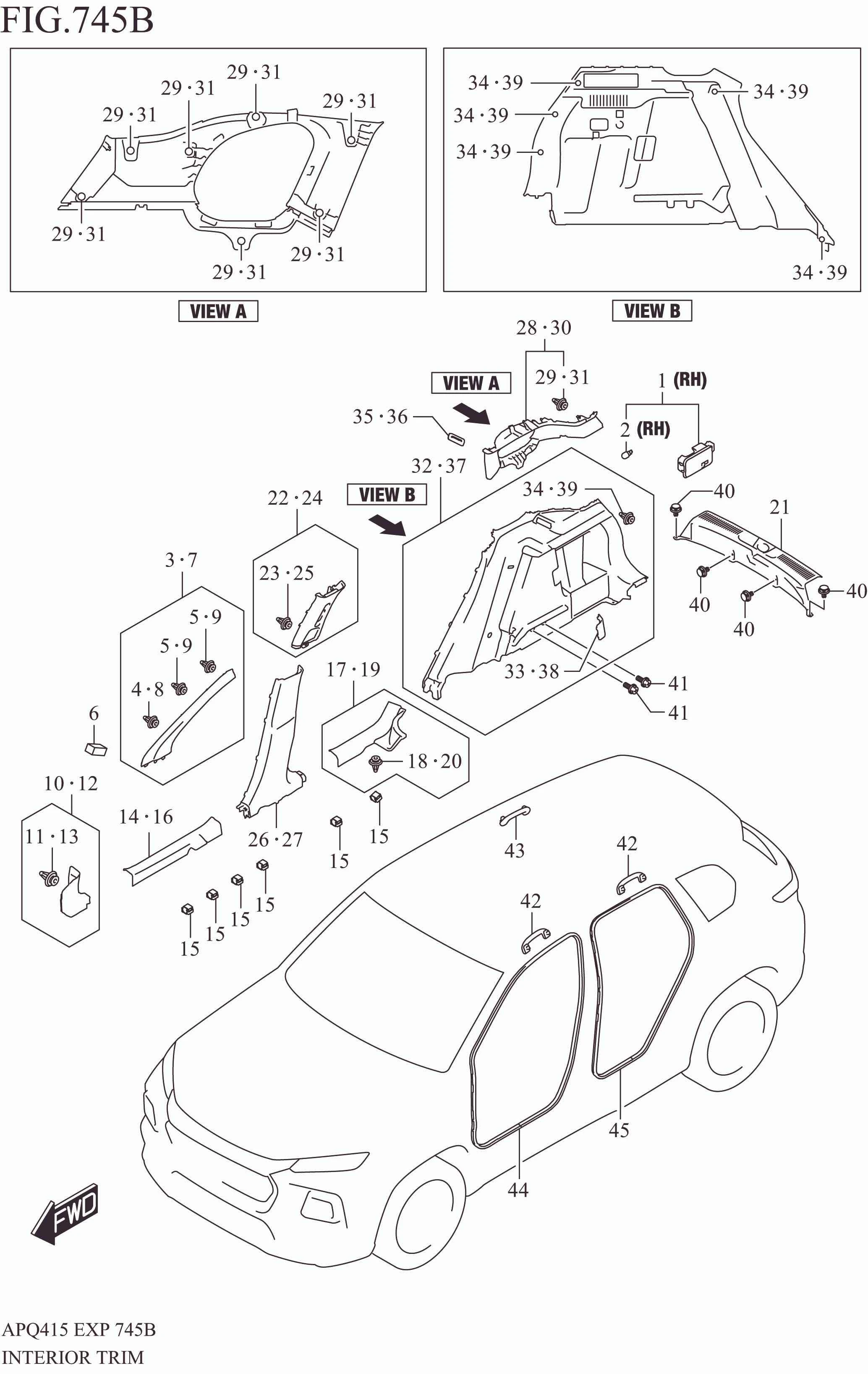

INTERIOR TRIM (W/LUGGAGE LAMP)

No	No. Part	Description	Qty	Price Per Pcs
1	36210M75JA0-000	LAMP ASSY, LUGGAGE ROOM	1	Rp62.500
2	09471-12216-000	.BULB (12V5W)	1	Rp15.000
3	76110M76T00-6GS	TRIM, FRONT PILLAR RH (GRAY)	1	Rp139.500
4	09409M10L04-000	.CLIP	1	Rp4.000
5	09409M10321-000	.CLIP	2	Rp5.000
6	76114M76T00-000	PAD, DASH SIDE UPPER	2	Rp8.500
7	76120M76T00-6GS	TRIM, FRONT PILLAR LH (GRAY)	1	Rp139.500
8	09409M10L04-000	.CLIP	1	Rp4.000
9	09409M10321-000	.CLIP	2	Rp5.000
10	76130M65M00-5PK	TRIM, DASH SIDE RH (BLACK)	1	Rp797.500
11	09409M10321-000	.CLIP	1	Rp5.000
12	76140M65M00-5PK	TRIM, DASH SIDE LH (BLACK)	1	Rp797.500
13	09409M10321-000	.CLIP	1	Rp5.000
14	76151M61M00-5PK	SCUFF, SIDE SILL FRONT RH (BLACK)	1	Rp58.500
15	76158M74L00-000	CLAMP, SIDE SILL SCUFF	12	Rp6.000
16	76161M61M00-5PK	SCUFF, SIDE SILL FRONT LH (BLACK)	1	Rp58.500
17	76170M76T00-5PK	SCUFF, SIDE SILL REAR RH (BLACK)	1	Rp111.500
18	09409M10321-000	.CLIP	1	Rp5.000
19	76180M76T00-5PK	SCUFF, SIDE SILL REAR LH (BLACK)	1	Rp111.500
20	09409M10321-000	.CLIP	1	Rp5.000
21	76191M76T00-5PK	TRIM, TAIL END (BLACK)	1	Rp214.500
22	76210M76T10-6GS	TRIM, CTR PILLAR UPR RH (GRAY)	1	Rp77.500
23	09409M10321-000	.CLIP	1	Rp5.000
24	76220M76T10-6GS	TRIM, CTR PILLAR UPR LH (GRAY)	1	Rp77.500
25	09409M10321-000	.CLIP	1	Rp5.000
26	76231M76T00-5PK	TRIM, CTR PILLAR LOWER RH (BLACK)	1	Rp199.000
27	76241M76T00-5PK	TRIM, CTR PILLAR LOWER LH (BLACK)	1	Rp199.000
28	76250M76T00-6GS	TRIM, QUARTER UPPER RH (GRAY)	1	Rp255.500
29	09409M10321-000	.CLIP	7	Rp5.000
30	76260M76T00-6GS	TRIM, QUARTER UPPER LH (GRAY)	1	Rp255.500
31	09409M10321-000	.CLIP	7	Rp5.000
32	76270M76T10-5PK	TRIM, QUARTER LOWER RH (BLACK)	1	Rp986.000
33	76275M61M00-5PK	.CAP, QUARTER LOWER TRIM RH (BLACK)	1	Rp16.000
34	09409M10321-000	.CLIP	5	Rp5.000
35	76272M54P00-5PK	COVER, REAR SEAT BELT SIDE RH (BLACK)	1	Rp7.500
36	76273M54P00-5PK	COVER, REAR SEAT BELT SIDE LH (BLACK)	1	Rp7.500
37	76280M76T00-5PK	TRIM, QUARTER LOWER LH (BLACK)	1	Rp973.000
38	76276M61M00-5PK	.CAP, QUARTER LOWER TRIM LH (BLACK)	1	Rp16.000
39	09409M10321-000	.CLIP	5	Rp5.000
40	09409M07L01-5PK	CLIP (BLACK)	4	Rp4.000
41	02162-0612A-000	SCREW	4	Rp11.000
42	76410M79M20-6GS	GRIP, ASSISTANT LH (GRAY)	2	Rp82.500
43	76410M79M30-6GS	GRIP, ASSISTANT RH (GRAY)	1	Rp87.500
44	76291M76T00-000	TRIM, FRONT DOOR OPENING	2	Rp276.500
45	76295M76T00-000	TRIM, REAR DOOR OPENING	2	Rp248.500
