Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

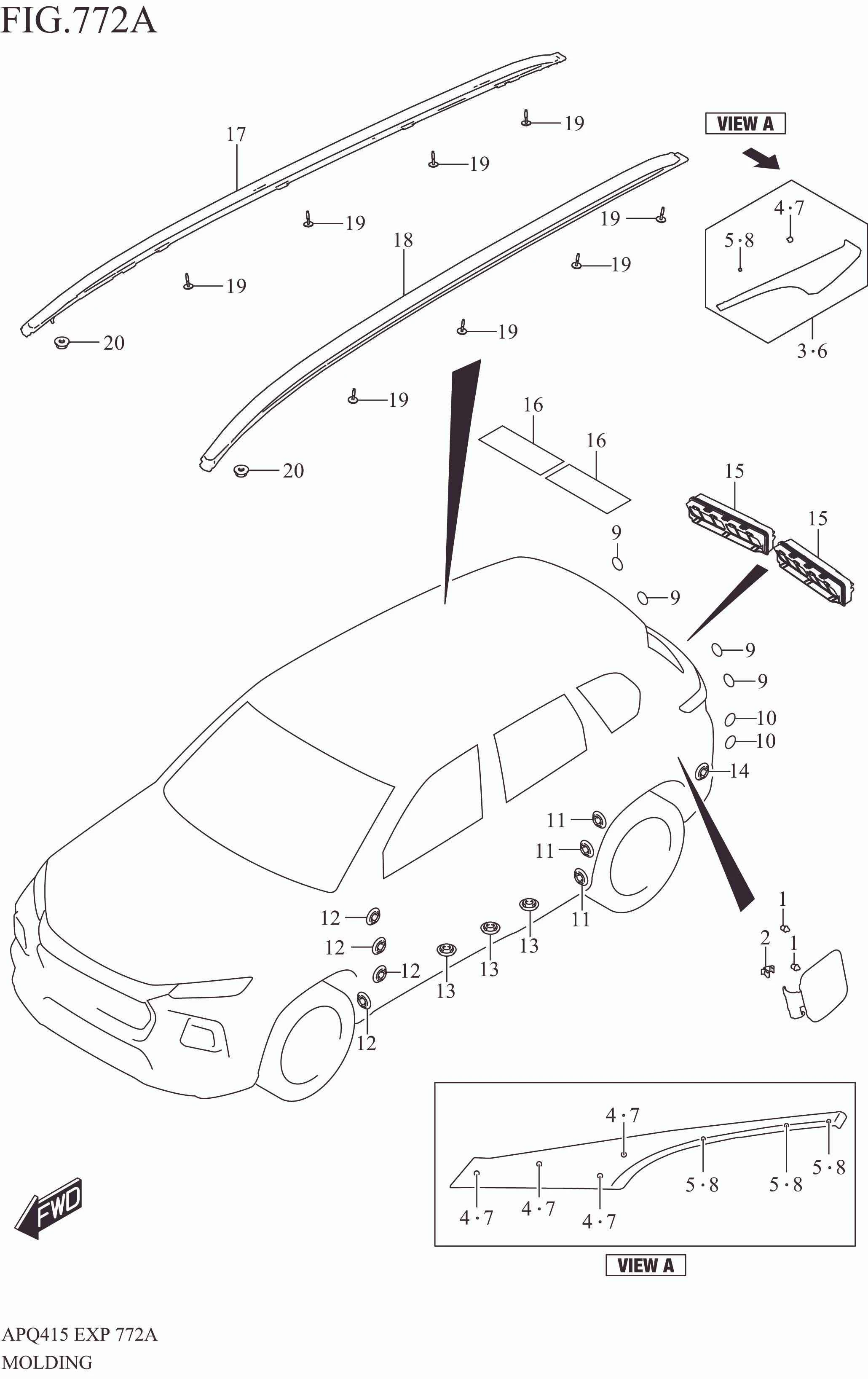

MOLDING

MOLDING
No No. Part Description Qty Price Per Pcs Remarks
1 77116M68P00-000 CUSHION, FUEL LID 2 Rp5.500
2 77121M63J10-000 SPRING, FUEL FILLER DR 1 Rp11.500
3 77180M76T00-ZQS GARNISH, QUARTER RH (SILVER) 1 Rp266.000
4 71812M78F00-000 .CLIP 4 Rp8.000
5 77290M72S00-000 .CLIP, RR FENDER SPLASH GUARD 3 Rp5.500
6 77190M76T00-ZQS GARNISH, QUARTER LH (SILVER) 1 Rp266.000
7 71812M78F00-000 .CLIP 4 Rp8.000
8 77290M72S00-000 .CLIP, RR FENDER SPLASH GUARD 3 Rp5.500
9 77191-79F00-000 FILM 4 Rp7.500
10 77191-79F00-000 FILM 2 Rp7.500
11 09250M15024-000 CAP (OD:23.5) 6 Rp7.500
12 09250M17010-000 CAP (OD:25.5) 8 Rp7.500
13 09250M17010-000 CAP (OD:25.5) 6 Rp7.500
14 09250M17010-000 CAP (OD:25.5) 2 Rp7.500
15 77330M76T00-000 OUTLET, VENT 2 Rp103.000
16 78181M56R00-000 SHEET, ROOF SILENCER R :N/SUNROOF 2 Rp43.500 N/SUNROOF
17-1 78210M76T00-0CB RAIL, ROOF RH (BLACK) R :GL 1 Rp2.253.000 GL
17-2 78210M76T10-QHD RAIL, ROOF RH (SILVER) R :GLX 1 Rp2.305.500 GLX
18-1 78220M76T00-0CB RAIL, ROOF LH (BLACK) R :GL 1 Rp2.253.000 GL
18-2 78220M76T10-QHD RAIL, ROOF LH (SILVER) R :GLX 1 Rp2.305.500 GLX
19 09116-06241-000 BOLT (6X39) 8 Rp29.000
20 08361M2506A-000 NUT 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
