Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

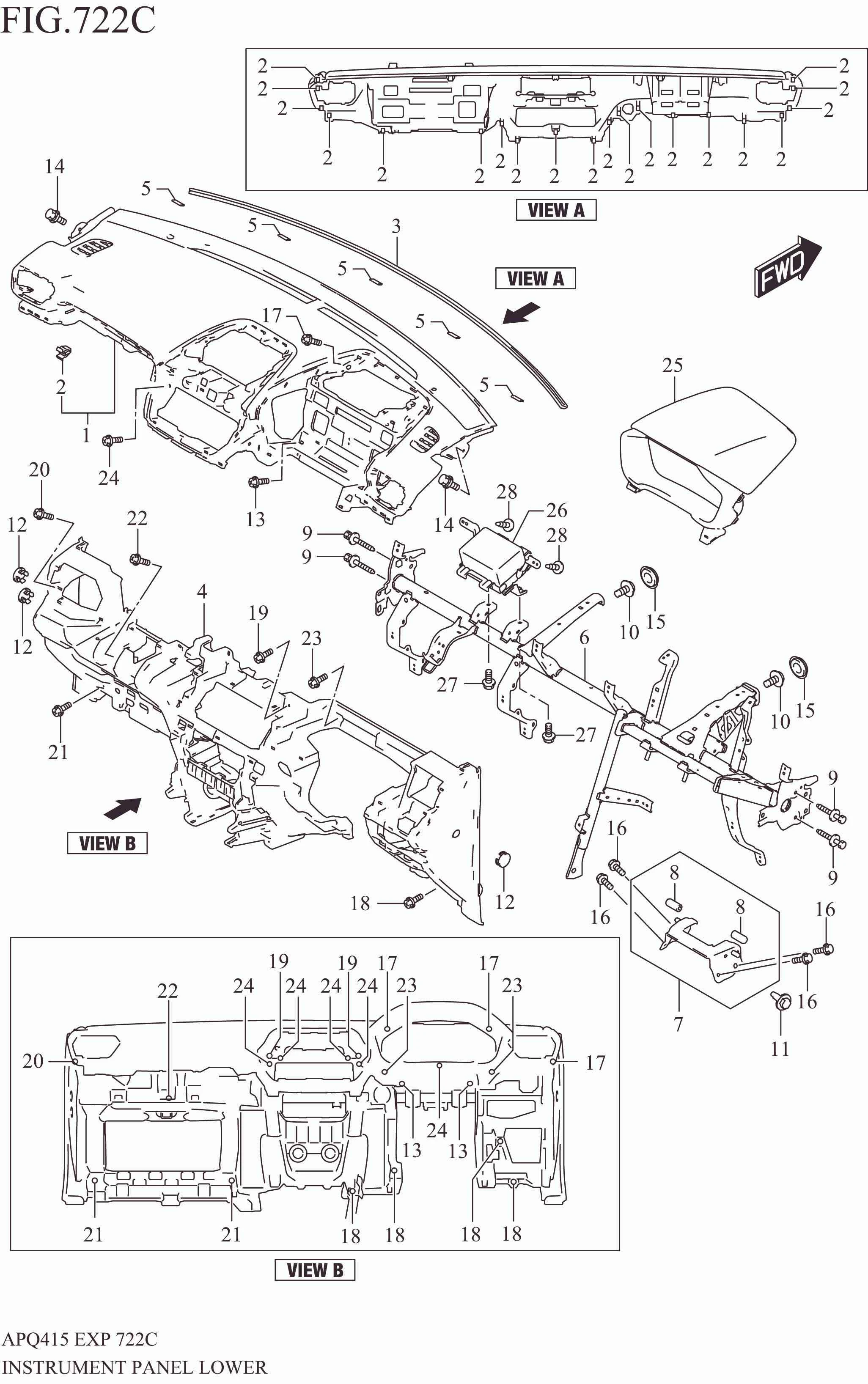

INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)

INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)
No No. Part Description Qty Price Per Pcs Remarks
1 73110M76T00-5PK PANEL, INSTRUMENT MAIN UPR (BLACK) 1 Rp1.384.000
2 09409-08352-000 .CLIP 20 Rp19.000
3 73114M76T00-000 SILENCER, I/P TOP 1 Rp68.000
4 73121M76T00-5PK PANEL, INSTRUMENT MAIN LOWER (BLACK) 1 Rp1.384.000
5 73123-82M00-000 FELT, I/P TOP 5 Rp19.500
6 73200M76T00-000 MEMBER, STEERING SUPPORT 1 Rp1.475.000
7 73261M76T00-000 BRACE, STRG SUPPORT MBR LOWER 1 Rp36.000
8 73132-57L00-000 .CAP 2 Rp38.000
9 73291-50G20-000 BOLT, STRG SPRT MBR SIDE 4 Rp42.500
10 73291-52R00-000 BOLT 2 Rp19.500
11 73291-52R00-000 BOLT 1 Rp19.500
12 73871M73H00-5PK CAP, I/P SIDE (BLACK) 3 Rp5.000
13 09132M05067-000 SCREW (5X12) 2 Rp12.500
14 09138M06054-000 BOLT 2 Rp5.000
15 09250M30011-000 CAP (OD:38.5) 2 Rp4.500
16 01551-0816C-000 BOLT 4 Rp13.500
17 02162-0616A-000 SCREW 3 Rp3.000
18 02162-0616A-000 SCREW 4 Rp3.000
19 02162-0616A-000 SCREW 2 Rp3.000
20 02162-0616A-000 SCREW 1 Rp3.000
21 02162-0616A-000 SCREW 2 Rp3.000
22 02162-0616A-000 SCREW 1 Rp3.000
23 02162-0616A-000 SCREW 2 Rp3.000
24 03541-0516A-000 SCREW 5 Rp3.500
25 73310M76T00-5PK PANEL, INSTRUMENT CLUSTER (BLACK) 1 Rp255.000
26 73910M76T00-000 MODULE ASSY, PASSENGER AIR BAGR :SEE NOTE 1 Rp2.437.000 NOTE : SPECIAL PROCEDURES ARE REQUIRED FOR SERVICING OR REPLACING AN AIR BAG. FOR THAT REASON, ONLY A FACTORY-AUTHORIZED DEA
27 01551-0816C-000 BOLT 2 Rp13.500
28 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
