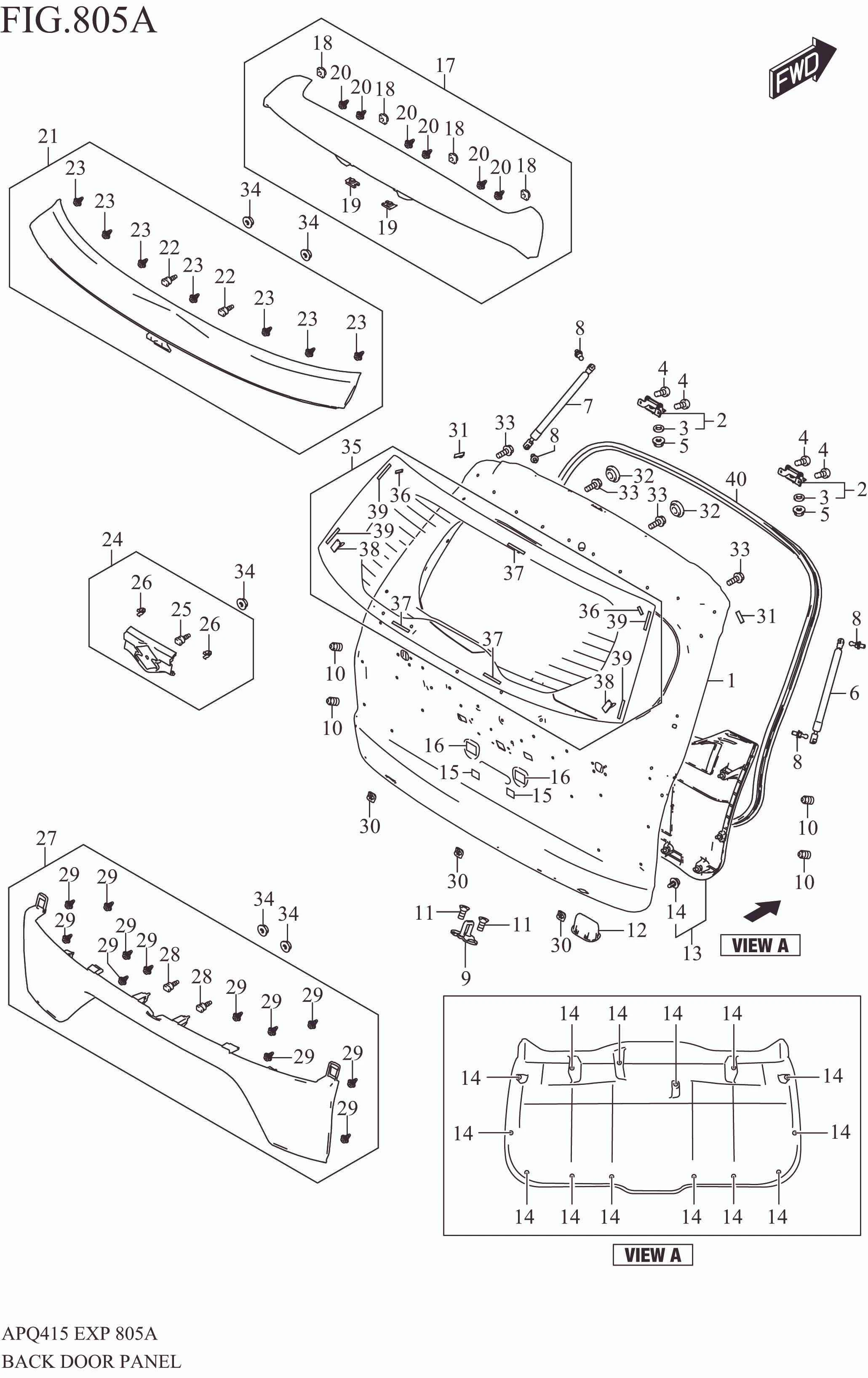

BACK DOOR PANEL

BACK DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 69100M76T10-000 PANEL ASSY, BACK DOOR 1 Rp2.713.000
2 69510M72R00-000
SUB: 69510M72R10-000		 HINGE, BACK DR 2 Rp76.000
3 69571M76T00-000 .PACKING, BACK DR HNG 4 Rp4.500
4 09111-06086-000 BOLT (6X12) 4 Rp16.000
5 08361-2508A-000 NUT 4 Rp16.500
6 81850M76T00-000 BALANCER, BACK DOOR RH 1 Rp354.000
7 81860M76T00-000 BALANCER, BACK DOOR LH 1 Rp354.000
8 81871M55T00-000 BALLSTUD, BACK DR BALANCER 4 Rp32.000
9 82650M66R00-000 STRIKER, BACK DR LATCH 1 Rp102.000
10 82683M72R00-000 CUSHION, BK DR LWR 4 Rp10.500
11 09139-08025-000 SCREW (8X20) 2 Rp23.000
12 82841-82G02-000 HANDLE, BACK DR INNER 1 Rp7.000
13 83770M76T00-5PK TRIM, BACK DOOR (BLACK) 1 Rp490.000
14 09409M10321-000 .CLIP 14 Rp5.000
15 44281-29C00-000 CUSHION (30X30X3) 2 Rp6.000
16 77151-82000-000 FILM 2 Rp7.000
17-14 839A0M76T00-ZQD SPOILER ASSY, BACK DOOR R :GLX (BLACK) 1 Rp1.596.500 GLX
17-13 839A0M76T00-ZHJ SPOILER ASSY, BACK DOOR R :GLX (WHITE) 1 Rp1.596.500 GLX
17-12 839A0M76T00-ZAM SPOILER ASSY, BACK DOOR R :GLX (BLACK) R :BODY COLOR:C9J,ERD,ESL,ZAM 1 Rp1.596.500 GLX
17-11 839A0M76T00-WBH SPOILER ASSY, BACK DOOR (BLUE)R :GLX 1 Rp1.460.500 GLX
17-10 839A0M76T00-WBG SPOILER ASSY, BACK DOOR (RED) R :GLX 1 Rp1.596.500 GLX
17-6 839A0M76T00-ZHJ SPOILER ASSY, BACK DOOR R :GL (WHITE) 1 Rp1.596.500 GL
17-9 839A0M76T00-WBF SPOILER ASSY, BACK DOOR (GRAY)R :GLX 1 Rp1.596.500 GLX
17-7 839A0M76T00-ZQD SPOILER ASSY, BACK DOOR R :GL (BLACK) 1 Rp1.596.500 GL
17-5 839A0M76T00-ZAM SPOILER ASSY, BACK DOOR R :GL (BLACK) 1 Rp1.596.500 GL
17-4 839A0M76T00-WBH SPOILER ASSY, BACK DOOR (BLUE)R :GL 1 Rp1.460.500 GL
17-3 839A0M76T00-WBG SPOILER ASSY, BACK DOOR (RED) R :GL 1 Rp1.596.500 GL
17-2 839A0M76T00-WBF SPOILER ASSY, BACK DOOR (GRAY)R :GL 1 Rp1.596.500 GL
17-1 839A0M76T00-WBE SPOILER ASSY, BACK DOOR R :GL (SILVER) 1 Rp1.596.500 GL
17-8 839A0M76T00-WBE SPOILER ASSY, BACK DOOR R :GLX (SILVER) 1 Rp1.596.500 GLX
18 775A2M76T00-000 .NUT, BACK DOOR SPOILER 4 Rp46.500
19 DISCONTINUE
SUB: 09148-05052-000		 .NUT (M5) 2 -
20 09409M10332-000 .CLIP 6 Rp6.000
21-14 839D0M76T00-ZQD GARNISH, BACK DR UPR (BLACK) R :GLX 1 Rp845.500 GLX
21-13 839D0M76T00-ZHJ GARNISH, BACK DR UPR (WHITE) R :GLX R :BODY COLOR:C9J,ZHJ 1 Rp845.500 GLX
21-12 839D0M76T00-ZAM GARNISH, BACK DR UPR (BLACK) R :GLX 1 Rp845.500 GLX
21-11 839D0M76T00-WBH GARNISH, BACK DR UPR (BLUE) R :GLX 1 Rp845.500 GLX
21-10 839D0M76T00-WBG GARNISH, BACK DR UPR (RED) R :GLX R :BODY COLOR:ESL,WBG 1 Rp845.500 GLX
21-9 839D0M76T00-WBF GARNISH, BACK DR UPR (GRAY) R :GLX 1 Rp845.500 GLX
21-7 839D0M76T00-ZQD GARNISH, BACK DR UPR (BLACK) R :GL 1 Rp845.500 GL
21-6 839D0M76T00-ZHJ GARNISH, BACK DR UPR (WHITE) R :GL 1 Rp845.500 GL
21-8 839D0M76T00-WBE GARNISH, BACK DR UPR (SILVER) R :GLX R :BODY COLOR:ERD,WBE 1 Rp845.500 GLX
21-1 839D0M76T00-WBE GARNISH, BACK DR UPR (SILVER) R :GL 1 Rp845.500 GL
21-2 839D0M76T00-WBF GARNISH, BACK DR UPR (GRAY) R :GL 1 Rp845.500 GL
21-3 839D0M76T00-WBG GARNISH, BACK DR UPR (RED) R :GL 1 Rp845.500 GL
21-4 839D0M76T00-WBH GARNISH, BACK DR UPR (BLUE) R :GL 1 Rp845.500 GL
21-5 839D0M76T00-ZAM GARNISH, BACK DR UPR (BLACK) R :GL 1 Rp845.500 GL
22 83947M76T10-000 .BOLT, BACK DOOR GARNISH 2 Rp14.500
23 09409M10332-000 .CLIP 7 Rp6.000
24 839E0M76T00-ZAM GARNISH, BACK DR CTR (BLACK) 1 Rp302.000
25 83947M76T00-000 .BOLT, BACK DOOR GARNISH 1 Rp15.000
26 09409-08352-000 .CLIP 2 Rp19.000
27-14 839F0M76T00-ZQD GARNISH, BACK DR LWR (BLACK) R :GLX 1 Rp1.290.000 GLX
27-13 839F0M76T00-ZHJ GARNISH, BACK DR LWR (WHITE) R :GLX R :BODY COLOR:C9J,ZHJ 1 Rp1.290.000 GLX
27-12 839F0M76T00-ZAM GARNISH, BACK DR LWR (BLACK) R :GLX 1 Rp1.290.000 GLX
27-11 839F0M76T00-WBH GARNISH, BACK DR LWR (BLUE) R :GLX 1 Rp1.290.000 GLX
27-10 839F0M76T00-WBG GARNISH, BACK DR LWR (RED) R :GLX R :BODY COLOR:ESL,WBG 1 Rp1.290.000 GLX
27-9 839F0M76T00-WBF GARNISH, BACK DR LWR (GRAY) R :GLX 1 Rp1.290.000 GLX
27-8 839F0M76T00-WBE GARNISH, BACK DR LWR (SILVER) R :GLX R :BODY COLOR:ERD,WBE 1 Rp1.280.000 GLX
27-6 839F0M76T00-ZHJ GARNISH, BACK DR LWR (WHITE) R :GL 1 Rp1.290.000 GL
27-5 839F0M76T00-ZAM GARNISH, BACK DR LWR (BLACK) R :GL 1 Rp1.290.000 GL
27-4 839F0M76T00-WBH GARNISH, BACK DR LWR (BLUE) R :GL 1 Rp1.290.000 GL
27-3 839F0M76T00-WBG GARNISH, BACK DR LWR (RED) R :GL 1 Rp1.290.000 GL
27-2 839F0M76T00-WBF GARNISH, BACK DR LWR (GRAY) R :GL 1 Rp1.290.000 GL
27-1 839F0M76T00-WBE GARNISH, BACK DR LWR (SILVER) R :GL 1 Rp1.280.000 GL
27-7 839F0M76T00-ZQD GARNISH, BACK DR LWR (BLACK) R :GL 1 Rp1.290.000 GL
28 83947M76T10-000 .BOLT, BACK DOOR GARNISH 2 Rp14.500
29 09409M10332-000 .CLIP 12 Rp6.000
30 83994M72R00-000 CAP, BACK DR DRAIN HOLE 3 Rp7.000
31 84515M65D10-000 FEMALE, GLASS FASTENER NO.2 2 Rp22.000
32 09250-30002-000 CAP (OD:40) 2 Rp5.500
33 01551-0612C-000 BOLT 4 Rp18.000
34 08316-1006A-000 NUT 5 Rp2.000
35 84570M76T20-000 GLASS, BACK DOOR WINDOW R :W/REAR DOOR NORMAL GLASS R :GREEN 1 Rp1.392.000 W/REAR DOOR NORMAL GLASS
36 84513M75J00-000 .MALE, GLASS FASTENER NO.2 2 Rp8.500
37 84572M71L00-000 .SPACER 3 Rp5.500
38 84575M74L00-000 .CLIP, GLASS FASTENER 2 Rp16.000
39 84617M60M00-000 .SPACER, BACK DR WINDOW 4 Rp4.500
40 84681M76T00-000 WEATHERSTRIP, BACK DOOR OPNG 1 Rp469.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
