Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

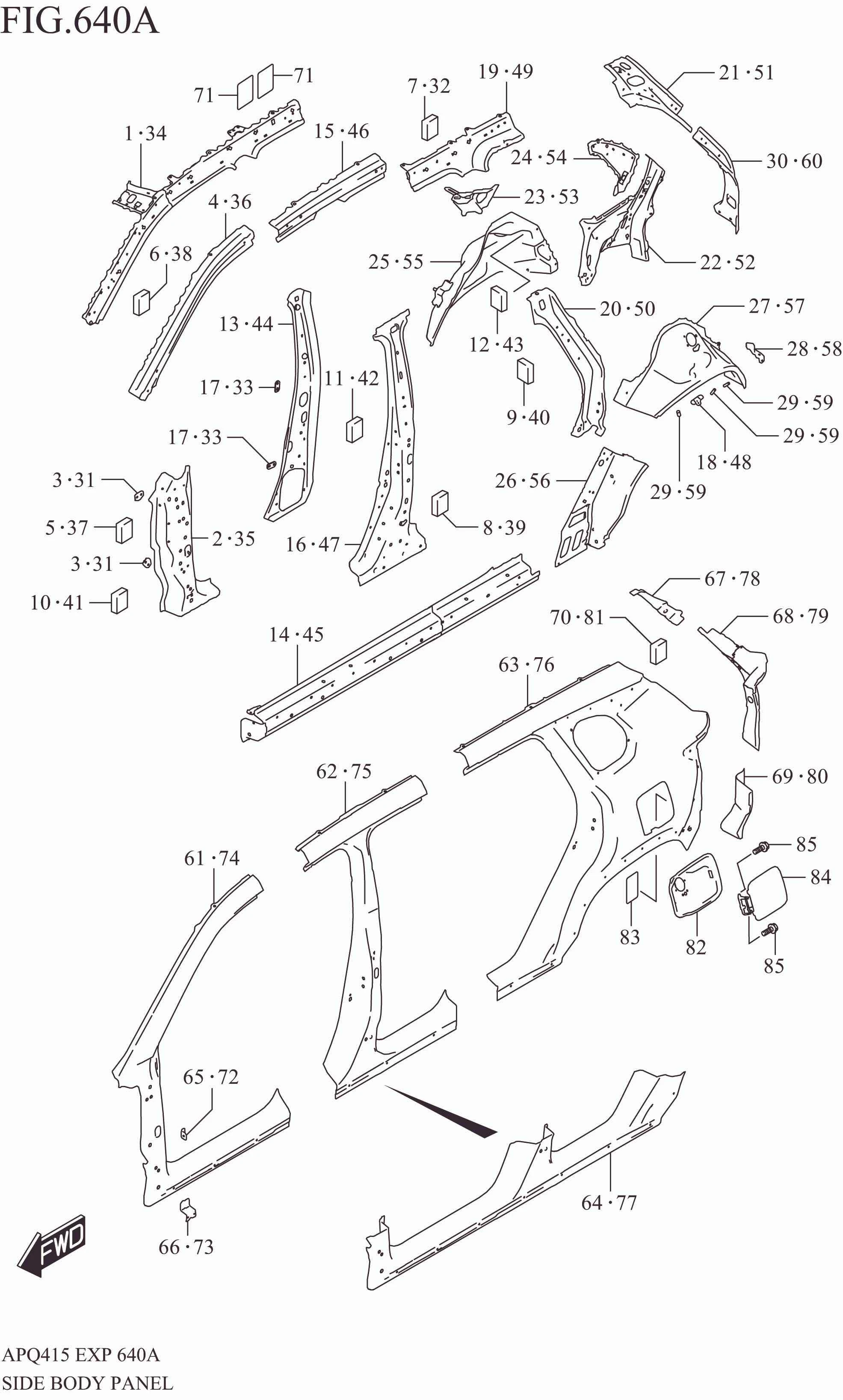

SIDE BODY PANEL

SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 63110M76T00-000 PANEL, FR PILLAR INNER RH 1 Rp1.197.000
2 63140M76T00-000 REINF, FRONT DOOR HINGE RH 1 Rp1.740.000
3 63144M76M00-000 RETAINER, FR DR HNG LWR 2 Rp9.500
4 63151M76T00-000 REINF, FR PILLAR UPPER RH 1 Rp737.500
5 83921-82C00-000 PAD 1 Rp51.000
6 83921-82C00-000 PAD 1 Rp51.000
7 83921-82C00-000 PAD 1 Rp51.000
8 83921-82C00-000 PAD 1 Rp51.000
9 83921-82C00-000 PAD 1 Rp51.000
10 83921-82C00-000 PAD 1 Rp51.000
11 83921-82C00-000 PAD 1 Rp51.000
12 83921-82C00-000 PAD 1 Rp51.000
13 63211M76T00-000 PANEL, CTR PILLAR INNER RH 1 Rp783.000
14 63220M76T00-000 STRENGTH, SIDE SILL RH 1 Rp1.700.000
15 63231M76T00-000 REINF, ROOF SIDE RH 1 Rp411.500
16 63240M76T00-000 REINF, REAR DOOR HINGE RH 1 Rp1.671.500
17 63243M74P00-000 RETAINER, RR DR HNG 2 Rp8.500
18 59191M76T00-000 BRACKET, REAR FENDER LINING 1 Rp24.500
19 63310M76T00-000 RAIL, ROOF SIDE INR RR RH 1 Rp506.000
20 63330M76T00-000 REINF, QTR INNER FR RH 1 Rp556.000
21 63340M76T00-000 EXTENSION, QTR INR UPR RH 1 Rp740.500
22 63350M76T00-000 PANEL, QTR INNER LWR RH 1 Rp970.000
23 63360M76T00-000 STRIKER, RR SEAT BACK RH 1 Rp396.500
24 63370M76T00-000 PANEL, QTR WINDOW REAR RH 1 Rp238.000
25 63410M76T00-000 PANEL, WHEEL HOUSE INNER RH 1 Rp1.924.500
26 63430M76T00-000 PANEL, WHEEL HOUSE FR RH 1 Rp639.500
27 63481M76T00-000 PANEL, WHEEL HOUSE OUTER RH 1 Rp743.000
28 63483M56P00-000 BRACKET, RR BUMPER RH 1 Rp45.500
29 09119-05018-000 BOLT (5X14.3) 3 Rp13.000
30 63342M76T00-000 PANEL, LAMP HOUSE INNER RH 1 Rp379.000
31 63144M76M00-000 RETAINER, FR DR HNG LWR 2 Rp9.500
32 83921-82C00-000 PAD 1 Rp51.000
33 63243M74P00-000 RETAINER, RR DR HNG 2 Rp8.500
34 63510M76T00-000 PANEL, FR PILLAR INNER LH 1 Rp1.197.000
35 63540M76T00-000 REINF, FRONT DOOR HINGE LH 1 Rp1.740.000
36 63551M76T00-000 REINF, FR PILLAR UPPER LH 1 Rp737.500
37 83921-82C00-000 PAD 1 Rp51.000
38 83921-82C00-000 PAD 1 Rp51.000
39 83921-82C00-000 PAD 1 Rp51.000
40 83921-82C00-000 PAD 1 Rp51.000
41 83921-82C00-000 PAD 1 Rp51.000
42 83921-82C00-000 PAD 1 Rp51.000
43 83921-82C00-000 PAD 1 Rp51.000
44 63611M76T00-000 PANEL, CTR PILLAR INNER LH 1 Rp783.000
45 63620M76T00-000 STRENGTH, SIDE SILL LH 1 Rp1.700.000
46 63631M76T00-000 REINF, ROOF SIDE LH 1 Rp411.500
47 63640M76T00-000 REINF, REAR DOOR HINGE LH 1 Rp1.671.500
48 59191M76T00-000 BRACKET, REAR FENDER LINING 1 Rp24.500
49 63710M76T00-000 RAIL, ROOF SIDE INR RR LH 1 Rp506.000
50 63730M76T00-000 REINF, QTR INNER FR LH 1 Rp556.000
51 63740M76T00-000 EXTENSION, QTR INR UPR LH 1 Rp740.500
52 63750M76T00-000 PANEL, QTR INNER LWR LH 1 Rp970.000
53 63760M76T00-000 STRIKER, RR SEAT BACK LH 1 Rp396.500
54 63770M76T00-000 PANEL, QTR WINDOW REAR LH 1 Rp238.000
55 63810M76T00-000 PANEL, WHEEL HOUSE INNER LH 1 Rp1.924.500
56 63830M76T00-000 PANEL, WHEEL HOUSE FR LH 1 Rp639.500
57 63881M76T00-000 PANEL, WHEEL HOUSE OUTER LH 1 Rp743.000
58 63883M56P00-000 BRACKET, RR BUMPER LH 1 Rp63.000
59 09119-05018-000 BOLT (5X14.3) 3 Rp13.000
60 63742M76T00-000 PANEL, LAMP HOUSE INNER LH 1 Rp379.000
61 64111M76T00-P11 PANEL, A-PILLAR RH 1 Rp4.737.500
62 64111M76T00-P21 PANEL, B-PILLAR RH 1 Rp4.737.500
63 64111M76T00-P31 PANEL, QUARTER RH 1 Rp4.576.000
64 64111M76T00-P41 PANEL, SIDE SILL RH 1 Rp5.555.500
65 64112M55T00-000 BRACKET, FR FENDER 1 Rp13.500
66 64112M76T00-000 BRACKET, FR FENDER LOWER 1 Rp36.500
67 64120M76T00-000 EXTENSION, SIDE BODY OTR RH 1 Rp225.000
68 64130M76T00-000 PANEL, RR LAMP HOUSE OTR RH 1 Rp1.397.000
69 64141M76T00-000 EXTENSION, SIDE BODY OTR LWR RH 1 Rp174.500
70 83921-82C00-000 PAD 1 Rp51.000
71 69141M76T00-000 SHEET, SIDE BODY OUTER 2 Rp63.500
72 64112M55T00-000 BRACKET, FR FENDER 1 Rp13.500
73 64112M76T00-000 BRACKET, FR FENDER LOWER 1 Rp36.500
74 64511M76T00-P11 PANEL, A-PILLAR LH 1 Rp4.737.500
75 64511M76T00-P21 PANEL, B-PILLAR LH 1 Rp4.737.500
76 64511M76T00-P31 PANEL, QUARTER LH 1 Rp4.576.000
77 64511M76T00-P41 PANEL, SIDE SILL LH 1 Rp5.555.500
78 64520M76T00-000 EXTENSION, SIDE BODY OTR LH 1 Rp225.000
79 64530M76T00-000 PANEL, RR LAMP HOUSE OTR LH 1 Rp1.397.000
80 64541M76T00-000 EXTENSION, SIDE BODY OTR LWR LH 1 Rp174.500
81 83921-82C00-000 PAD 1 Rp51.000
82 64571M76T00-000 BOX, FUEL FILLER 1 Rp237.500
83 69142M76T00-000 SHEET, SIDE BODY OUTER 1 Rp48.500
84 64850M76T00-000 DOOR, FUEL FILLER 1 Rp927.000
85 01550M0612A-000 BOLT 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
