Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANEL FRONT BODY PANEL FLOOR PANEL SIDE BODY PANEL ROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPER INSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATOR HEATER UNIT HEATER BLOWER HEATER DOOR EVAPORATOR UNIT HEATER CONTROL CONSOLE BOX FLOOR CARPET INTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAP FUEL LID OPENER ROOF SIDE AIR BAG ROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDING SPLASH GUARD SLIDING ROOF (W/SUNROOF)EMBLEM WINDSHIELD FRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANEL FRONT DOOR REGULATOR REAR DOOR REGULATOR FRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCK MIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT 2ND SEAT BELT FRONT LH SEAT FRONT RH SEAT REAR SEAT PARCEL SHELF FUEL TANK TOOL CONDENSER A/C PIPING COMPRESSOR

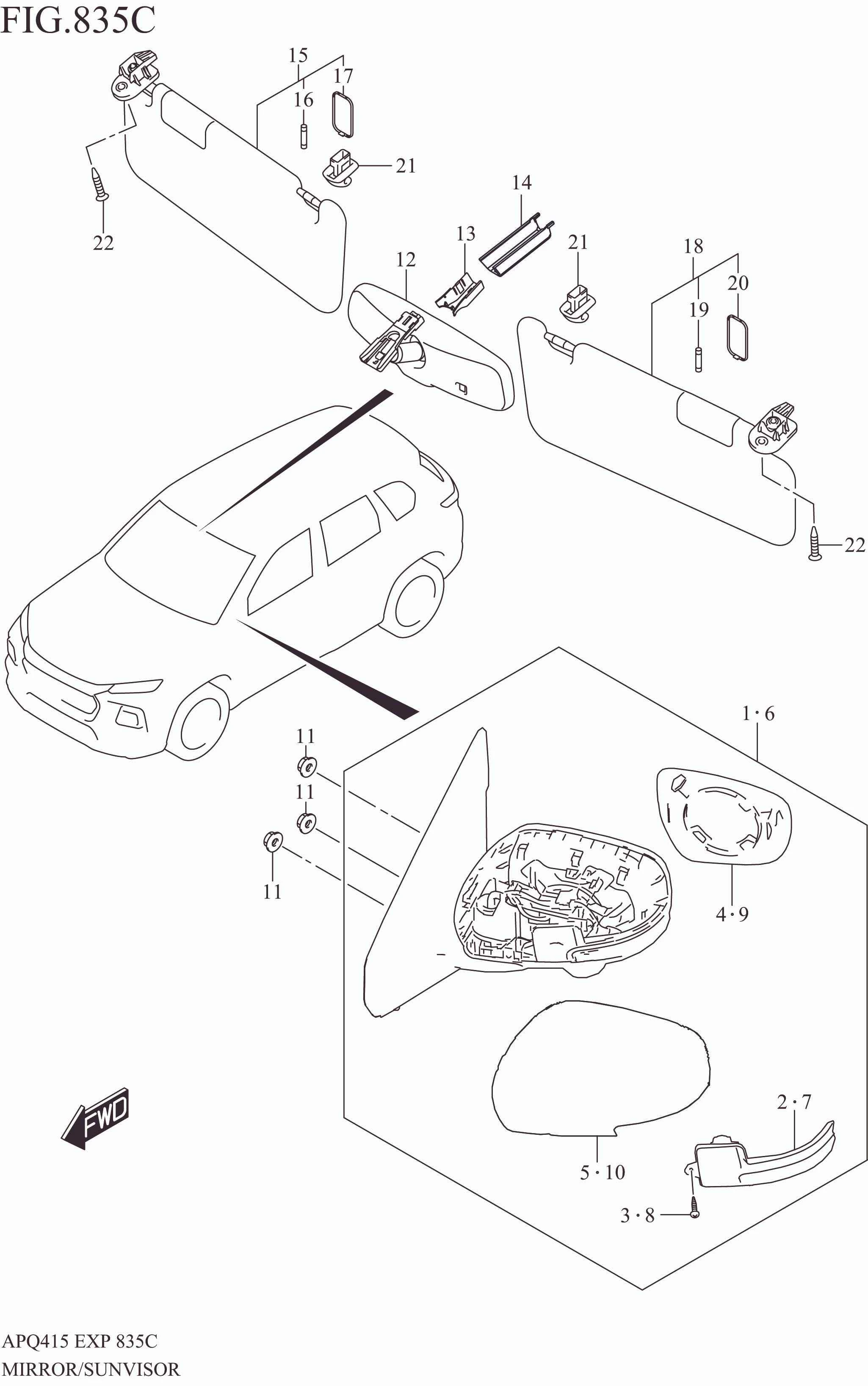

MIRROR/SUNVISOR (W/SIDE CAMERA)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	84701M76TF0-WBF	MIRROR ASSY, RR VIEW RH (GRAY)	1	Rp3.000.000
1-3	84701M76TF0-WBG	MIRROR ASSY, RR VIEW RH (RED)	1	Rp3.000.000
1-4	84701M76TF0-WBH	MIRROR ASSY, RR VIEW RH (BLUE)	1	Rp3.000.000
1-5	84701M76TF0-ZAM	MIRROR ASSY, RR VIEW RH (BLACK) R :BODY COLOR:C9J,ERD,ESL,ZAM	1	Rp3.000.000
1-6	84701M76TF0-ZHJ	MIRROR ASSY, RR VIEW RH (WHITE)	1	Rp3.000.000
1-7	84701M76TF0-ZQD	MIRROR ASSY, RR VIEW RH (BLACK)	1	Rp3.000.000
1-1	84701M76TF0-WBE	MIRROR ASSY, RR VIEW RH (SILVER)	1	Rp3.000.000
2	36410M76M00-000	.LAMP ASSY, SIDE TURN SIG RH	1	Rp357.500
3	84717M76M00-000	.SCREW, TURN SIGNAL LAMP	1	Rp8.500
4	84730M76T00-000	.GLASS, OUT RR VIEW MIR RH	1	Rp138.500
5-1	84718M76T10-WBE	.COVER, MIRROR VISOR RH (SILVER)	1	Rp317.000
5-7	84718M76T10-ZQD	.COVER, MIRROR VISOR RH (BLACK)	1	Rp317.000
5-6	84718M76T10-ZHJ	.COVER, MIRROR VISOR RH (WHITE)	1	Rp317.000
5-5	84718M76T10-ZAM	.COVER, MIRROR VISOR RH R :BODY COLOR:C9J,ERD,ESL,ZAM (BLACK)	1	Rp317.000	BODY COLOR:C9J,ERD,ESL,ZAM
5-4	84718M76T10-WBH	.COVER, MIRROR VISOR RH (BLUE)	1	Rp301.500
5-3	84718M76T10-WBG	.COVER, MIRROR VISOR RH (RED)	1	Rp317.000
5-2	84718M76T10-WBF	.COVER, MIRROR VISOR RH (GRAY)	1	Rp317.000
6-7	84702M76TF0-ZQD	MIRROR ASSY, RR VIEW LH (BLACK)	1	Rp3.000.000
6-6	84702M76TF0-ZHJ	MIRROR ASSY, RR VIEW LH (WHITE)	1	Rp3.000.000
6-5	84702M76TF0-ZAM	MIRROR ASSY, RR VIEW LH (BLACK) R :BODY COLOR:C9J,ERD,ESL,ZAM	1	Rp3.000.000
6-3	84702M76TF0-WBG	MIRROR ASSY, RR VIEW LH (RED)	1	Rp3.000.000
6-2	84702M76TF0-WBF	MIRROR ASSY, RR VIEW LH (GRAY)	1	Rp3.000.000
6-1	84702M76TF0-WBE	MIRROR ASSY, RR VIEW LH(SILVER)	1	Rp3.000.000
6-4	84702M76TF0-WBH	MIRROR ASSY, RR VIEW LH (BLUE)	1	Rp3.000.000
7	36430M76M00-000	.LAMP ASSY, SIDE TURN SIG LH	1	Rp357.500
8	84717M76M00-000	.SCREW, TURN SIGNAL LAMP	1	Rp8.500
9	84740M76T00-000	.GLASS, OUT RR VIEW MIR LH	1	Rp138.500
10-7	84728M76T10-ZQD	.COVER, MIRROR VISOR LH (BLACK)	1	Rp317.000
10-6	84728M76T10-ZHJ	.COVER, MIRROR VISOR LH (WHITE)	1	Rp317.000
10-5	84728M76T10-ZAM	.COVER, MIRROR VISOR LH R :BODY COLOR:C9J,ERD,ESL,ZAM (BLACK)	1	Rp317.000	BODY COLOR:C9J,ERD,ESL,ZAM
10-4	84728M76T10-WBH	.COVER, MIRROR VISOR LH (BLUE)	1	Rp301.500
10-3	84728M76T10-WBG	.COVER, MIRROR VISOR LH (RED)	1	Rp317.000
10-2	84728M76T10-WBF	.COVER, MIRROR VISOR LH (GRAY)	1	Rp317.000
10-1	84728M76T10-WBE	.COVER, MIRROR VISOR LH (SILVER)	1	Rp317.000
11	08316-1006A-000	NUT	6	Rp2.000
12	84703M54P00-000	MIRROR ASSY, INSIDE RR VIEW	1	Rp1.951.000
13	84781M61M00-000	COVER, INSIDE MIRROR STAY LWR	1	Rp64.000
14	84781M82P00-000	COVER, INSIDE MIRROR STAY UPR	1	Rp9.000
15	84801M76T70-6GS	SUNVISOR ASSY RH (GRAY)	1	Rp599.000
16	84841M76T00-000	.BULB, SUNVISOR	1	Rp67.000
17	84842M76T00-000	.LENS, SUNVISOR RH	1	Rp14.500
18	84802M76T81-6GS	SUNVISOR ASSY LH (GRAY)	1	Rp678.500
19	84841M76T00-000	.BULB, SUNVISOR	1	Rp67.000
20	84843M76T00-000	.LENS, SUNVISOR LH	1	Rp14.500
21	84851M66R00-6GS	HOLDER, SUNVISOR (GRAY)	2	Rp8.500
22	09139M05095-000	SCREW (5X13)	2	Rp9.000
