Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANEL FRONT BODY PANEL FLOOR PANEL SIDE BODY PANEL ROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPER INSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATOR HEATER UNIT HEATER BLOWER HEATER DOOR EVAPORATOR UNIT HEATER CONTROL CONSOLE BOX FLOOR CARPET INTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAP FUEL LID OPENER ROOF SIDE AIR BAG ROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDING SPLASH GUARD SLIDING ROOF (W/SUNROOF)EMBLEM WINDSHIELD FRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANEL FRONT DOOR REGULATOR REAR DOOR REGULATOR FRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCK MIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT 2ND SEAT BELT FRONT LH SEAT FRONT RH SEAT REAR SEAT PARCEL SHELF FUEL TANK TOOL CONDENSER A/C PIPING COMPRESSOR

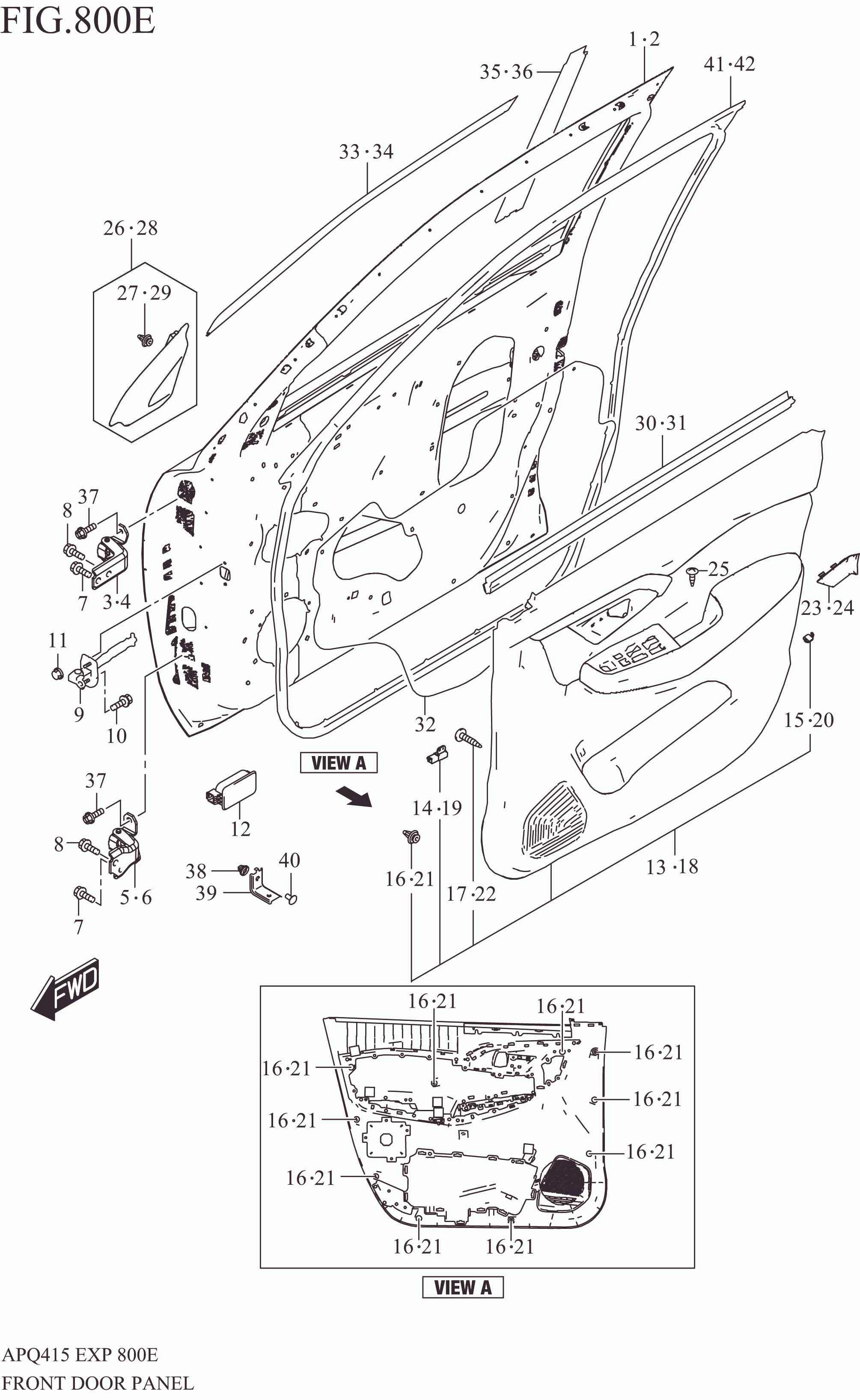

FRONT DOOR PANEL (SEE NOTE)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001M76T00-000	PANEL ASSY, FRONT DOOR RH	1	Rp3.280.000
2	68002M76T00-000	PANEL ASSY, FRONT DOOR LH	1	Rp3.280.000
3	69310M68L00-000	HINGE, FR DR UPR RH	1	Rp82.500
4	69320M68L00-000	HINGE, FR DR UPR LH	1	Rp82.500
5	69330M68L00-000	HINGE, FR DR LWR RH	1	Rp74.000
6	69340M68L00-000	HINGE, FR DR LWR LH	1	Rp74.000
7	09113M08L02-000	BOLT (8X20)	4	Rp8.500
8	01550-0820A-000	BOLT	4	Rp5.500
9	81810M55T00-000	STOP, FR DR OPEN	2	Rp195.000
10	09112-08015-000	BOLT (8X25)	2	Rp32.000
11	08316-1006A-000	NUT	4	Rp2.000
12	36216M74L00-5PK	COVER (BLACK)	2	Rp9.500
13	83710M76T10-EVM	TRIM, FRONT DOOR RH (BLACK/SILVER)	1	Rp2.828.000
14	36550M76T00-000	.LAMP ASSY, DOOR ILLUM RH	1	Rp56.000
15	83751M76T00-5PK	.CAP, DOOR INSIDE PULL CASE (BLACK)	1	Rp47.000
16	09409M10321-000	.CLIP	10	Rp5.000
17	03541-0410A-000	.SCREW	1	Rp11.000
18	83720M76T10-EVM	TRIM, FRONT DOOR LH (BLACK/SILVER)	1	Rp2.828.000
19	36560M76T00-000	.LAMP ASSY, DOOR ILLUM LH	1	Rp56.000
20	83751M76T00-5PK	.CAP, DOOR INSIDE PULL CASE (BLACK)	1	Rp47.000
21	09409M10321-000	.CLIP	10	Rp5.000
22	03541-0410A-000	.SCREW	1	Rp11.000
23	83755M74L00-5PK	CAP, INSIDE HDL BEZEL RH (BLACK)	1	Rp8.500
24	83756M74L00-5PK	CAP, INSIDE HDL BEZEL LH (BLACK)	1	Rp8.500
25	09132-05069-000	SCREW	2	Rp20.000	RHD:W/TWEETER:N/FRONT DOOR COURTESY LAMP
26	84750M76T10-5PK	GARNISH, SASH BRKT INR RH (BLACK)	1	Rp31.500
27	09409M10321-000	.CLIP	1	Rp5.000
28	84790M76T10-5PK	GARNISH, SASH BRKT INR LH (BLACK)	1	Rp31.500
29	09409M10321-000	.CLIP	1	Rp5.000
30	83851M76T00-000	WEATHERSTRIP, FR DOOR INNER RH	1	Rp74.500
31	83861M76T00-000	WEATHERSTRIP, FR DOOR INNER LH	1	Rp74.500
32	83911M76T00-000	COVER, FRONT DOOR SEALING	2	Rp13.000
33	83921M76T10-0CB	TAPE, FRONT DOOR OUTER ROOF R :BODY COLOR:C9J,ERD,ESL,WBE,RH (BLACK) R :WBF,WBG,WBH,ZHJ,ZQD	1	Rp127.000	BODY COLOR:C9J,ERD,ESL,WBE,WBF,WBG,WBH,ZHJ,ZQD
34	83922M76T10-0CB	TAPE, FRONT DOOR OUTER ROOF R :BODY COLOR:C9J,ERD,ESL,WBE,LH (BLACK) R :WBF,WBG,WBH,ZHJ,ZQD	1	Rp127.000	BODY COLOR:C9J,ERD,ESL,WBE,WBF,WBG,WBH,ZHJ,ZQD
35	83923M76T10-0CB	TAPE, FRONT DOOR OUTER RR RH R :BODY COLOR:C9J,ERD,ESL,WBE,(BLACK) R :WBF,WBG,WBH,ZHJ,ZQD	1	Rp44.500	BODY COLOR:C9J,ERD,ESL,WBE,WBF,WBG,WBH,ZHJ,ZQD
36	83924M76T10-0CB	TAPE, FRONT DOOR OUTER RR LH R :BODY COLOR:C9J,ERD,ESL,WBE,(BLACK) R :WBF,WBG,WBH,ZHJ,ZQD	1	Rp44.500	BODY COLOR:C9J,ERD,ESL,WBE,WBF,WBG,WBH,ZHJ,ZQD
37	09103M08557-000	BOLT (8X24)	8	Rp8.500
38	71851M70F00-000	NUT	2	Rp4.000
39	83751-67P00-000	BRACKET, DR TRIM	2	Rp11.500
40	03241M0612A-000	SCREW	2	Rp6.500
41	84641M76T00-000	WEATHERSTRIP, FRONT DOOR OPNG RH	1	Rp430.500
42	84651M76T00-000	WEATHERSTRIP, FRONT DOOR OPNG LH	1	Rp430.500	NOTE : RHD:W/TWEETER:N/FRONT DOOR COURTESY LAMP
