Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANEL FRONT BODY PANEL FLOOR PANEL SIDE BODY PANEL ROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPER INSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATOR HEATER UNIT HEATER BLOWER HEATER DOOR EVAPORATOR UNIT HEATER CONTROL CONSOLE BOX FLOOR CARPET INTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAP FUEL LID OPENER ROOF SIDE AIR BAG ROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDING SPLASH GUARD SLIDING ROOF (W/SUNROOF)EMBLEM WINDSHIELD FRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANEL FRONT DOOR REGULATOR REAR DOOR REGULATOR FRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCK MIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT 2ND SEAT BELT FRONT LH SEAT FRONT RH SEAT REAR SEAT PARCEL SHELF FUEL TANK TOOL CONDENSER A/C PIPING COMPRESSOR

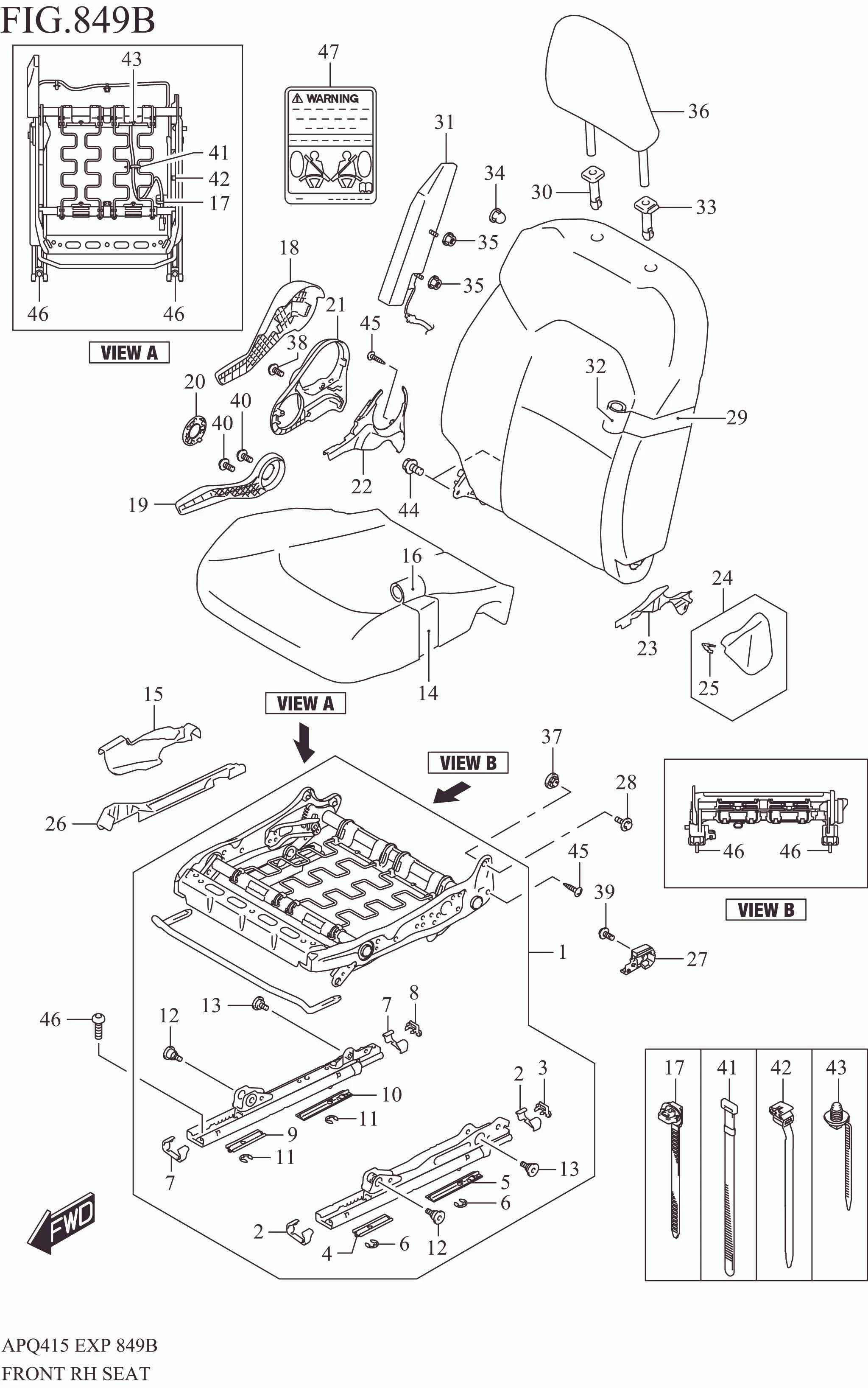

FRONT RH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85103M66T60-000	FRAME ASSY, FR CUSH RH	1	Rp3.631.500
2	86652M74P50-000	.CAP, FR ADJ LWR	2	Rp5.500
3	86653M74P50-000	.CAP, FR ADJ UPR	1	Rp5.500
4	86656M68P00-000	.PROTECTOR, FR ADJUSTER FR	1	Rp15.000
5	86657-68P00-000	.PROTECTOR, FR ADJUSTER RR	1	Rp10.000
6	86658-68P00-000	.RING, FR ADJUSTER RR	2	Rp6.500
7	86652M74P50-000	.CAP, FR ADJ LWR	2	Rp5.500
8	86653M74P50-000	.CAP, FR ADJ UPR	1	Rp5.500
9	86656M68P00-000	.PROTECTOR, FR ADJUSTER FR	1	Rp15.000
10	86657-68P00-000	.PROTECTOR, FR ADJUSTER RR	1	Rp10.000
11	86658-68P00-000	.RING, FR ADJUSTER RR	2	Rp6.500
12	86717-74P60-000	.BOLT, RISER FR	2	Rp91.000
13	86718-74P60-000	.BOLT, RISER RR	2	Rp63.500
14	85160M76T00-000	PAD, FR CUSH	1	Rp2.049.000
15	85226M81R21-000	SUPPORT, FR CUSH PAD LOWER RH	1	Rp182.000
16-1	85180M76TA0-EYD	TRIM, FR CUSH RH R :W/FABRIC SEAT (BLACK/SILVER)	1	Rp831.500	W/FABRIC SEAT
16-2	85180M76TB0-EYF	TRIM, FR CUSH RH R :W/LEATHER SEAT (BLACK/SILVER)	1	Rp3.029.500	W/LEATHER SEAT
17	85191M74L00-000	CLAMP	1	Rp9.000
18	85211M76T00-5PK	KNOB, RCLNG RH (BLACK)	1	Rp110.500
19	85213M62R20-5PK	LEVER, SEAT LIFTER RH (BLACK)	1	Rp66.500
20	85214M68PB0-5PK	CAP, LIFTER LEVER (BLACK)	1	Rp11.500
21	85221M62R20-5PK	COVER, RCLNG OUTSIDE RH (BLACK)	1	Rp23.500
22	85222M68P00-5PK	COVER, FR RCLNG INS LWR RH (BLACK)	1	Rp22.000
23	85222M68P10-5PK	COVER, RCLNG INS LWR RH (BLACK)	1	Rp23.000
24	85241M76T00-5PK	COVER, FR RCLNG INSIDE RH (BLACK)	1	Rp52.000
25	85249M68P00-000	.CLIP	1	Rp9.500
26	85244M68P20-5PK	COVER, RISER OUTSIDE RH (BLACK)	1	Rp33.500
27	85281M76T00-000	COVER, FR HARNESS BRKT RH	1	Rp15.000
28	85295M58J01-000	BOLT, FR BACK FIX	1	Rp9.000
29-1	85305M76TA0-000	BACK ASSY, FR RH R :W/FABRIC SEAT	1	Rp4.599.500	W/FABRIC SEAT
29-2	85305M76TB0-000	BACK ASSY, FR RH R :W/LEATHER SEAT	1	Rp4.610.500	W/LEATHER SEAT
30	85341M76T00-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp54.000
31	85350M76T00-000	MODULE ASSY, SIDE AIR BAG R :SEE NOTE	1	Rp1.949.000	SEE NOTE
32-1	85380M76TA0-EYD	TRIM, FR BACK RH R :W/FABRIC SEAT (BLACK/SILVER)	1	Rp1.644.000	W/FABRIC SEAT
32-2	85380M76TB0-EYF	TRIM, FR BACK RH R :W/LEATHER SEAT (BLACK/SILVER)	1	Rp5.609.500	W/LEATHER SEAT
33	85840M76T00-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp61.000
34	08313-2006A-000	NUT	1	Rp14.000
35	08319-3106A-000	NUT	2	Rp6.500
36-1	86401M76T00-EYE	HEADRESTRAINT ASSY, FR R :W/FABRIC SEAT (BLACK/SILVER)	1	Rp1.411.000	W/FABRIC SEAT
36-2	86401M76T30-EYG	HEADRESTRAINT ASSY, FR R :W/LEATHER SEAT (BLACK/SILVER)	1	Rp2.776.000	W/LEATHER SEAT
37	87286-81P00-000	BUSH, FR BACK FIX	1	Rp37.000
38	09132-04037-000	SCREW (4X10)	1	Rp15.000
39	09132-04037-000	SCREW (4X10)	1	Rp15.000
40	09132M05065-000	SCREW (5X10)	2	Rp5.500
41	09407M14403-000	CLAMP (L:125)	1	Rp5.000
42	09407M14414-000	CLAMP (L:140)	1	Rp6.500
43	09407M17404-000	CLAMP (L:170)	1	Rp8.500
44	01550-1016A-000	BOLT	2	Rp5.500
45	03541-0410A-000	SCREW	2	Rp11.000
46	09119M08118-000	BOLT (8X25)	4	Rp6.500
47	DISCONTINUE SUB: 85354-59JC1-000	LABEL, SIDE AIRBAG	1	-	NOTE : SPECIAL PROCEDURES ARE REQUIRED FOR SERVICING OR REPLACING AN AIR BAG. FOR THAT REASON, ONLY A FACTORY-AUTHORIZED DEAL
