Grand Vitara 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANEL SIDE BODY PANELROOF PANEL (N/SUNROOF)ROOF PANEL (W/SUNROOF)FRONT BUMPER (N/FRONT CAMERA)FRONT BUMPER (W/FRONT CAMERA)REAR BUMPERINSTRUMENT PANEL UPPER (RHD:GL)INSTRUMENT PANEL UPPER (RHD:GLX)INSTRUMENT PANEL LOWER (RHD:N/HEADUP DISPLAY)INSTRUMENT PANEL LOWER (SEE NOTE 1)VENTILATORHEATER UNITHEATER BLOWERHEATER DOOR EVAPORATOR UNIT HEATER CONTROLCONSOLE BOX FLOOR CARPETINTERIOR TRIM (N/LUGGAGE LAMP)INTERIOR TRIM (W/LUGGAGE LAMP)COVER/CAPFUEL LID OPENERROOF SIDE AIR BAGROOF LINING (RHD:N/SUNROOF:GL)ROOF LINING (RHD:W/SUNROOF)MOLDINGSPLASH GUARDSLIDING ROOF (W/SUNROOF)EMBLEMWINDSHIELDFRONT DOOR PANEL (RHD:N/TWEETER)FRONT DOOR PANEL (SEE NOTE)REAR DOOR PANEL (N/TWEETER)REAR DOOR PANEL (W/TWEETER)BACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (N/SIDE CAMERA:GL)MIRROR/SUNVISOR (W/SIDE CAMERA)FRONT SEAT BELT2ND SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLCONDENSER A/C PIPINGCOMPRESSOR

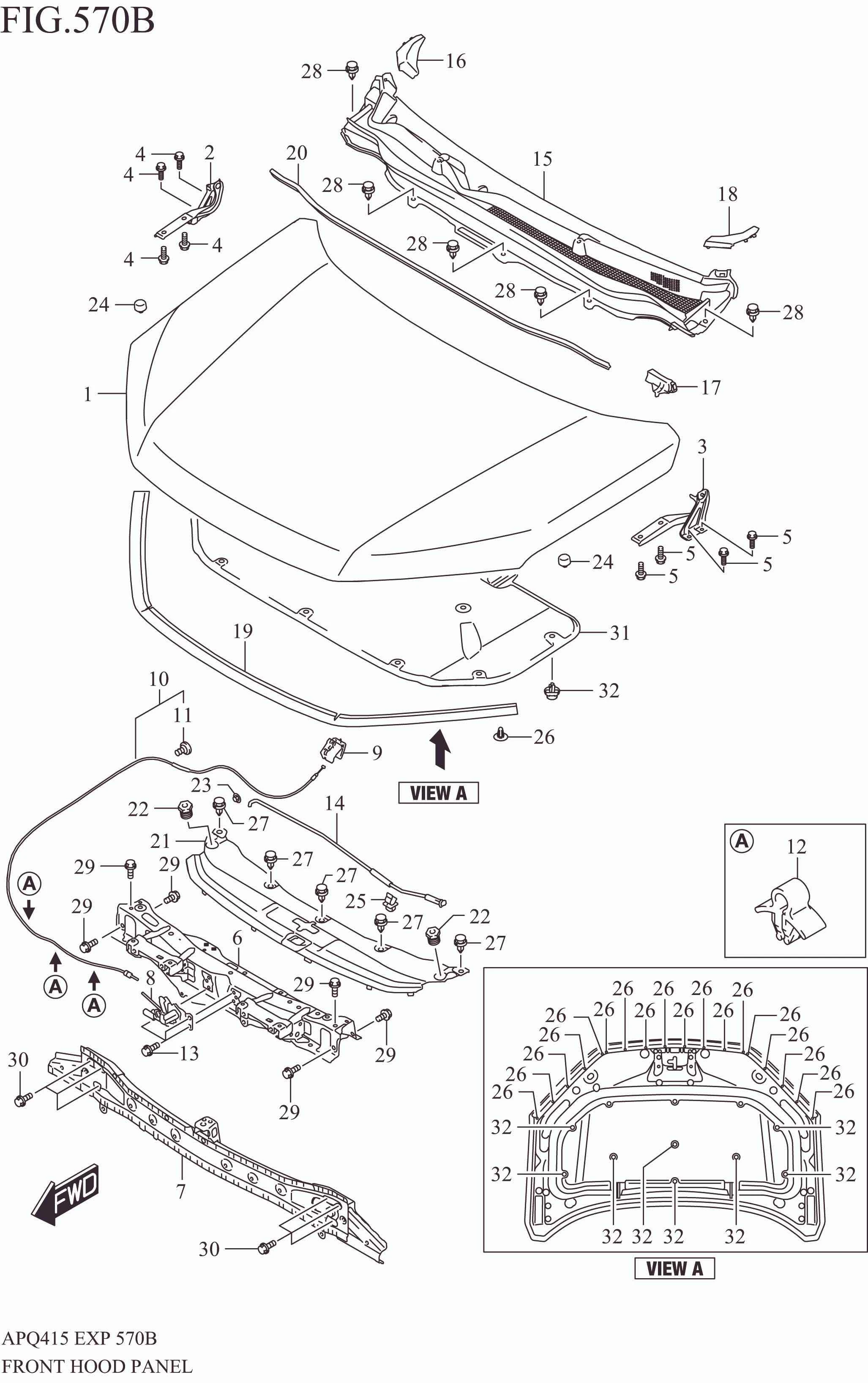

FRONT HOOD PANEL

FRONT HOOD PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 57300M76T00-000 PANEL, FRONT HOOD 1 Rp2.342.000
2 57410M76T00-000 HINGE, FRONT HOOD RH 1 Rp277.500
3 57420M76T00-000 HINGE, FRONT HOOD LH 1 Rp277.500
4 01550-0816A-000 BOLT 4 Rp6.000
5 01550-0816A-000 BOLT 4 Rp6.000
6 58230M76T00-000 MEMBER, HOOD LOCK 1 Rp1.467.500
7 58270M76T01-000
SUB: 58270M76T00-000		 MEMBER, FRONT BUMPER 1 Rp2.028.000
8 82110M76T20-000 LATCH, HOOD 1 Rp421.000
9 82150M55T00-000 LEVER, HOOD LATCH RELEASE 1 Rp32.000
10 82160M76T00-000 CABLE, HOOD LATCH RELEASE 1 Rp101.000
11 82191-50E00-000 .GROMMET, LATCH RELEASE CABLE 1 Rp41.500
12 09403M04405-000 CLAMP 3 Rp3.500
13 02162-0616A-000 SCREW 3 Rp3.000
14 72310M76T00-000 STAY, FRONT HOOD 1 Rp83.500
15 72330M76T01-5PK
SUB: 72330M76T00-5PK		 GARNISH, COWL TOP CTR (BLACK) 1 Rp538.000
16 72332M76T00-5PK GARNISH, COWL TOP SIDE RH (BLACK) 1 Rp12.000
17 72342M64M10-000 COVER, COWL TOP 1 Rp25.000
18 72342M76T00-5PK GARNISH, COWL TOP SIDE LH (BLACK) 1 Rp12.000
19 72361M76T00-000 SEAL, HOOD FRONT CTR 1 Rp82.000
20 72362M61M00-000 SEAL, HOOD REAR 1 Rp66.500
21 72371M76T00-000 COVER, HOOD LOCK MEMBER 1 Rp155.000
22 72372M70F10-000 CUSHION 2 Rp6.000
23 09308-07014-000 GROMMET 1 Rp16.500
24 09321-10023-000 CUSHION (HD:10) 2 Rp6.000
25 09403-07407-000 CLAMP 1 Rp18.000
26 09409M05319-000 CLIP 18 Rp5.500
27 09409M07L01-000 CLIP 5 Rp5.000
28 09409M08006-000 CLIP 5 Rp5.000
29 01551-0816C-000 BOLT 6 Rp13.500
30 01551-0816C-000 BOLT 6 Rp13.500
31 72440M76T00-000 SILENCER, FRONT HOOD 1 Rp263.000
32 09409M07L01-000 CLIP 11 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
