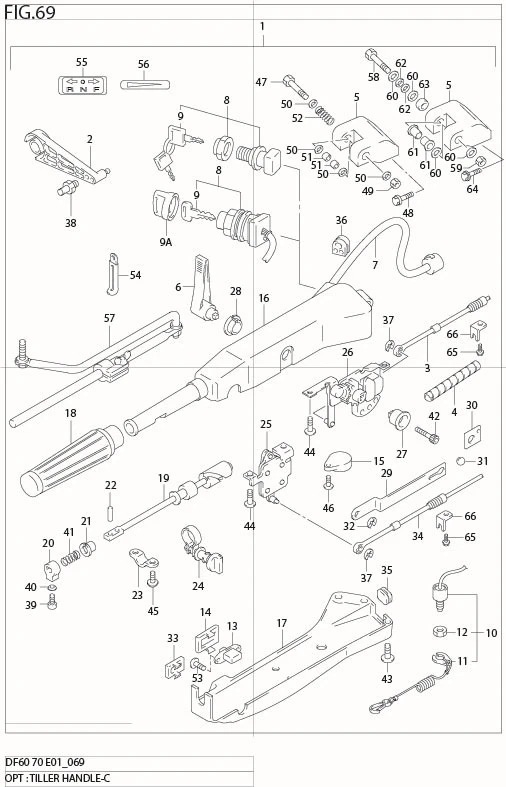

FIG 69 OPT:TILLER HANDLE

FIG 69 OPT:TILLER HANDLE
No No. Part Description Qty Price Per Pcs Remarks
1-2 63002-99E21-0EP TILLER HANDLE KIT (BLACK) 1 - MODEL:05%
1-1 63002-99E08-0EP
SUB: 63002-99E06-0EP		 TILLER HANDLE KIT (BLACK) 1 Rp6.549.000
1-3 63002-99E23-0EP TILLER HANDLE KIT (BLACK) 1 - MODEL:07%
2 19122-99E01-000 ?LEVER, THROTTLE 1 Rp97.500
3 23230-99E00-000 ?CABLE, SHIFT 1 Rp1.007.000
4 33833-91J00-000 ?TUBE 1 Rp47.500 L:250!100
5-1 43761-87J01-0EP ?BRACKET, TILLER HANDLE 1 Rp1.375.500
5-2 43761-87J11-0EP ?BRACKET, TILLER HANDLE 1 Rp692.500 FOR 63002-99E23-0EP
6 21111-87J10-0EP ?LEVER, SHIFT (BLACK) 1 Rp858.000
7-1 36620-87J00-000 ?WIRE, HANDLE 1 Rp874.000
7-2 36620-87J20-000 ?WIRE, HANDLE 1 Rp829.000 MODEL:05%09
8-1 37110-87J01-000 ?SWITCH, IGNITION 1 - ?37110-87J00
8-2 37110-87J21-000
SUB: 37110-87J20-000		 ?SWITCH, IGNITION 1 Rp561.000 MODEL:04%09
9-13 DISCONTINUE
SUB: 37141-99E20-000		 ??KEY (933) 1 - MODEL:04%09
9-14 DISCONTINUE
SUB: 37141-99E30-000		 ??KEY (934) 1 - MODEL:04%09
9-15 DISCONTINUE
SUB: 37141-99E40-000		 ??KEY (935) 1 - MODEL:04%09
9-16 DISCONTINUE
SUB: 37141-99E50-000		 ??KEY (936) 1 - MODEL:04%09
9-17 DISCONTINUE
SUB: 37141-99E60-000		 ??KEY (937) 1 - MODEL:04%09
9-18 DISCONTINUE
SUB: 37141-99E70-000		 ??KEY (938) 1 - MODEL:04%09
9-19 DISCONTINUE
SUB: 37141-99E80-000		 ??KEY (939) 1 - MODEL:04%09
9-20 DISCONTINUE
SUB: 37141-99E90-000		 ??KEY (940) 1 - MODEL:04%09
9-21 DISCONTINUE
SUB: 37141-99EA0-000		 ??KEY (941) 1 - MODEL:04%09
9-22 DISCONTINUE
SUB: 37141-99EB0-000		 ??KEY (942) 1 - MODEL:04%09
9A 37143-99E00-000 ??CAP, KEY 1 Rp26.000 MODEL:04%09
9-11 DISCONTINUE
SUB: 37141-99E00-000		 ??KEY (931) 1 - MODEL:04%09
9-10 37141-92E90-000 ??KEY (20) 1 Rp147.000
9-9 37141-92E80-000 ??KEY (19) 1 Rp147.000
9-8 37141-92E70-000 ??KEY (18) 1 Rp147.000
9-7 37141-92E60-000 ??KEY (17) 1 Rp147.000
9-6 37141-92E50-000 ??KEY (16) 1 Rp77.500
9-5 37141-92E40-000 ??KEY (15) 1 Rp147.000
9-4 37141-92E30-000 ??KEY (14) 1 Rp147.000
9-3 37141-92E20-000 ??KEY (13) 1 Rp147.000
9-2 37141-92E10-000 ??KEY (12) 1 Rp147.000
9-1 37141-92E00-000 ??KEY (11) 1 Rp147.000
9-12 DISCONTINUE
SUB: 37141-99E10-000		 ??KEY (932) 1 - MODEL:04%09
10 37820-87J04-000
SUB: 37820-87J00-000		 ?SWITCH, EMERGENCY 1 Rp567.000
11 37823-92E02-000
SUB: 37823-92E01-000		 ??PLATE, LOCK 1 Rp221.500
12 37826-92E00-000 ??NUT 1 Rp65.500
13 DISCONTINUE
SUB: 37860-94610-000		 ?SWITCH, TRIM 1 -
14 DISCONTINUE
SUB: 37869-95590-000		 ?CAP, TRIM SWITCH 1 -
15 DISCONTINUE
SUB: 38500-92X50-000		 ?BUZZER 1 -
16-1 63111-87J03-0EP ?HOUSING, TILLER HANDLE 1 - !63111-87J10-0EP
16-2 63111-87J10-0EP ?HOUSING, TILLER HANDLE 1 Rp1.312.500 FOR 63002-99E23-0EP
17 63120-87J00-000
SUB: 63121-87J02-000		 ?COVER, UNDER 1 Rp260.500
18 63210-93E30-000 ?GRIP 1 Rp293.000
19 63221-87J00-000 ?SHAFT, THROTTLE 1 Rp545.000
20 63223-92D00-000 ?STOPPER, HANDLE ROD 1 Rp37.500
21 63225-93200-000 ?BUSH, HANDLE ROD 1 Rp37.000
22 63227-93200-000 ?PIN, HANDLE ROD 1 Rp21.000
23 63235-87J00-000 ?PLATE, THROTTLE SHAFT 1 Rp28.500
24 63240-87J00-000 ?ADJUSTER, THROTTLE GRIP 1 Rp111.000
25 63250-87J01-000 ?ARM, THROTTLE 1 Rp1.628.500
26 63260-87J02-000 ?GEAR, SHIFT 1 Rp1.863.500
27 63261-87J00-000 ?BUSH, SHIFT GEAR 1 Rp97.000
28 63262-87J00-000 ?BUSH, SHIFT LEVER 1 Rp31.500
29 63271-87J00-000 ?PLATE, LOCK 1 Rp136.000 ?63271-87J10
30 63272-87J00-000 ?PLATE, BALL GUIDE 1 Rp85.000
31 63273-87J00-000 ?BALL 1 Rp44.000
32 63274-87J00-000 ?E RING 1 Rp20.000
33 67263-99E00-000 ?COVER, TRIM SWITCH 1 Rp54.500
34 63610-99E00-000 ?CABLE, THROTTLE 1 Rp695.500
35 63625-99E00-000 ?GROMMET, THROTTLE CABLE 1 Rp45.000
36 63626-99E01-000 ?GROMMET, HANDLE WIRE 1 Rp61.000
37 67292-87J00-000 ?E RING 2 Rp20.500
38 67473-89J00-000 ?PIN, REMOCON CONNECTOR 1 Rp66.500
39 09126-06015-000 ?SCREW 1 Rp19.000
40 09163-06001-000 ?WASHER 1 Rp11.000
41 09440-12027-000 ?SPRING 1 Rp13.000
42 09106-08099-000 ?BOLT (8X50) 1 Rp25.500
43 DISCONTINUE
SUB: 09125-05047-000		 ?SCREW (5X14) 6 -
44 09125-06069-000 ?SCREW (6X12) 4 Rp18.000
45 09136-05008-000 ?SCREW (5X12) 2 Rp23.500
46 02142-05207-000 ?SCREW 1 Rp9.000
47 09100-10264-000 ?BOLT (10X80) 1 Rp92.000 FOR 63002-99E06-0EP
48-1 09117-10034-000 ?BOLT (10X45) 2 -
48-2 09117-10058-000 ?BOLT (10X45) 2 Rp31.000 MODEL:05%
49 09159-10050-000 ?NUT 1 Rp23.500 FOR 63002-99E06-0EP
50 09160-10097-000 ?WASHER 5 Rp21.500 FOR 63002-99E06-0EP
51 DISCONTINUE
SUB: 09306-10009-000		 ?BUSH 3 - FOR 63002-99E06-0EP
52 DISCONTINUE
SUB: 09440-22008-000		 ?SPRING 1 - FOR 63002-99E06-0EP
53 DISCONTINUE
SUB: 09139-02003-000		 ?SCREW (2X6) 2 -
54 DISCONTINUE
SUB: 29404-93J30-000		 ?CLAMP 1 - ?09404-10205
55 21131-96010-000 ?MARK, CLUTCH SHIFT 1 Rp12.000
56 63215-93110-000 ?MARK, HANDLE GRIP 1 Rp24.500
57 43770-99E03-000
SUB: 43770-99E00-000		 ?ADJUSTER, STEERING 1 Rp3.821.000
58 09100-10264-000 ?BOLT TILLER HANDLE PIVOT 1 Rp92.000 FOR 63002-99E23-0EP
59 09159-10050-000 ?NUT, TILLER HANDLE PIVOT 1 Rp23.500 FOR 63002-99E23-0EP
60 09160-10114-000 ?WASHER, TILLER HANDLE PIVOT 4 Rp20.000 FOR 63002-99E23-0EP
61 09306-10020-000 ?BUSH, TILLER HANDLE PIVOT 2 Rp23.000 FOR 63002-99E23-0EP
62 09164-10016-000 ?WASHER, TILLER HANDLE SPR 2 Rp39.000 FOR 63002-99E23-0EP
63 43768-90J01-000 ?SPACER, TILLER HANDLE 1 Rp305.500 FOR 63002-99E23-0EP
64 09117-10058-000 ?BOLT, TILLER HANDLE BRACKET 2 Rp31.000 FOR 63002-99E23-0EP
65 63611-87J00-000 ?BOLT, CLAMP BRACKET 2 Rp71.000 FOR 63002-99E23-0EP
66 63612-87J00-000 ?BRACKET, CLAMP 2 Rp184.500 FOR 63002-99E23-0EP
