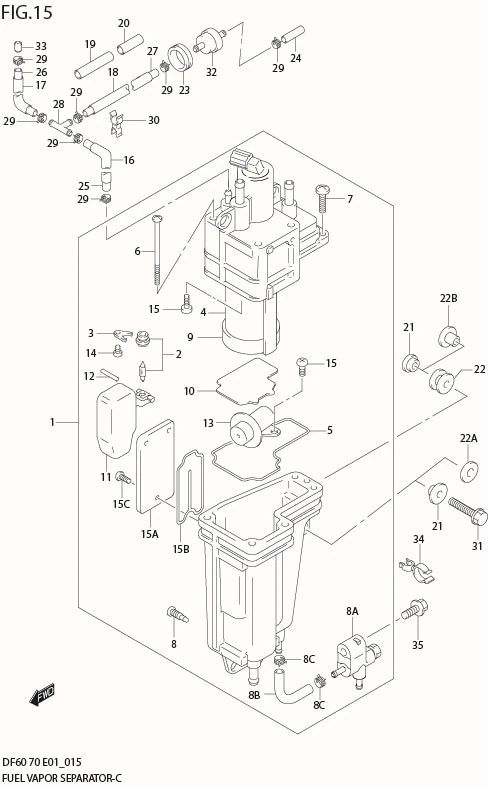

FIG 15 FUEL VAPOR SEPARATOR (MODEL:01%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	15600-99E22-000	SEPARATOR, FUEL VAPOR	1	-	DF60:510774%
1-1	15600-99EV0-000 SUB: 15600-99E21-000	SEPARATOR, FUEL VAPOR	1	Rp5.324.500
1-4	15600-99E32-000 SUB: 15600-99E31-000	SEPARATOR, FUEL VAPOR	1	Rp5.296.000	DF70WT,70WTH
1-3	15600-99EV1-000 SUB: 15600-99E30-000	SEPARATOR, FUEL VAPOR	1	Rp4.869.000	DF70WT,70WTH
2-1	13370-99E00-000	?VALVE, NEEDLE	1	Rp534.000
2-2	13370-99E10-000	?VALVE, NEEDLE	1	Rp534.000	DF70WT,70WTH
3-1	DISCONTINUE SUB: 13373-39110-000	?PLATE	1	-
3-2	DISCONTINUE SUB: 13373-99E10-000	?PLATE	1	-	DF70WT,70WTH
4-1	15200-87J10-000	?PUMP	1	Rp4.564.500
4-2	15200-87J20-000	?PUMP	1	Rp4.564.500	DF70WT,70WTH
5-1	15626-99E00-000	?O RING	1	Rp144.000
5-2	15626-99E10-000	?O RING	1	Rp203.500	DF70WT,70WTH
6	15627-99E00-000	?SCREW (L:70)	3	Rp60.000
7	15628-99E00-000	?SCREW (L:15)	2	Rp20.500
8B	15683-99E00-000	?HOSE, DRAIN	1	Rp13.500	DF60:510774%
8C	15685-99E00-000	?CLIP	2	Rp22.000	DF60:510774%
8A	15648-99E00-000	?BODY, DRAIN	1	Rp272.500	DF60:510774%
8	15629-99E10-000	?SCREW, DRAIN	1	Rp45.500	DF60:%510773
9-1	DISCONTINUE SUB: 15641-99E00-000	?FILTER, FUEL PUMP	1	-
9-2	15641-99E10-000	?FILTER, FUEL PUMP	1	Rp205.000	DF70WT,70WTH
10-1	15642-99E10-000	?PLATE	1	Rp93.500
10-2	15642-99E20-000	?PLATE	1	Rp52.000	DF70WT,70WTH
11	15650-99E00-000	?FLOAT	1	Rp505.000
12	15654-99E00-000	?PIN	1	Rp20.500
13	15760-87J00-000	?REGULATOR	1	Rp2.443.000
14-1	02112-04083-000 SUB: 02112-0408A-000	?SCREW	1	Rp7.500
14-2	DISCONTINUE SUB: 13614B89J00N000	?SCREW	1	-	DF70WT,70WTH
15C	15614-99E00-000	?SCREW	3	Rp13.000
15B	15613-99E00-000	?O RING	1	Rp53.000
15A	15612-99E01-000 SUB: 15612-99E00-000	?COVER, SEPARATOR	1	Rp143.000
15-1	DISCONTINUE SUB: 02112B0510AN000	?SCREW	2	-
15-2	DISCONTINUE SUB: 15631-99E10-000	?SCREW	2	-	DF70WT,70WTH
16	DISCONTINUE SUB: 18498-87JC0-000	PROTECTOR (L:450)	1	-	L:450!80
17	DISCONTINUE SUB: 18498-87JC0-000	PROTECTOR (L:450)	1	-	L:450!280
18	18498-99EC1-000 SUB: 18498-99EC0-000	PROTECTOR (L:760)	1	Rp60.500	DF60:%151413
19	DISCONTINUE SUB: 18498-87JC0-000	PROTECTOR (L:450)	1	-	DF60:151414%MODEL:09
20	DISCONTINUE SUB: 18498-87JC0-000	PROTECTOR (L:450)	1	-	DF60:151414%MODEL:09
21-1	DISCONTINUE SUB: 09169-06067-000	WASHER	6	-
21-2	DISCONTINUE SUB: 09169-06067-000	WASHER	8	-	MODEL:02%
22-1	09320-09059-000 SUB: 09320-09039-000	CUSHION	3	Rp26.000
22-2	09320-09059-000 SUB: 09320-09039-000	CUSHION	4	Rp26.000	MODEL:02%09
22A	09160-06006-000 SUB: 09160-06084-000	WASHER (PLANE)	4	Rp11.000	DF60:510136%MODEL:05
22B	09169-06075-000	WASHER	4	Rp19.500	DF60:510136%
23	09320-20008-000	CUSHION	1	Rp26.500
24	09352-50823-600	HOSE	1	Rp7.000	L:600!90
25	09352-50823-600	HOSE	1	Rp7.000	L:600!140
26	09352-50823-600	HOSE	1	Rp7.000	L:600!330
27	09352-50005-00B SUB: 09352-50823-00B	HOSE	1	Rp122.000	L:2000!810
28	09367-06002-000	3 WAY	1	Rp21.000
29	09401-08412-000 SUB: 17813-90J00-000	CLIP	7	Rp20.000	?09401-08409
30	09408-00126-000	CLAMP	1	Rp15.500
31-1	01550-06257-000 SUB: 01550B06257N000	BOLT	3	Rp3.500
31-2	01550-06257-000 SUB: 01550B06257N000	BOLT	4	Rp3.500	MODEL:02%05
31-3	DISCONTINUE SUB: 09116-06202-000	BOLT (W/WASHER)	4	-	MODEL:06%09
32	15410-98500-000	FILTER	1	Rp100.500
33-1	15661-99E00-000	JET, EVAP HOSE	1	Rp61.000	OPT
33-2	DISCONTINUE SUB: 09493-20020-000	JET, EVAP HOSE (ID:1.0,OD:4.0)	1	-	OPT
34	DISCONTINUE SUB: 09408-00070-000	CLAMP	1	-	DF60:510774%
35	01550-06167-000	BOLT	1	Rp16.500	DF60:510774%
