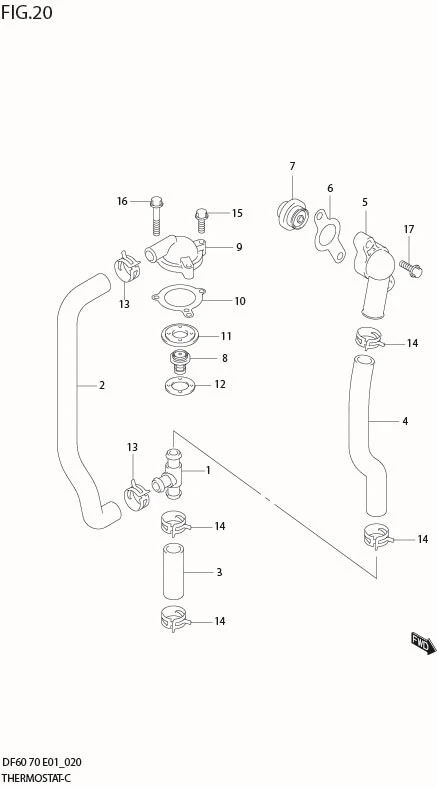

FIG 20 THERMOSTAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11195-99E00-000	3 WAY	1	Rp59.000
2	11196-99E00-000	HOSE, WATER RETURN 1	1	Rp233.500
3	11197-99E00-000	HOSE, WATER RETURN 2	1	Rp104.500
4	11198-99E00-000	HOSE, WATER RETURN 3	1	Rp151.500
5-1	17611-99E00-000 SUB: 17611-99E00-019	COVER, PRESSURE VALVE (BLACK)	1	Rp1.116.500
5-2	17611-99E00-000	COVER, PRESSURE VALVE	1	Rp1.116.500	MODEL:04%09
6	17616-99E01-000	GASKET, PRESSURE VALVE COVER	1	Rp42.000	?17616-99E00
7	17660-99E01-000	VALVE, WATER PRESSURE	1	Rp142.500	?17660-99E00
8-4	17670-87J01-000 SUB: 17670-87J00-000	THERMOSTAT (72áC)	1	Rp432.500	OPT MODEL:00%09
8-3	17670-94404-000 SUB: 17670-94402-000	THERMOSTAT (60áC)	1	Rp520.000	OPT MODEL:98,99
8-2	17670-94404-000 SUB: 17670-94402-000	THERMOSTAT (60áC)	1	Rp520.000	MODEL:00%09
8-1	17670-93964-000 SUB: 17670-93962-000	THERMOSTAT (50áC)	1	Rp508.000	MODEL:98,99
9-1	17681-99E01-019	COVER, THERMOSTAT (BLACK)	1	Rp205.000
9-2	17681-99E01-000	COVER, THERMOSTAT	1	Rp1.145.000	MODEL:04%09
10	17685-99E00-000	GASKET, THERMOSTAT COVER	1	Rp45.500
11	17686-99E01-000	STOPPER, THERMOSTAT UPPER	1	Rp73.500
12	17687-99E01-000	STOPPER, THERMOSTAT LOWER	1	Rp66.500
13	09401-25406-000 SUB: 17833-90J00-000	CLIP	2	Rp35.000	?09401-25404
14	09401-26408-000 SUB: 17834-90J00-000	CLIP	4	Rp27.000	?09401-26406
15	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500
16	01550-06457-000	BOLT	1	Rp18.000
17	01550-08307-000	BOLT	2	Rp24.000
