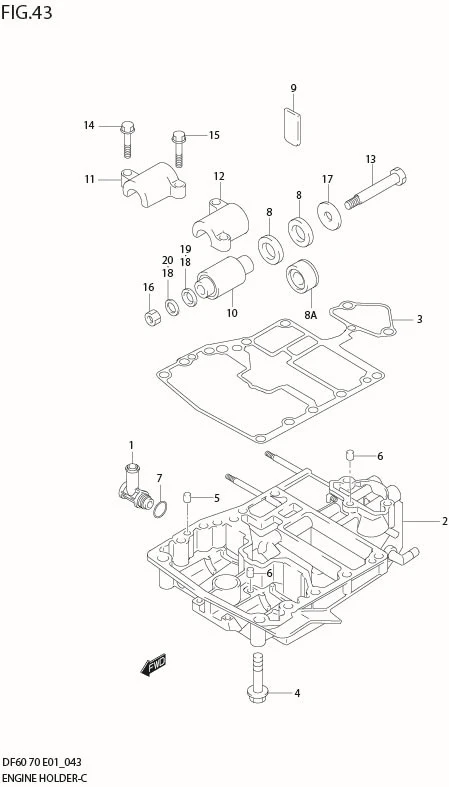

FIG 43 ENGINE HOLDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 17573-89J02-000	PIPE, WATER RETURN HOSE	1	-	MODEL:07%09
1-1	DISCONTINUE SUB: 17573-89J01-000	PIPE, WATER RETURN HOSE	1	-	?17573-99E00
2	51110-99802-0EP	HOLDER SET, ENGINE (BLACK)	1	Rp6.515.000	?51110-99E00-0EP
3	51211-99E00-000	GASKET, ENGINE HOLDER	1	Rp483.500
4	DISCONTINUE SUB: 09117-10039-000	BOLT (10X80)	2	-
5	09206-08001-000 SUB: 09206B08001N000	PIN, KNOCK	2	Rp5.500
6	04211-09149-000 SUB: 04211B09149N000	PIN, KNOCK	2	Rp3.000
7	DISCONTINUE SUB: 09280-20006-000	O RING (D:1.9,ID:19.8)	1	-
8	54121-87E00-000	STOPPER, UPPER THRUST	4	Rp39.500	MODEL:98%00
8A	54120-99E01-000	STOPPER, UPPER THRUST	2	Rp128.000	MODEL:01%09
9	54125-99E00-000	MOUNT, UPPER THRUST	2	Rp29.000
10-1	54130-87E31-000	MOUNT, UPPER	2	Rp683.000	TYPE:L
10-2	54130-87E01-000	MOUNT, UPPER	2	Rp683.000	TYPE:X
11	54148-99E01-0EP	COVER, UPPER MOUNT STBD	1	Rp1.052.500
12	54149-99E01-0EP	COVER, UPPER MOUNT PORT	1	Rp803.000
13-1	09100-12045-000	BOLT (12X115)	2	-	MODEL:98
13-2	54112-99E01-000	BOLT (12X117)	2	Rp287.000	MODEL:99%09
14-1	09116-08123-000	BOLT (8X40)	2	-	?09116-08098
14-2	09116-08128-000	BOLT (8X40)	2	Rp124.500	MODEL:05%09
15	09116-08122-000	BOLT (8X30)	2	Rp29.000	?09116-08099
16-1	09140-12043-000	NUT	2	Rp22.500	MODEL:98
16-2	09159-12014-000	NUT	2	Rp37.000	MODEL:99%09
17	DISCONTINUE SUB: 09160-12065-000	WASHER (12.2X40X3)	2	-	MODEL:98%00
18	09160-12066-000	WASHER (12.5X22X2.5)	4	Rp13.500	DF60%510197
19	54113-90J00-000	WASHER, UPPER MOUNT BOLT	2	Rp74.000	DF60:510198%
20	09160-12110-000	WASHER (12.5X22X3.0)	2	Rp55.000	DF60:510198%
