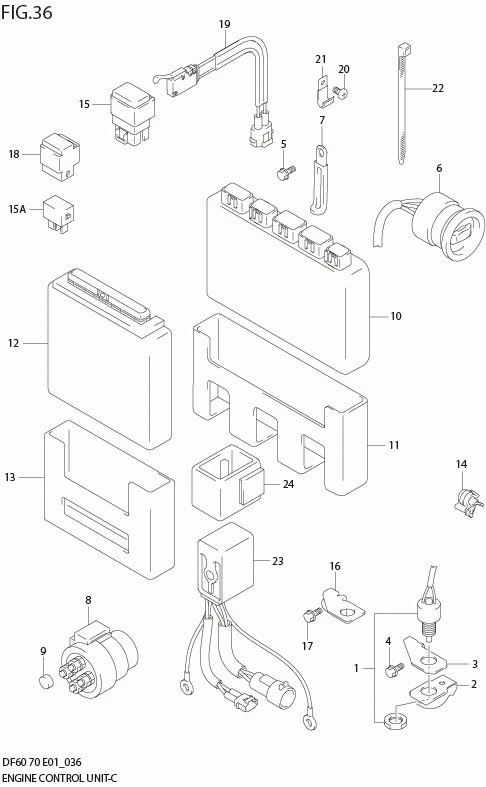

FIG 36 ENGINE CONTROL UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	37721-99E12-000 SUB: 37721-99E11-000	SWITCH ASSY, NEUTRAL	1	Rp472.000	MODEL:03%09
1-1	DISCONTINUE SUB: 37721-99E00-000	SWITCH, NEUTRAL	1	-	MODEL:98%02
2	DISCONTINUE SUB: 37725-95600-000	PLATE, NEUTRAL SWITCH	1	-
3	37726-94402-000	BRACKET, NEUTRAL SWITCH	1	Rp37.500	%MODEL:01
4	01550-06167-000	BOLT	1	Rp16.500
5	DISCONTINUE SUB: 01550-06107-000	BOLT	1	-
6	37850-99E05-000 SUB: 37850-99E03-000	SWITCH, PTT	1	Rp736.000
7	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	?09404-06432
8	38410-94552-000	RELAY, PTT	2	Rp1.456.500	MODEL:98%05
9	09251-09002-000	CAP	2	Rp22.000	MODEL:98%05
10-3	33920-99EA0-000	MODULE, ENGINE CONTROL (ECM)	1	Rp11.816.500	DF70
10-4	33920-99E14-000	MODULE, ENGINE CONTROL (ECM)	1	Rp11.674.500	DF70:861713%MODEL:00
10-2	33920-99E05-000	MODULE, ENGINE CONTROL (ECM)	1	Rp16.757.000	DF60:861477%MODEL:00
10-1	33920-99E91-000	MODULE, ENGINE CONTROL	1	Rp10.791.500	DF60
11	33925-99E00-000	CUSHION, ECM	1	Rp100.500	%MODEL:00
12-14	33920-99E84-000	MODULE, ENGINE CONTROL	1	Rp19.795.000	DF70WT,70WTH
12-13	33920-99E83-000	MODULE, ENGINE CONTROL	1	-	DF70WT,70WTH
12-12	33920-99E82-000	MODULE, ENGINE CONTROL	1	-	DF70WT,70WTH
12-11	33920-99E81-000	MODULE, ENGINE CONTROL	1	-	DF70WT,70WTH
12-10	33920-99E64-000	MODULE, ENGINE CONTROL	1	Rp21.799.500	DF70 MODEL:08
12-9	33920-99E63-000	MODULE, ENGINE CONTROL	1	-	DF70 MODEL:07
12-8	33920-99E62-000	MODULE, ENGINE CONTROL	1	-	DF70 MODEL:06
12-6	33920-99E84-000 SUB: 33920-99E30-000	MODULE, ENGINE CONTROL	1	Rp19.795.000	DF70 MODEL:01,02
12-5	33920-99E54-000	MODULE, ENGINE CONTROL	1	Rp19.795.000	DF60 MODEL:08%09
12-4	33920-99E53-000	MODULE, ENGINE CONTROL	1	-	DF60 MODEL:07
12-3	33920-99E52-000	MODULE, ENGINE CONTROL	1	-	DF60 MODEL:06
12-2	33920-99E51-000	MODULE, ENGINE CONTROL	1	-	DF60 MODEL:03%05
12-1	33920-99E20-000	MODULE, ENGINE CONTROL	1	-	DF60 MODEL:01,02
12-7	33920-99E61-000	MODULE, ENGINE CONTROL	1	-	DF70 MODEL:03%05
13	33925-87J00-000	CUSHION	1	Rp267.500	MODEL:01%09
14	09403-07308-000	CLAMP	1	Rp10.000
15	DISCONTINUE SUB: 38910-92E00-000	RELAY, ECM MAIN	1	-
15A	38860-76F01-000 SUB: 38860B76F01N000	RELAY, ECM MAIN	1	Rp47.000	MODEL:03%09
16	37726-99E10-000	BRACKET, NEUTRAL SW	1	Rp55.500	MODEL:02%09
17	01550-06167-000	BOLT	2	Rp16.500	MODEL:02%09
18	38915-90J00-000	HOLDER, RELAY	1	Rp33.000	MODEL:03%09
19-1	37722-93J00-000	SWITCH ASSY, TILT LIMIT	1	-	MODEL:04%05
19-2	37722-93J14-000 SUB: 37722-93J11-000	SWITCH ASSY, TILT LIMIT	1	Rp371.500	MODEL:06%09
20	09103-06265-000 SUB: 09103-06152-000	SCREW, TILT LIMIT LEAD CLAMP	1	Rp21.500	MODEL:04%05
21	09403-09316-000	CLAMP, TILT LIMIT LEAD	1	Rp9.000	MODEL:04%05
22-1	09407-14407-000	CLAMP, TILT LIMIT LEAD	1	Rp18.500	MODEL:04%05
22-2	09407-14407-000	CLAMP, TILT LIMIT LEAD	2	Rp18.500	MODEL:06%09
23	38410-93J12-000 SUB: 38410-93J10-000	RELAY, PTT	1	Rp1.174.500	MODEL:06%09
24	38415-93J00-000	HOLDER, PTT RELAY	1	Rp52.000	MODEL:06%09
