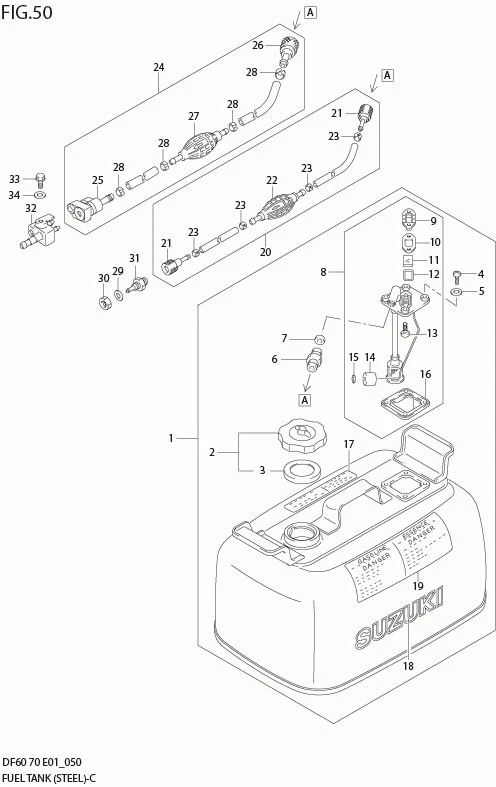

FIG 50 FUEL TANK (STEEL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65800-92824-000	TANK SET, FUEL (24L)	1	-	6.3 U.S GAL/5.3 IMP GAL
2	DISCONTINUE SUB: 65510-92D00-000	?CAP ASSY, SEPARATE TANK	1	-
3	65561-92D00-000	??GASKET, TANK CAP	1	Rp44.000
4	02142-0616A-000 SUB: 02142B06167N000	?SCREW	4	Rp3.000
5	09168-06026-000	?WASHER	4	Rp20.000
6	DISCONTINUE SUB: 65740-95500-000	?CONNECTOR, FUEL	1	-
7	09168-12015-XC0 SUB: 09168-12015-000	?GASKET, CONNECTOR	1	Rp30.000
8	DISCONTINUE SUB: 65850-92D01-000	?GAUGE ASSY, FUEL	1	-
9	65855-92D10-000	??COVER, GAUGE	1	Rp21.000
10	65854-92D20-000	??GASKET	1	Rp17.000
11	65853-92D00-000	??LENS	1	Rp16.500
12	65854-92D30-000	??GASKET, LENS	1	Rp17.000
13	DISCONTINUE SUB: 03222-04083-000	??SCREW	2	-
14	65864-92D00-000	??FLOAT	1	Rp35.500
15	DISCONTINUE SUB: 65866-92D00-000	??NUT, PUSH	1	-
16	65871-92D00-000	??GASKET, FUEL	1	Rp29.500
17	65317-95260-000	?MARK, FUEL CAPACITY (24L)	1	Rp31.500
18	DISCONTINUE SUB: 61441-98500-000	?MARK, ORNAMENT	1	-
19	65316-93331-000	?MARK, FUEL CAUTION	1	Rp44.000
20	65700-955A0-000 SUB: 65700-95516-000	HOSE, FUEL (L:2550)	1	Rp1.722.500
21	65750-95501-000 SUB: 65750-95500-000	?CONNECTOR, FUEL	2	Rp374.000
22	DISCONTINUE SUB: 65770-95504-000	?PUMP, SQUEEZE	1	-
23	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-
24	65700-87J16-000 SUB: 65700-87J10-000	HOSE, FUEL	1	Rp1.189.000	MODEL:01
25	65750-87J11-000 SUB: 65750-87J10-000	?SOCKET, FUEL HOSE	1	Rp250.500	MODEL:01
26	65750-95501-000 SUB: 65750-95500-000	?SOCKET, FUEL HOSE	1	Rp374.000	MODEL:01
27	DISCONTINUE SUB: 65770-95504-000	?PUMP, SQUEEZE	1	-	MODEL:01
28	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-	MODEL:01
29	DISCONTINUE SUB: 08322-01127-000	WASHER	1	-	%MODEL:00
30	DISCONTINUE SUB: 09140-12038-000	NUT	1	-	%MODEL:00
31	65720-95512-000 SUB: 65720-95511-000	PLUG, FUEL CONNECTOR	1	Rp441.500	%MODEL:00
32	DISCONTINUE SUB: 65720-986B0-000	PLUG, FUEL CONNECTOR	1	-	MODEL:01,02
33	09103-06237-000	BOLT (6X12.5)	1	Rp21.500	MODEL:01,02
34	09160-06085-000	WASHER	1	Rp9.500	MODEL:01,02
