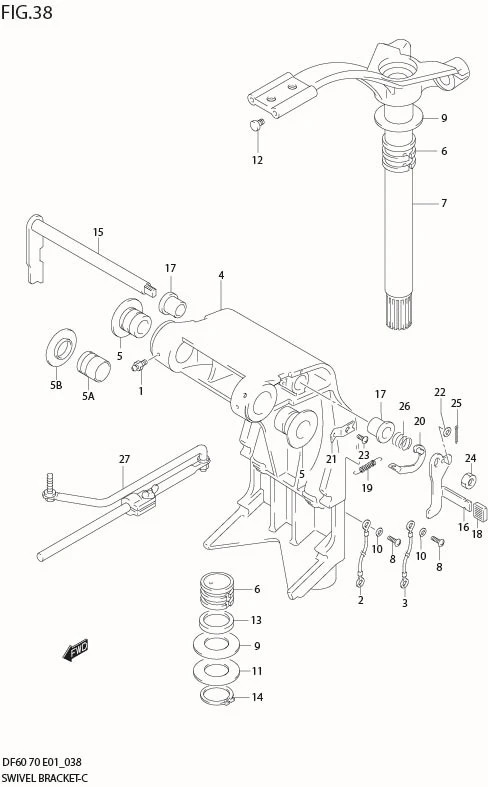

FIG 38 SWIVEL BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	22511-99011-000 SUB: 22511-99010-000	NIPPLE, GREASE	4	Rp39.500	MODEL:06%
1-1	22511-99011-000 SUB: 22511-99010-000	NIPPLE, GREASE	5	Rp39.500
1-3	22511-99011-000 SUB: 22511-99010-000	NIPPLE, GREASE	5	Rp39.500	DF60:680285%
2	36894-95201-000	LEAD (CLAMP TO SWIVEL)	1	Rp110.500
3-1	36895-87D10-000	LEAD (SWIVEL TO HOUSING)	1	Rp121.500
3-2	36895-87D01-000	LEAD (SWIVEL TO MOUNT BRACKET)	1	Rp116.000	DF60:510599%
4-1	43111-99E00-0EP	BRACKET, SWIVEL (BLACK)	1	-	DF60:%151224
4-2	43111-99E31-0EP	BRACKET, SWIVEL (BLACK)	1	Rp4.758.500	DF60:151225%MODEL:03
4-3	43111-99E40-0EP	BRACKET, SWIVEL (BLACK)	1	Rp5.246.500	MODEL:04%05
4-4	43111-90J20-0EP	BRACKET, SWIVEL (BLACK)	1	Rp8.900.500	MODEL:06%
4-5	43111-90J21-0EP	BRACKET, SWIVEL (BLACK)	1	Rp4.758.500	DF60:680285%
5	43211-95510-000	BUSH	2	Rp46.000
5B	09169-28003-000	WASHER	2	Rp34.000	MODEL:01%09
5A-2	43211-93J11-000 SUB: 43211-93J00-000	BUSH, CLAMP SHAFT SWIVEL	1	Rp75.000	MODEL:06%09
5A-1	43211-87D00-000	BUSH	2	Rp80.500	MODEL:01%05
6	43711-97E11-000 SUB: 43711-97E00-000	BUSH, STEERING	2	Rp106.500
7-1	43750-99E01-0EP	BRACKET, STEERING (BLACK)	1	Rp31.000	!43750-99E02-0EP
7-2	43750-99E02-0EP	BRACKET, STEERING (BLACK)	1	-	DF60:421399%
8	09125-05050-000 SUB: 29125-93J10-000	SCREW (5X8)	3	Rp14.000	?09125-05050
9	09160-39001-000	WASHER (39.5X64X1.0)	2	Rp23.000
10	DISCONTINUE SUB: 09161-05114-000	WASHER (5.2X11X1.0)	3	-	%MODEL:00
11	09181-39001-000	SHIM (T:0.3)	4	Rp31.500
12	09250-09008-000 SUB: 09250-09001-000	PLUG	2	Rp13.500
13	09282-39001-000	SEAL, OIL	1	Rp53.000
14	09380-38003-000	CIRCLIP	1	Rp50.500
15	41220-95E13-000 SUB: 41220-95E12-000	LEVER, TILT LOCK	1	Rp964.500	?41220-95E11
16	41221-95E40-000	LEVER, TILT LOCK PORT	1	Rp272.500
17	41224-95E01-000	BUSH, TILT STOPPER ROD	2	Rp41.500
18	41225-94400-000	RUBBER, TILT LOCK LEVER	1	Rp30.000
19-1	DISCONTINUE SUB: 41228-95E00-000	SPRING, TILT LOCK LEVER	1	-
19-2	DISCONTINUE SUB: 41228-90J00-000	SPRING, TILT LOCK LEVER	1	-	MODEL:01%09
20	41230-95E00-000	LINK, TILT LOCK LEVER	1	Rp199.000
21	41233-95E10-000	BRACKET, TILT LOCK SPRING	1	Rp81.000
22	09160-06082-000	WASHER (6.5X13X1.0)	1	Rp10.500
23	09125-06063-000	SCREW (6X10)	1	Rp15.000
24	09140-10032-000	NUT	1	Rp15.000
25	09204-01006-000	PIN, COTTER	1	Rp14.000
26	09440-19028-000	SPRING	1	Rp24.500
27	43770-99E03-000 SUB: 43770-99E00-000	ADJUSTER ASSY, STEERING	1	Rp3.821.000	DF60TH,70TH,70WTH
