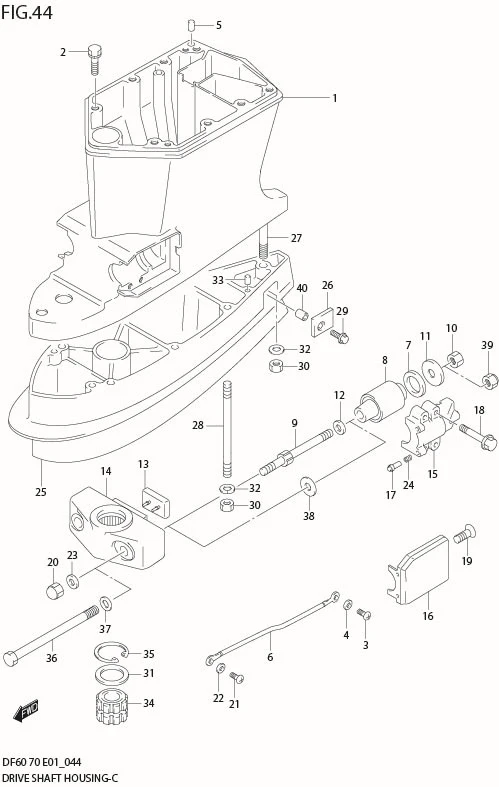

FIG 44 DRIVE SHAFT HOUSING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	52111-99E03-0EP	HOUSING, DRIVE SHAFT (BLACK)	1	Rp4.285.500	DF60:971962%MODEL:05
1-1	DISCONTINUE SUB: 52111-99E00-0EP	HOUSING, DRIVE SHAFT (BLACK)	1	-	!52111-99E01-0EP
1-3	52111-99E10-0EP	HOUSING, DRIVE SHAFT (BLACK)	1	Rp3.878.500	DF60:510599%
2-1	09117-10034-000	BOLT (10X45)	8	-
2-2	09117-10058-000	BOLT (10X45)	8	Rp31.000	MODEL:05%09
3	09125-05050-000 SUB: 29125-93J10-000	SCREW (5X8)	1	Rp14.000	?09125-05050
4	DISCONTINUE SUB: 09161-05114-000	WASHER (5.2X11X1.0)	1	-	%MODEL:00
5	09202-08006-000	PIN, KNOCK	2	Rp27.000
6	36894-95201-000	LEAD (MOUNT BRKT TO HSG)	1	Rp110.500
7	DISCONTINUE SUB: 54121-87D00-000	STOPPER	2	-
8	54160-87E11-000	MOUNT, LOWER	2	Rp874.000
9	54166-87E00-000	BOLT, LOWER MOUNT	2	-	DF60:%421094
10	DISCONTINUE SUB: 09140-12029-000	NUT	2	-	DF60:%421094
11-2	09160-12112-000	WASHER (12X40X3.0)	2	Rp41.000	DF60:510198%
11-1	DISCONTINUE SUB: 09160-12065-000	WASHER (12.2X40X3.0)	2	-
12	09160-12066-000	WASHER (12.5X22X2.5)	2	Rp13.500	DF60:%421094
13-1	54151-99E00-000 SUB: 54151-94400-000	MOUNT, LOWER THRUST	1	Rp56.500
13-2	54151-99E00-000	MOUNT, LOWER THRUST	1	Rp56.500	MODEL:06%09
14-1	DISCONTINUE SUB: 54211-87E00-0EP	BRACKET, LOWER MOUNT (BLACK)	1	-	!54211-87E01-0EP
14-2	54211-87E02-0EP	BRACKET, LOWER MOUNT (BLACK)	1	-	DF60:031758%421094
14-3	54211-87E03-0EP	BRACKET, LOWER MOUNT (BLACK)	1	Rp1.356.000	DF60:421095%
15-1	54221-87E01-0EP	COVER, LOWER MOUNT (BLACK)	2	Rp339.000	DF60:%510598
15-2	54221-99E10-0EP	COVER, LOWER MOUNT (BLACK)	2	Rp333.000	DF60:510599%
16	54222-87E02-0EP	CAP, LOWER MOUNT COVER (BLACK)	2	Rp307.000	DF60:%510598
17	54224-87E00-000	PIN	4	Rp16.000	DF60:%510598
18-2	09116-10176-000 SUB: 09116-10139-000	BOLT (10X44) (W/WASHER)	4	Rp100.000	DF60:510599%
18-1	09117-08056-XC0 SUB: 09117-08056-000	BOLT (8X40)	8	Rp184.500	DF60:%510598
19	09126-06008-000	SCREW (6X16)	2	Rp20.500	DF60:%510598
20-1	09145-12004-XC0 SUB: 09145-12004-000	NUT	2	Rp31.500	MODEL:98
20-2	09159-12014-000	NUT	2	Rp37.000	DF60:971001%421094
21-1	09125-06063-000	SCREW (6X10)	1	Rp15.000
21-2	09125-05050-000 SUB: 29125-93J10-000	SCREW (5X8)	1	Rp14.000	DF60:031758%MODEL:09
22	09161-06120-000	WASHER (6.3X12.5X1.0)	1	Rp10.500	%MODEL:00
23	09160-12066-000	WASHER (12.5X22X2.5)	2	Rp13.500	DF60:%421094
24	09440-07066-000	SPRING	4	Rp20.000	DF60:%510598
25	DISCONTINUE SUB: 52131-99E01-0EP	CASE, EXTENSION (BLACK)	1	-	TYPE:X
26	55320-95311-000	ZINC, PROTECTION	1	Rp119.500	TYPE:X
27	DISCONTINUE SUB: 09108-10026-000	BOLT, STUD	1	-	TYPE:X
28	09108-10115-000	BOLT, STUD	6	Rp198.000	TYPE:X
29	DISCONTINUE SUB: 09116-06099-000	BOLT (6X35)	1	-	TYPE:X
30	09140-10031-000 SUB: 29141-93J20-000	NUT	6	Rp14.500	TYPE:X
31	DISCONTINUE SUB: 09160-28020-000	WASHER (28X40X1.5)	1	-	TYPE:X
32-1	09162-10005-000	WASHER (10.2X18.4X2.5)	6	Rp13.000	TYPE:X
32-2	09160-10141-000	WASHER (10.5X19X2)	6	Rp27.000	TYPE:X MODEL:08%09
33	09202-08006-000	PIN, KNOCK	2	Rp27.000	TYPE:X
34	57130-87E02-000 SUB: 57130-87E01-000	BUSH, DRIVE SHAFT	1	Rp413.500	TYPE:X
35	09381-40005-000	CIRCLIP	1	Rp42.000	TYPE:X
36	54166-99E01-000	BOLT, LOWER MOUNT	2	Rp355.500	DF60:421095%
37-1	09160-12066-000	WASHER (12.5X22X2.5)	2	Rp13.500	DF60:421095%
37-2	54114-90J01-000 SUB: 54114-90J00-000	WASHER	2	Rp31.500	DF60:510198%
38	09160-12113-000	WASHER (12.5X30X2.5)	2	Rp23.500	DF60:421095%
39	09159-12014-000	NUT	2	Rp37.000	DF60:421095%
40	55323-99E00-000	SPACER, ZINC PROTECTION	1	Rp53.000	TYPE:X
