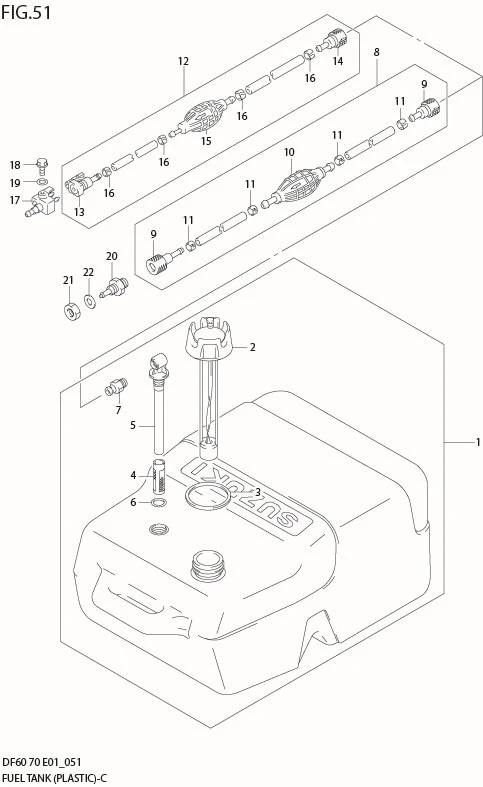

FIG 51 FUEL TANK (PLASTIC)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65000-94L10-000 SUB: 65000-95D01-000	TANK ASSY, FUEL (25L)	1	Rp1.476.000
2	DISCONTINUE SUB: 65520-95D00-000	?CAP ASSY, FUEL TANK	1	-
3	65561-95D00-000	?GASKET, TANK CAP	1	Rp18.000
4	65831-95D00-000	?FILTER, OUTLET	1	Rp90.000
5	DISCONTINUE SUB: 65890-95D00-000	?OUTLET ASSY	1	-
6	DISCONTINUE SUB: 65892-95D00-000	?O RING, FUEL OUTLET	1	-
7	65740-95D01-000	?PLUG, FUEL CONNECTOR	1	Rp375.500
8	65700-955A0-000 SUB: 65700-95516-000	HOSE, FUEL	1	Rp1.722.500	MODEL:98%00
9	65750-95501-000 SUB: 65750-95500-000	?SOCKET	2	Rp374.000	MODEL:98%00
10	DISCONTINUE SUB: 65770-95504-000	?PUMP, SQUEEZE	1	-	MODEL:98%00
11	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-	MODEL:98%00
12	65700-87J16-000 SUB: 65700-87J11-000	HOSE, FUEL	1	Rp1.189.000	MODEL:01%09
13	65750-87J11-000	?SOCKET, FUEL HOSE	1	Rp250.500	MODEL:01%09
14	65750-95501-000 SUB: 65750-95500-000	?SOCKET, FUEL HOSE	1	Rp374.000	MODEL:01%09
15	DISCONTINUE SUB: 65770-95504-000	?PUMP, SQUEEZE	1	-	MODEL:01%09
16	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-	MODEL:01%09
17	DISCONTINUE SUB: 65720-986B0-000	PLUG, FUEL CONNECTOR	1	-	MODLE:01%09
18	09103-06237-000	BOLT (6X12.5)	1	Rp21.500	MODEL:01%09
19	09160-06085-000	WASHER	1	Rp9.500	MODEL:01%09
20	65720-95512-000 SUB: 65720-95511-000	PLUG, FUEL CONNECTOR	1	Rp441.500	%MODEL:00
21	DISCONTINUE SUB: 09140-12038-000	NUT	1	-	%MODEL:00
22	DISCONTINUE SUB: 08322-01127-000	WASHER	1	-	%MODEL:00
