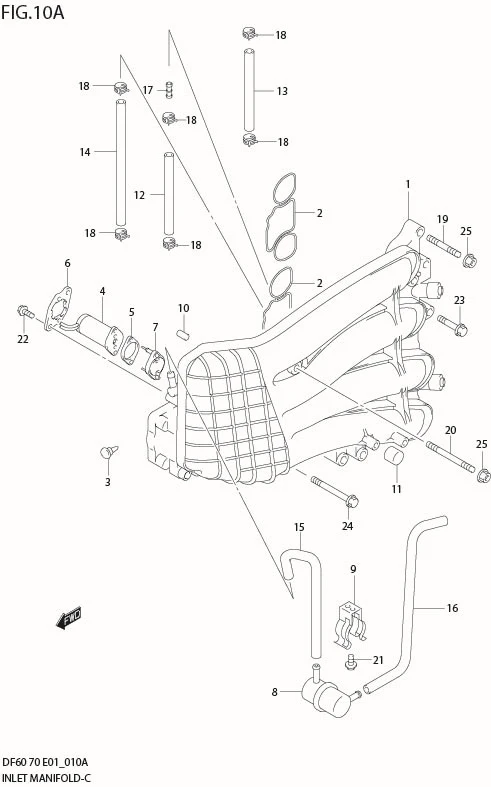

FIG 10A INLET MANIFOLD (DF60,70 MODEL:02%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13110-99E10-000	MANIFOLD, INTAKE	1	Rp4.729.500
2	13119-99E10-000	GASKET, INTAKE MANIFOLD	2	Rp222.500
3	DISCONTINUE SUB: 13350-99E00-000	SCREW SET, AIR BYPASS	1	-
4	13450-99E01-000 SUB: 13450-99E00-000	SOLENOID, IAC	1	Rp2.036.000
5	13451-99E11-000	SEAT, RUBBER ISC	1	Rp21.000
6	13452-99E11-000	FLANGE, IAC	1	Rp31.000
7	13453-99E10-000	HOLDER, IAC	1	Rp45.500
8	DISCONTINUE SUB: 18145-84380-000	SILENCER, ISC VALVE	1	-
9	18146-87J00-000	CLAMP, ISC SILENCER	1	Rp65.500	?18146-84380
10	09202-07001-000	PIN	2	Rp8.000
11	09329-12004-000	CUSHION	2	Rp12.000
12	09352-50006-600 SUB: 09352-50903-600	HOSE (2 WAY TO SEP)	1	Rp46.000	L:600!200
13	09352-50006-600 SUB: 09352-50903-600	HOSE (HOLDER TO 2 WAY)	1	Rp46.000	L:600!200
14	09352-50006-600 SUB: 09352-50903-600	HOSE (SEP TO OILPAN)	1	Rp46.000	L:600!470
15	09352-70121-600	HOSE (SIL TO VALVE)	1	Rp155.000	L:600!440
16	09352-70121-00B	HOSE (ISC TO SIL)	1	Rp155.000	L:2000!620
17	09364-06005-000 SUB: 09364B06005N000	UNION, 2 WAY	1	Rp8.000
18	09401-08413-000 SUB: 17814-90J00-000	CLIP	6	Rp19.500	?09401-08411
19	01421-08357-000	BOLT, STUD	2	Rp27.000
20	01421-08457-000	BOLT, STUD	1	Rp30.000
21	01550-06127-000	BOLT	1	Rp17.000
22	01550-06167-000	BOLT	2	Rp16.500
23	01550-08407-000	BOLT	7	Rp24.000
24	DISCONTINUE SUB: 01550-08757-000	BOLT	1	-
25	08316-10087-000	NUT	3	Rp17.000
